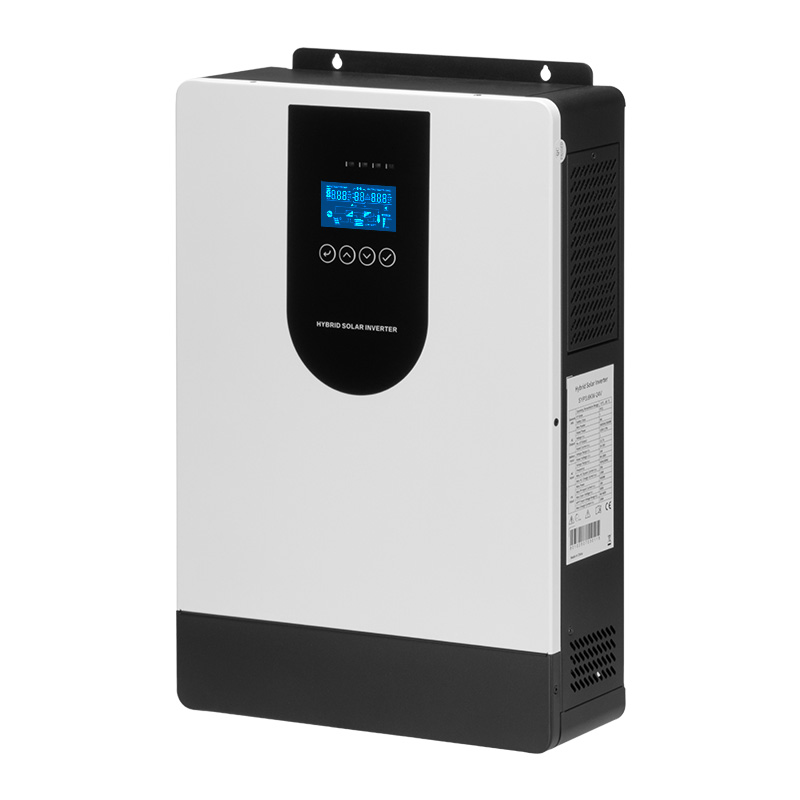

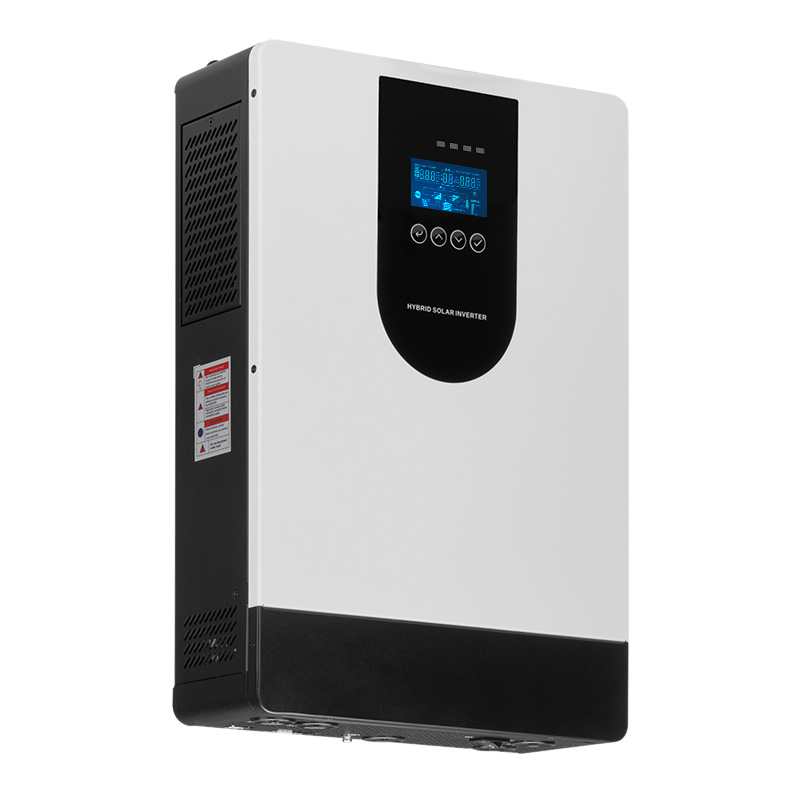

Solar Hybrid Inverter – SYP Series is designed for superior performance with guaranteed price, quality, and service.
As a leading manufacturer, we export globally, earning the trust of distributors and dealers worldwide. Our inverters ensure high efficiency and reliability for various energy solutions.
| Model | SYP-4.0KW/24V |
| AC Input | |
| Nominal Voltage | 208 / 220 / 230 / 240 VAC; L+N+E |
| Acceptable Voltage Range | 90-280VAC (normal mode); 170-280VAC (UPS mode) |
| Frequency | 50/60 Hz (Auto Sensing) |
| AC Output | |
| Rated Capacity | 4.0kW |
| Surge Power | 7200VA |
| Voltage | 208 / 220 / 230 / 240 VAC; |
| Power Fact | 1 |
| Frequency | 50/60Hz |
| Swith Time | 10ms (normal mode); 10ms (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s@102%~110%load; 10s@110%~130%6 load;3s@130%~150%load; 0.2s@>150%load |
| Max. Efficiency (Battery Mode) | 92.7%@24VDC |
| Parallel Capacity | NA |
| Charger ( PV / AC ) | |
| Solar Charge Type | MPPT |
| Max PV Input Current / Power | 18A / 5000W |
| MPPT Range@Operating Voltage | 40~450VDC |
| Max PV Open Circuit Voltage | 500VDC |
| Max PV Charge Current | 100A |
| Max AC Charge Current | 100A |
| Max Charge Current (PV+AC) | 100A |
| Battery | |
| Rated Voltage | 24VDC |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | USB |
| Monitoring | RS485 / RS232 / USB / Dry Contact |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10 ~ 50ºC |
| Relative Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Net Weight | 6.2kg |
| Dimensions | 435*285*98mm |
