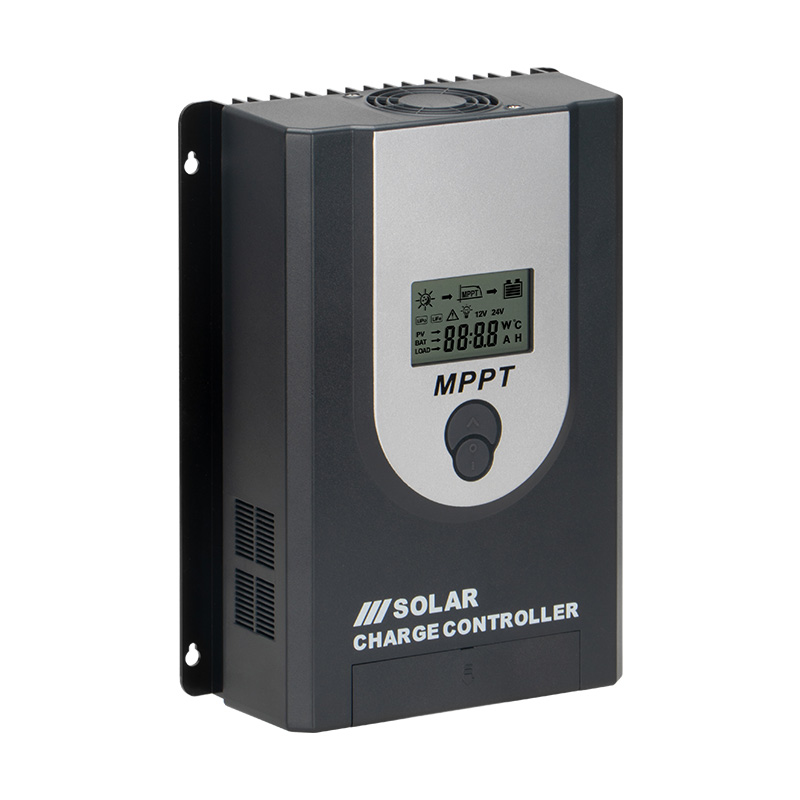

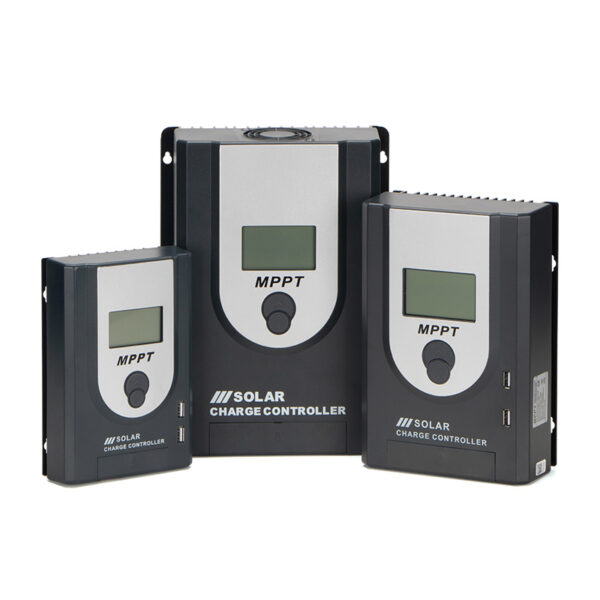

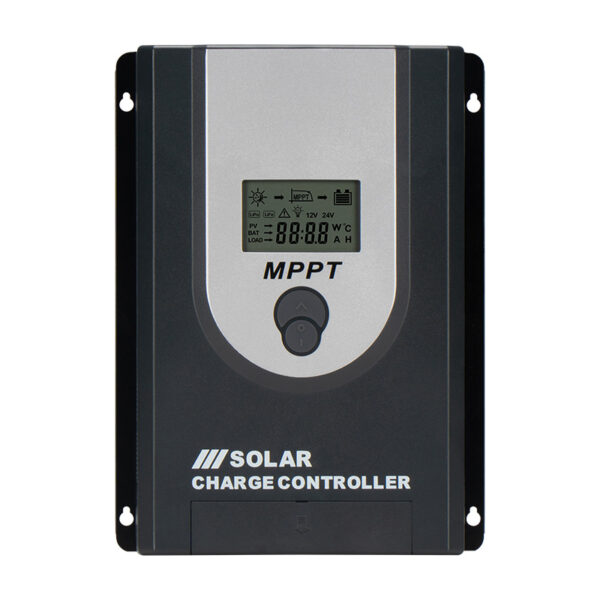

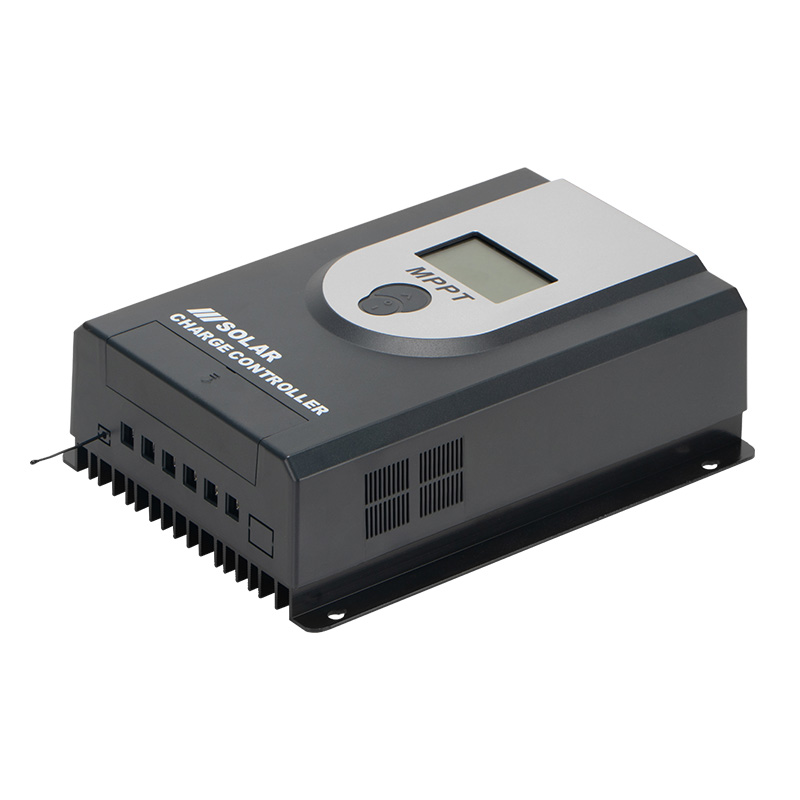

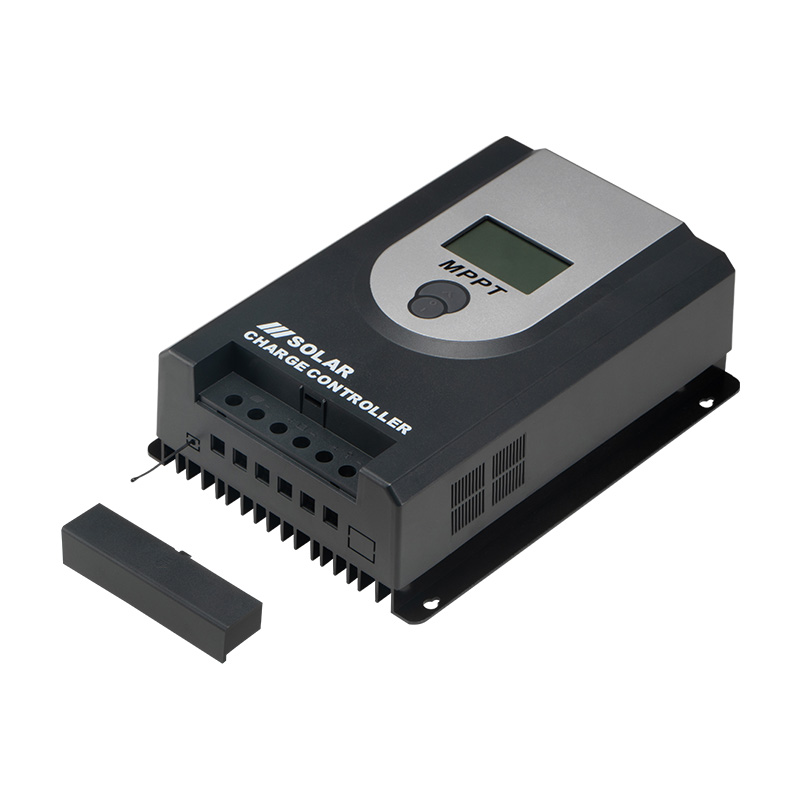

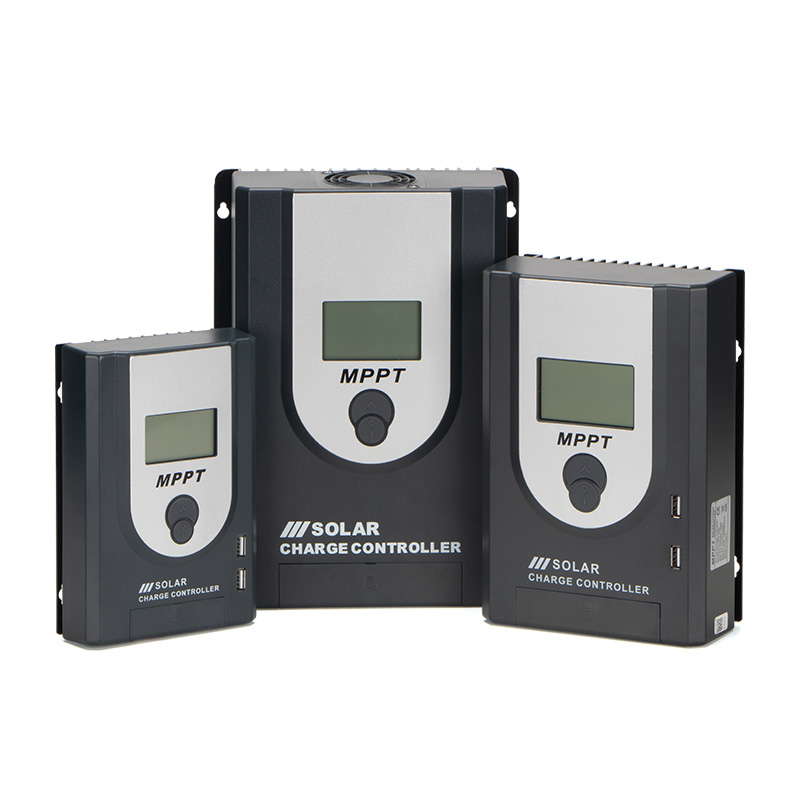

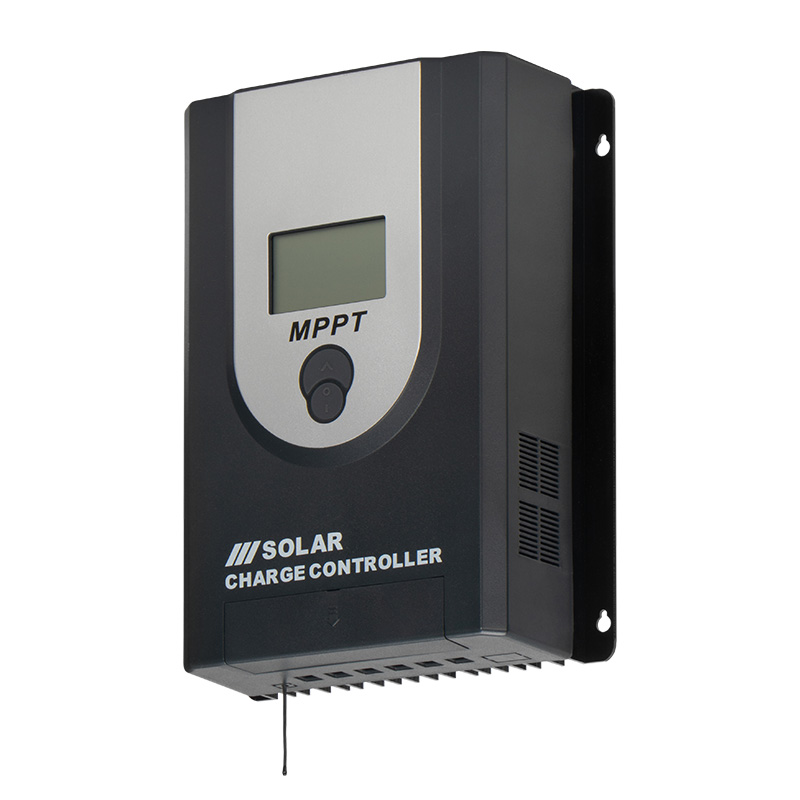

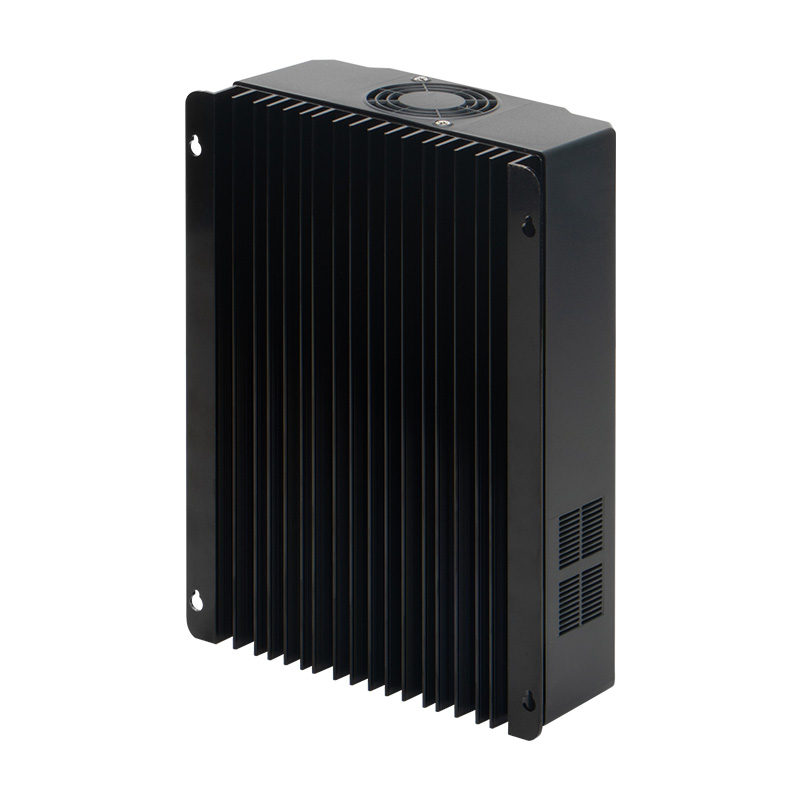

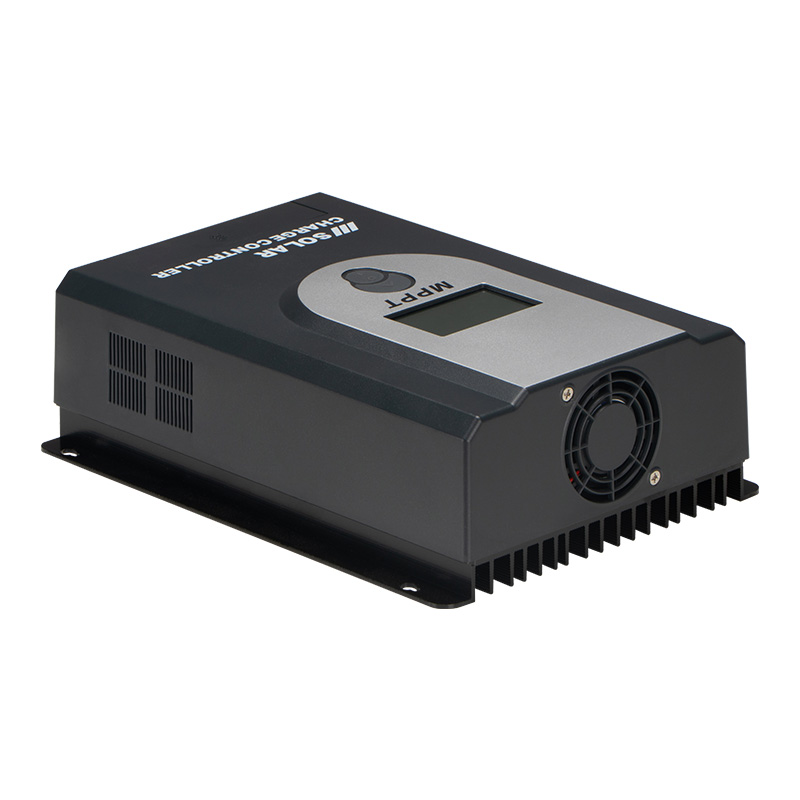

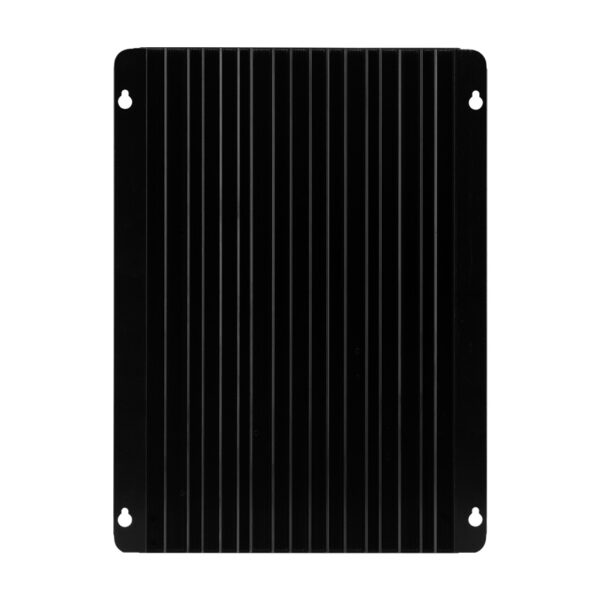

MPPT Solar Charge Controller – MPJ Series

Model: MPJ

The MPJ Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.

It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

MPJ Series MPPT Solar Charge Controller – 10A-60A | 12V/24V Auto-Sensing | Smart Energy Harvesting Solution

Discover the MPJ series MPPT solar charge controller (10A-60A, 12V/24V auto). Featuring ultra-high 98% efficiency, Bluetooth monitoring, and military-grade protection for RV, marine & off-grid solar systems.

MPPT Solar Charge Controller - MPJ Series

Advanced MPPT Technology for Maximum Solar Harvest

The MPJ series MPPT solar charge controller leverages industry-leading Maximum Power Point Tracking technology to extract 30% more energy from your solar panels compared to conventional PWM controllers. With automatic 12V/24V detection and wide 10A-60A current range, it’s the perfect solution for diverse solar applications.

Key Features & Benefits

✔ 98% Peak Conversion Efficiency – Maximizes energy harvest in all weather conditions
✔ Smart Bluetooth Monitoring – Real-time tracking via mobile app (iOS/Android)
✔ Military-Grade Protection – IP65 waterproof rating with overcharge/over-temperature protection
✔ Auto Voltage Detection – Seamlessly switches between 12V/24V systems
✔ Silent Operation – Fanless design with advanced heat dissipation

Ideal Applications

☀ RV & Marine Solar Systems
☀ Off-Grid Cabins & Tiny Homes
☀ Solar Street Lighting
☀ Agricultural Water Pumps
☀ Telecom Power Stations

Special Offer!

🔹 Free Mobile App with all controllers
🔹 Volume Discounts available for bulk orders



<table style=”height: 565px;” width=”790″>ModelMPJ20MPJ40<td colspan=”2″ width=”160″>MPJ60Max. PV Open Circuit Voltage<60Vth=”160″><100V<100VRated Charge Current15A20A30A40A50A60APV Max. Input Power12V195W260W390W520W650W780W24V390W520W780W1040W13000W1560WSystem Voltage12V/24V AutoRated Discharge Current10A20A30AOwn Consumption≤50mAMPPT Highest Accuracy99%Max. Charging Efficiency97%Charging Control ModeMPPTFloat Charge13.8V/27.6V/41.4V/55.2VAbsorption Charge14.4V/28.8V/43.2V/57.6VEqualization Charge14.6V/29.2V/43.8V/58.4VLoad Disconnection10.8V/21.6V/32.4V/43.2VLoad Reconnection12.6V/25.2V/37.8V/50.4VBattery TypeExcept LiCoMnNiO2GEL, SLD, FLD and User(default), Lithium batteries customization
