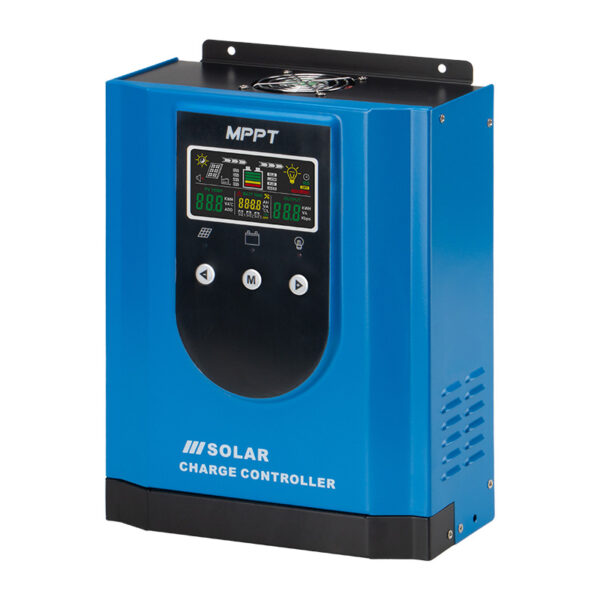

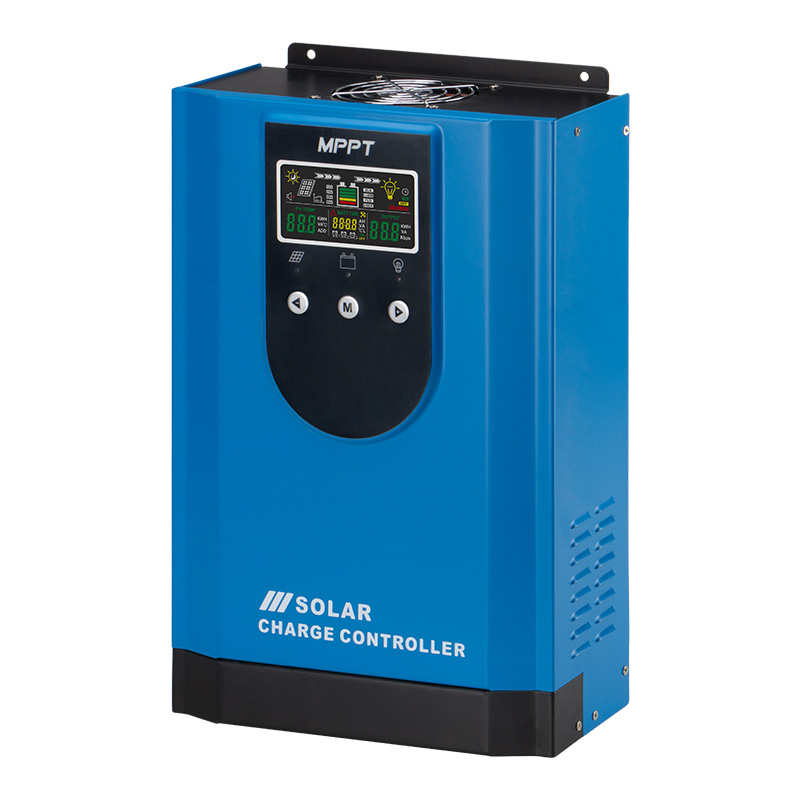

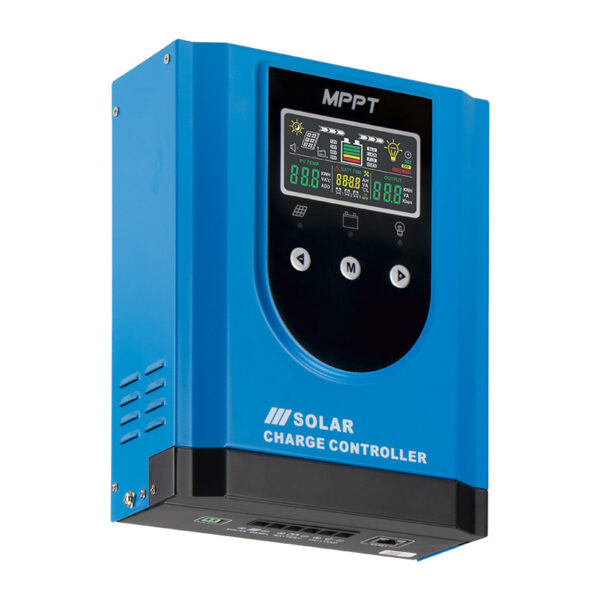

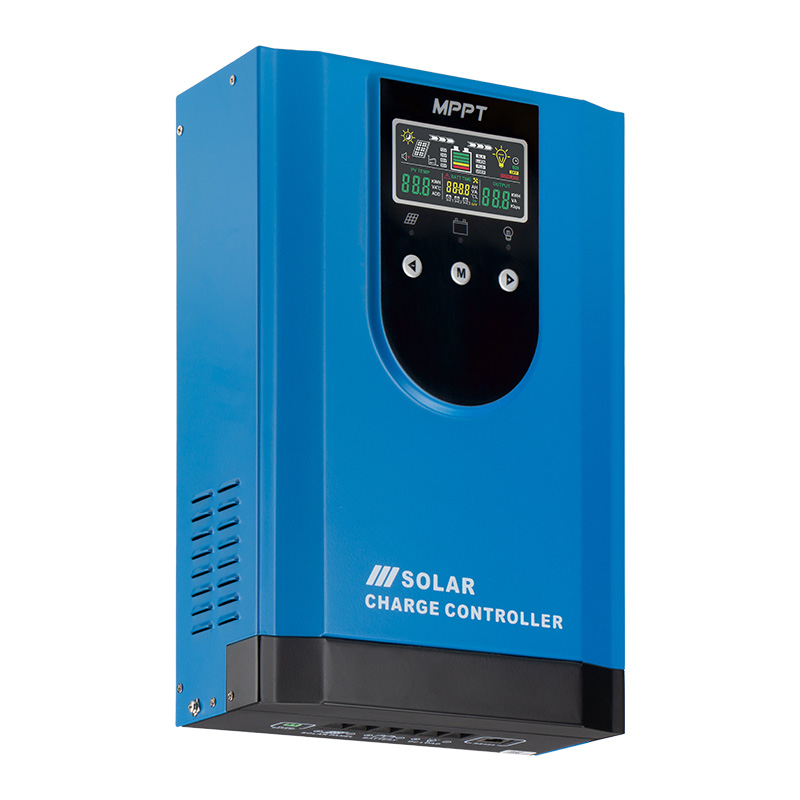

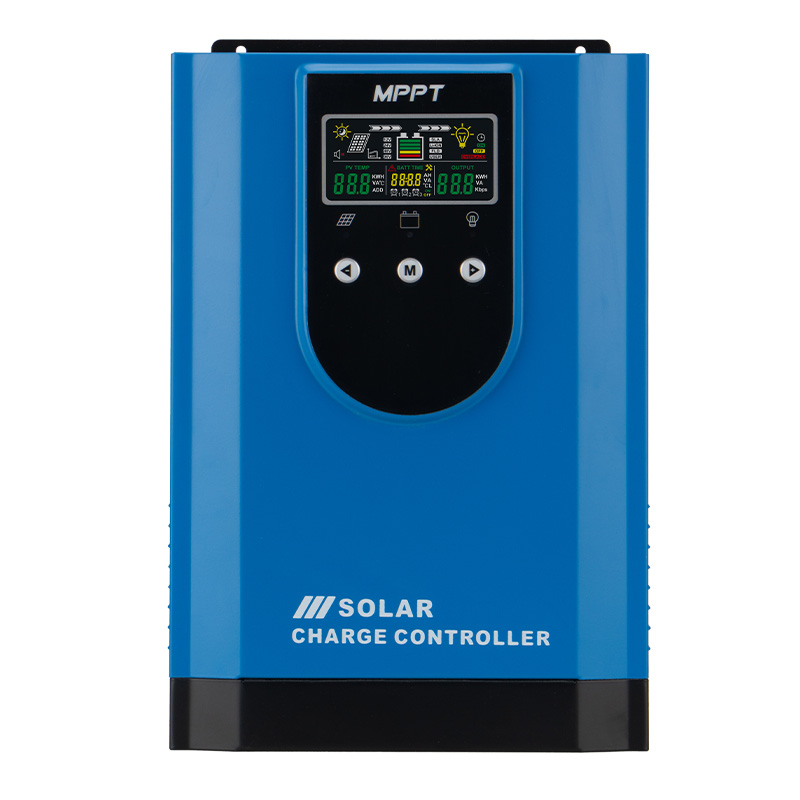

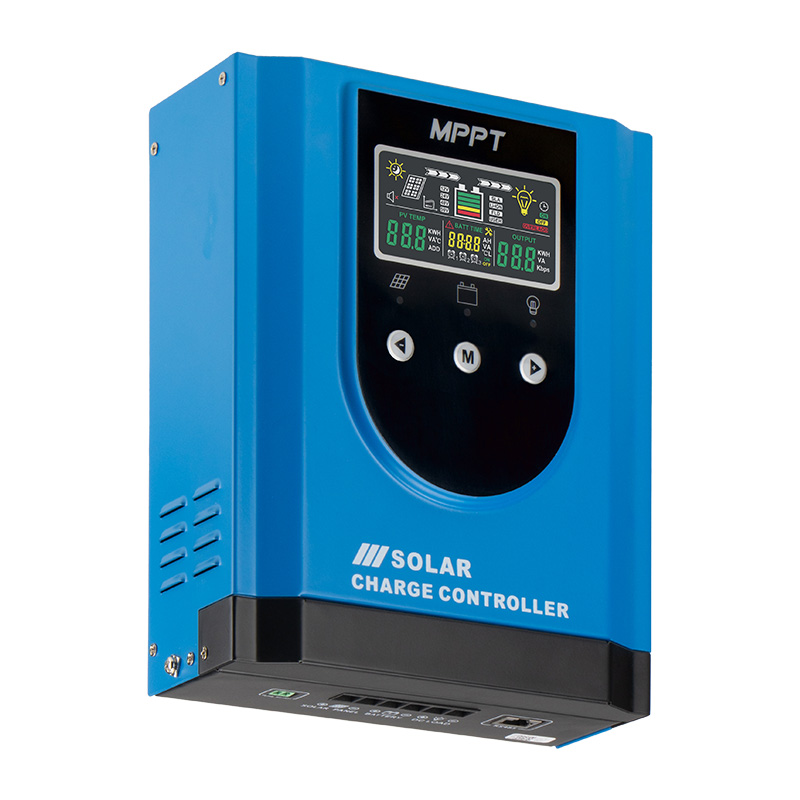

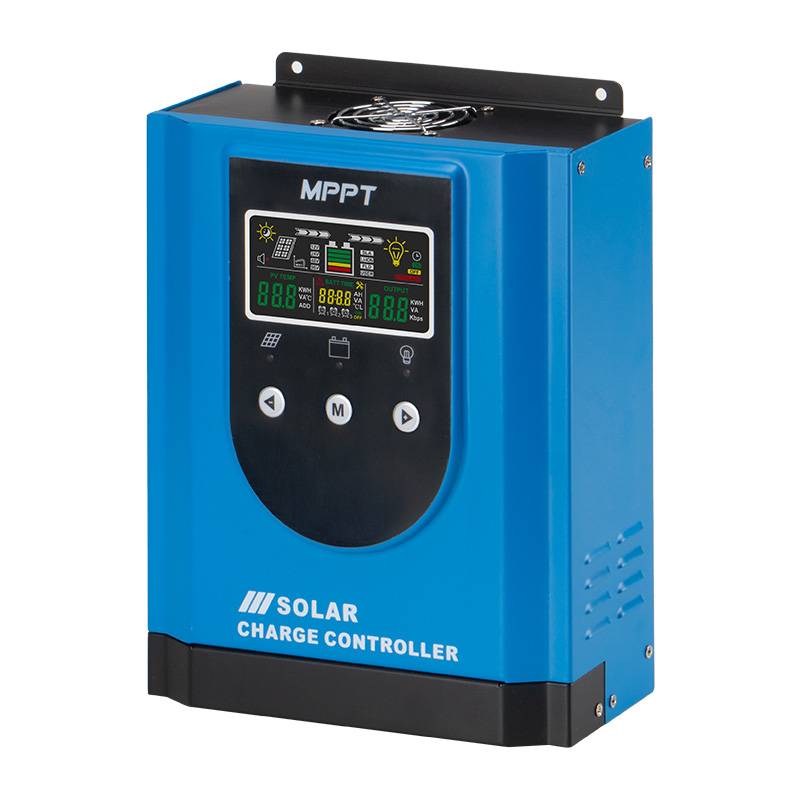

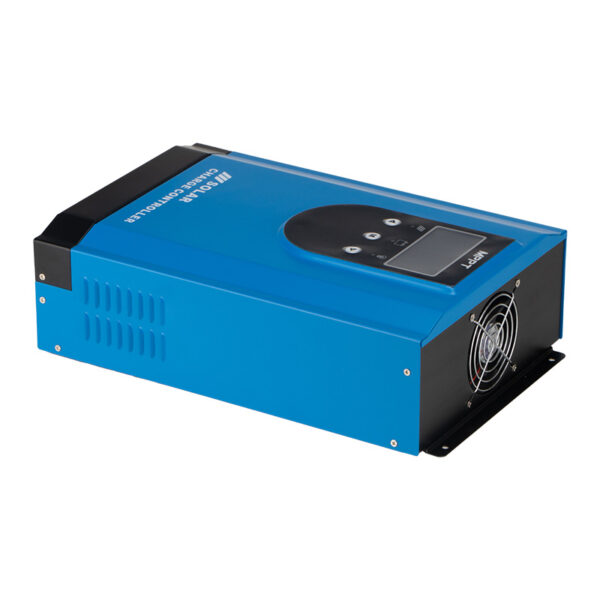

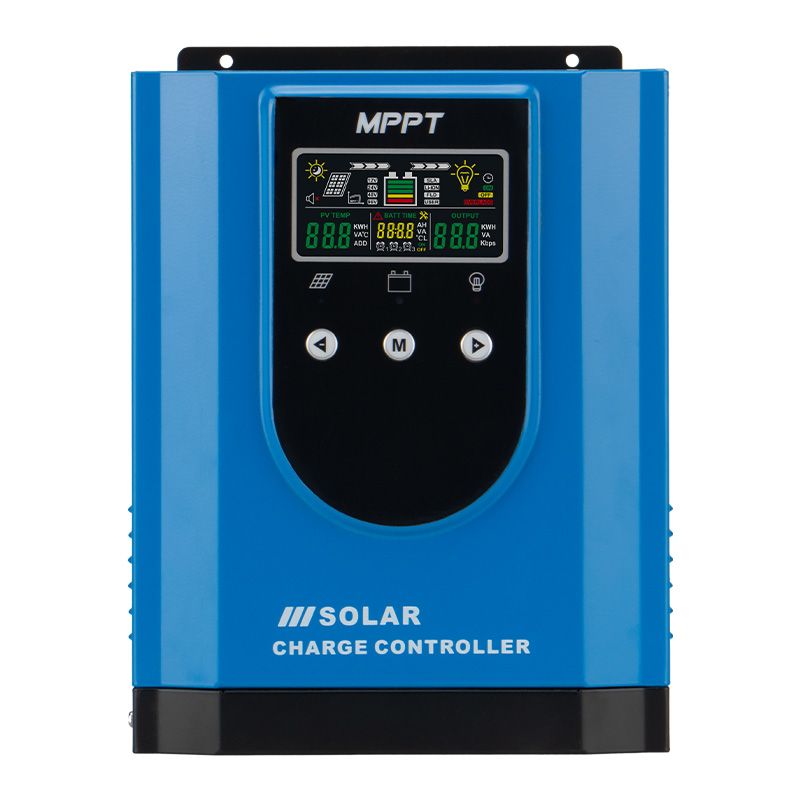

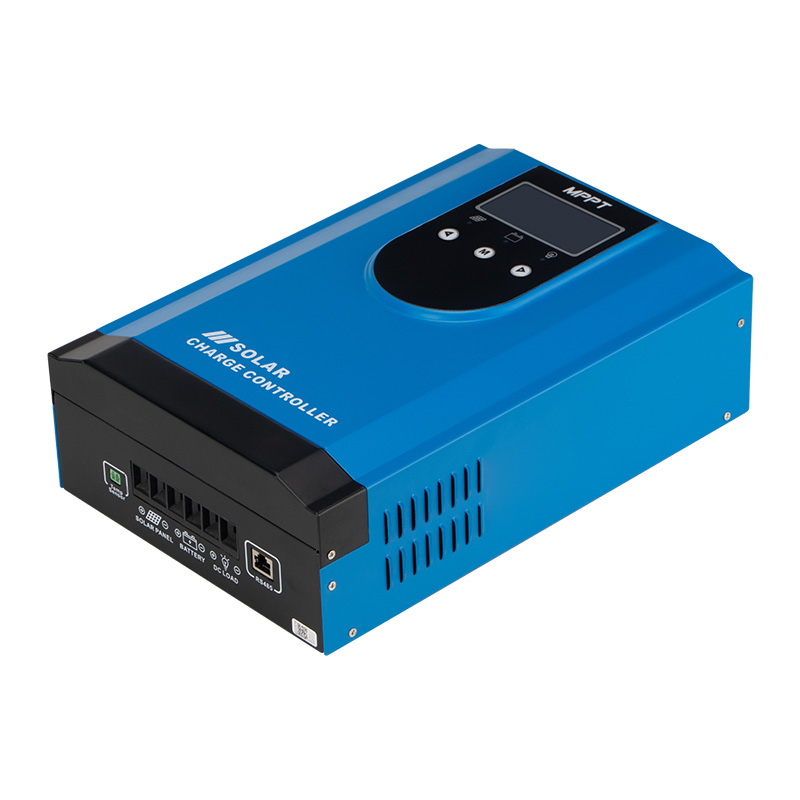

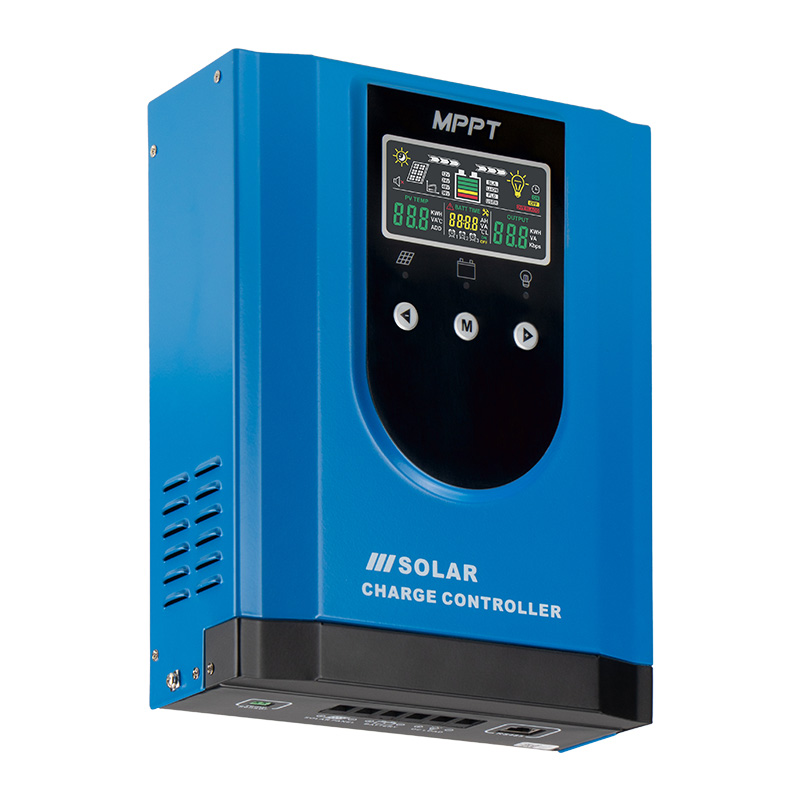

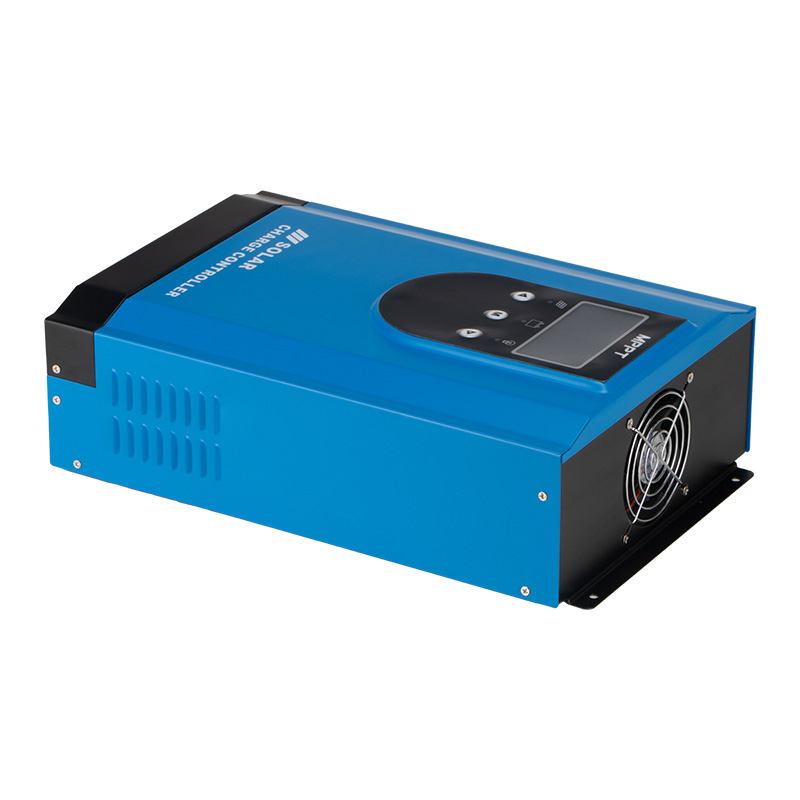

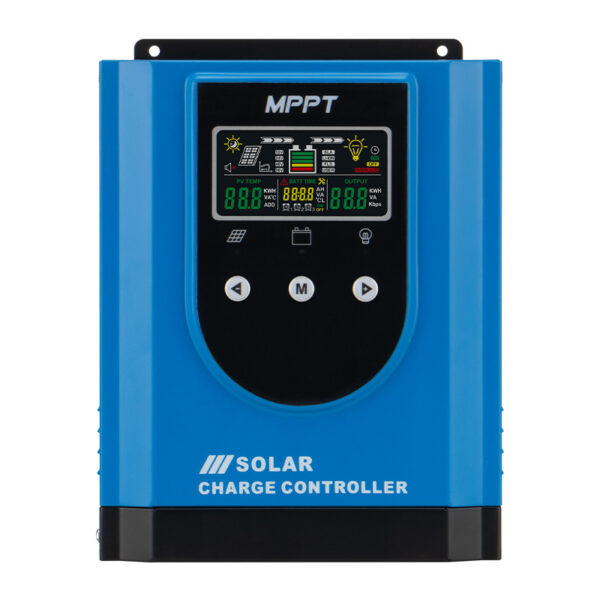

MPPT Solar Charge Controller – MPK2 Series

Model: MPK2

The MPK2 Series MPPT Solar Charge Controller is designed for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.

Ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

MPK2 Series MPPT Solar Charge Controller 30A-100A | 12V/24V/48V Auto – High Efficiency & Wide Compatibility

Boost solar energy efficiency with our MPPT solar charge controller (30A-100A, 12V/24V/48V auto). Perfect for off-grid systems, RVs, boats & more. Competitive pricing & reliable performance.

MPPT-Solar-Charge-Controller-MPK2-Series

MPPT Solar Charge Controller – 30A to 100A | 12V/24V/48V Auto-Sensing

Maximize your solar power system’s efficiency with our high-performance MPPT solar charge controller. Designed for off-grid solar setups, RVs, marine applications, and home solar systems, this controller ensures optimal energy harvesting with advanced Maximum Power Point Tracking (MPPT) technology.

Key Features & Benefits

✅ Wide Compatibility – Automatically detects and adjusts to 12V, 24V, or 48V battery systems.
✅ High Efficiency (Up to 98%) – MPPT technology extracts 30% more energy than PWM controllers.
✅ Multiple Protection Features – Includes overcharge, over-discharge, short-circuit, and reverse polarity protection.
✅ Durable & Reliable – Industrial-grade design with heat dissipation & waterproof casing (IP32 rated).
✅ LCD Display & Remote Monitoring – Real-time data on voltage, current, and charging status (optional Bluetooth/WiFi module available).

Ideal Applications

  • Off-grid solar systems (cabins, farms, telecom stations)

  • RV & marine solar setups

  • Solar street lights & irrigation systems

  • Hybrid wind-solar power systems

Why Choose Our MPPT Charge Controller?

✔ Competitive Pricing – Direct factory supply, no middleman markup.
✔ Customization Options – OEM/ODM support for bulk orders.
✔ Certified Quality – CE, RoHS, and ISO 9001 certified.
✔ Fast Shipping & Support – Global logistics network & 24/7 technical assistance.

Model MPK2-40 MPK2-60 MPK2-80
Max. PV Open Circuit Voltage 150V (at the lowest temperature),
138V (at a standard temperature of 25°)
Min. PV Voltage 20V/40V/60V/80V
Rated Charge Current 30A 40A 50A 60A 80A 100A
PV Max. Input Power 12V 390W 520W 650W 780W 1040W 1300W
24V 780W 1040W 1300W 1560W 2080W 2600W
36V 1170W 1560W 1950W 2340W 3120W 3900W
48V 1560W 2080W 2600W 3120W 4160W 5200W
System Voltage 12V/24V/36V/48V Auto
Rated Discharge Current 20A 20A 30A 30A 40A 50A
Own Consumption ≤35A(48V)
MPPT Highest Accuracy 99%
Max. Charging Efficiency 97%
Charging Control Mode Multi-stage(MPPT, Absorption, Float, Equalization, CV)
Float Charge 13.8V/27.6V/41.4V/55.2V
Absorption Charge 14.4V/28.8V/43.2V/57.6V
Equalization Charge 14.6V/29.2V/43.8V/58.4V
Load Disconnection 10.8V/21.6V/32.4V/43.2V
Load Reconnection 12.6V/25.2V/37.8V/50.4V
Battery Type GEL, SLD, FLD and USER(default), Lithium batteries customization
3series 3.7V, 4 series 3.7V, 4series 3.2V, 5series 3.2V
