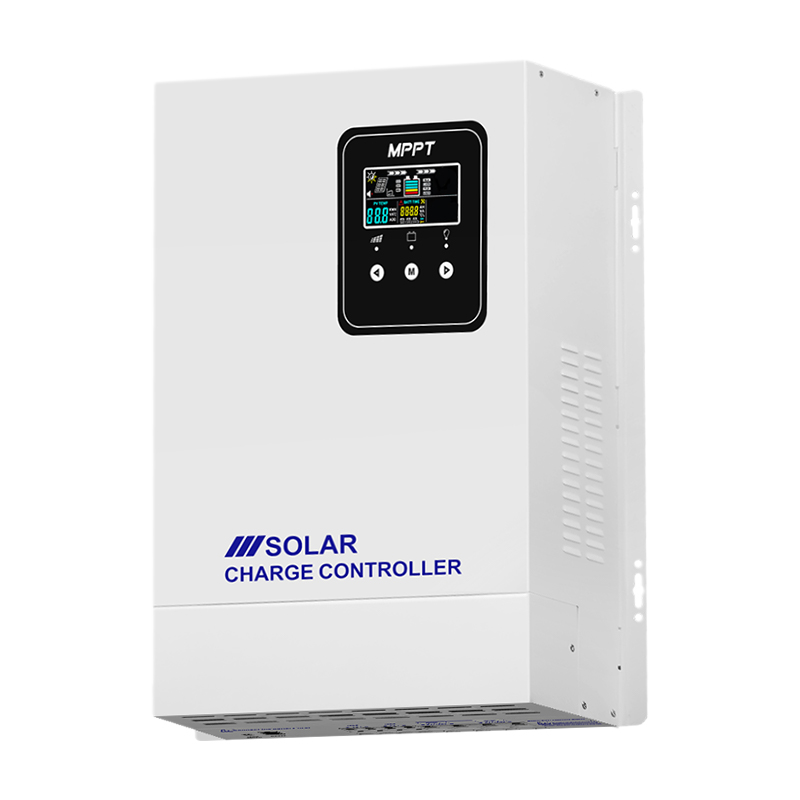

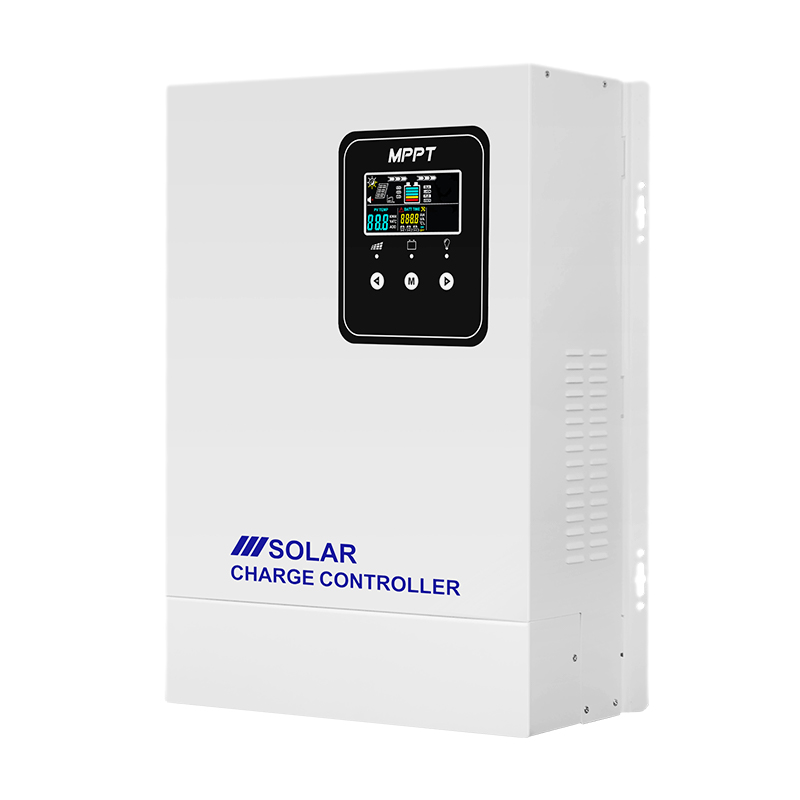

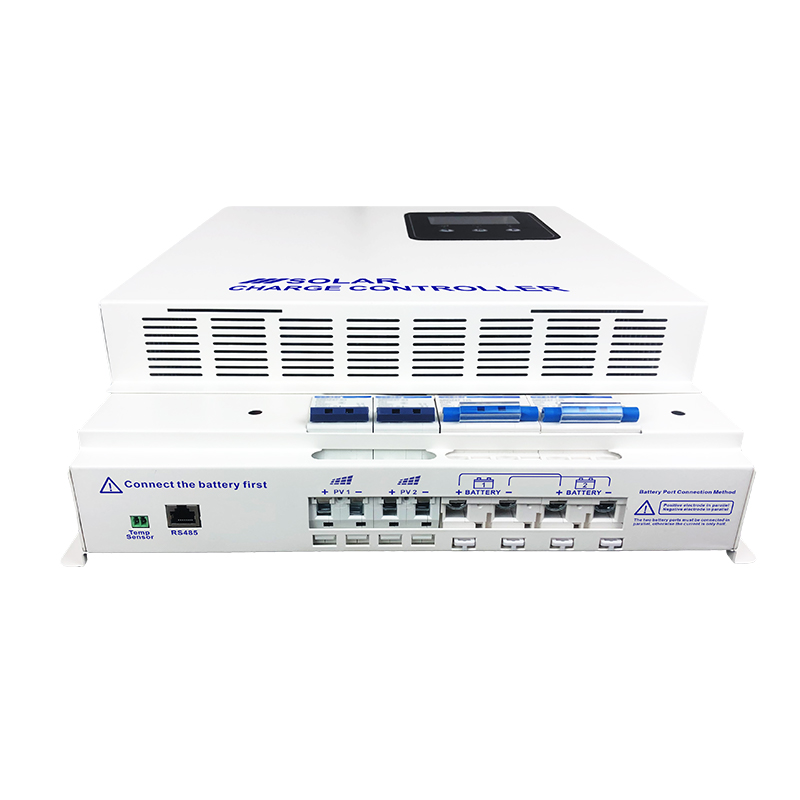

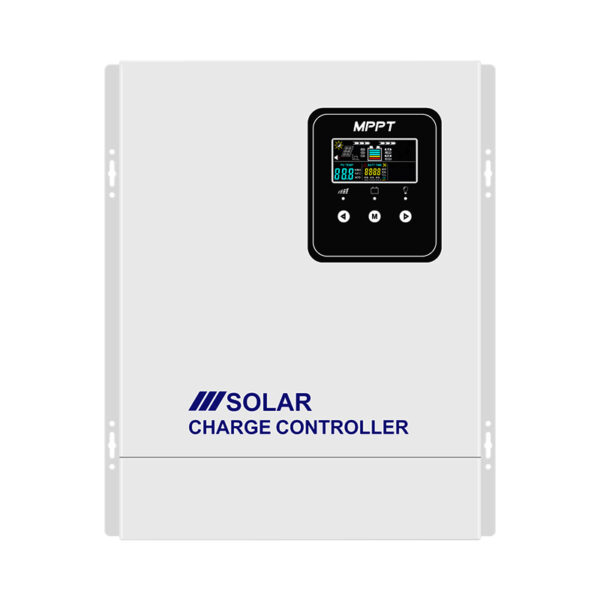

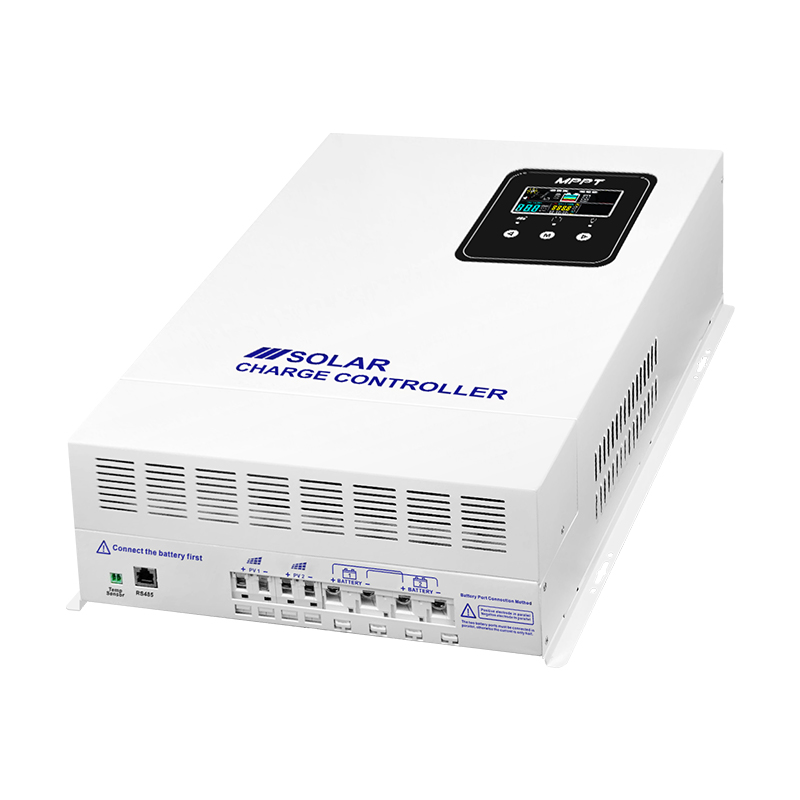

MPPT Solar Charge Controller – MPK200 Series

Model: MPK200

The MPK200 Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.

It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

MPK200 MPPT Solar Charge Controller (120A–200A, 12V/24V/48V Auto, Max PV Input 200V)
High-Power MPPT Controller for Commercial & Industrial Solar Applications

The MPK200 MPPT Solar Charge Controller is a heavy-duty, high-current controller designed for large-scale and mission-critical solar energy systems. Supporting up to 200V PV input and output currents of 120A to 200A, the MPK200 is built to deliver maximum power conversion efficiency for professional-grade solar projects.

MPPT Solar Charge Controller - MPK200 Series

Key Features:

  • High Output Capacity: Supports 120A, 160A and 200A models for large-scale solar systems.

  • Wide PV Input Range: Accepts up to 200V DC input, ideal for high-voltage PV arrays.

  • Auto System Voltage Recognition: Compatible with 12V, 24V, and 48V battery systems—automatically detected for plug-and-play setup.

  • Advanced MPPT Technology: Dynamic tracking efficiency up to 99.9%, maximizing solar harvest in all conditions.

  • Multiple Battery Support: Works with Lead-acid (GEL, AGM, Flooded) and Lithium (LiFePO4, Li-ion) battery types.

  • Smart Connectivity Options: RS485, CAN, Bluetooth, and WiFi (optional) for real-time remote monitoring and control.

  • Complete Safety Protection: Integrated safeguards against overcharge, over-discharge, reverse polarity, overload, and overheating.

Designed for:

  • Commercial solar power systems

  • Industrial-grade off-grid installations

  • Utility-scale solar projects

  • Solar-powered telecom base stations

  • Agricultural and mining operations

Built for Global Demands

With robust build quality and global compatibility, the MPK200 MPPT Controller is your reliable choice for high-current, high-voltage solar systems across diverse climates and industries.

Partner with us for scalable, high-performance solar power control. OEM & ODM services available for global distributors and system developers.

Model MPK200
Max. PV Open Circuit Voltage 200V (at the lowest temperature),
180V (at a standard temperature of 25°)
Min. PV Voltage 20V/40V/60V/80V
Rated Charge Current 120A 160A 200A
PV Array P1 P2 P1 P2 P1 P2
PV Max. Input Power 12V 780W 780W 1040W 1040W 1300W 1300W
24V 1560W 1560W 2080W 2080W 2600W 2600W
36V 2340W 2340W 3120W 3120W 3900W 3900W
48V 3120W 3120W 4160W 4160W 5200W 5200W
System Voltage 12V/24V/36V/48V Auto
Own Consumption ≤100A(48V)
MPPT Highest Accuracy 99%
Max. Charging Efficiency 97%
Charging Control Mode Multi-stage(MPPT, Absorption, Float, Equalization, CV)
Float Charge 13.8V/27.6V/41.4V/55.2V
Absorption Charge 14.4V/28.8V/43.2V/57.6V
Equalization Charge 14.6V/29.2V/43.8V/58.4V
Load Disconnection 10.8V/21.6V/32.4V/43.2V
Load Reconnection 12.6V/25.2V/37.8V/50.4V
Battery Type GEL, SLD, FLD and USER(default), Lithium batteries customization
3series 3.7V, 4 series 3.7V, 4series 3.2V, 5series 3.2V
