The MPK6 Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.
It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

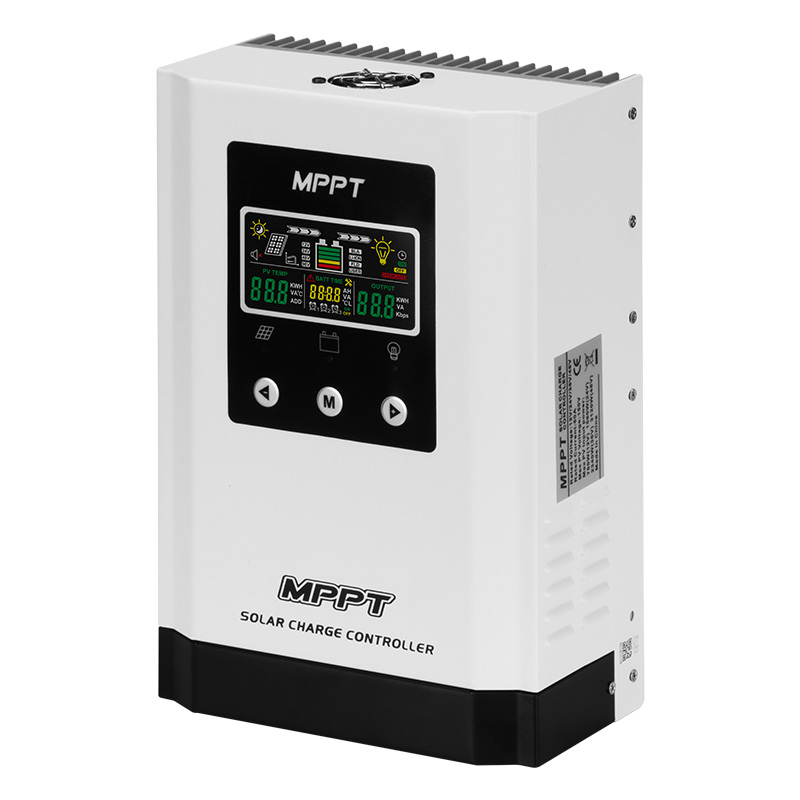

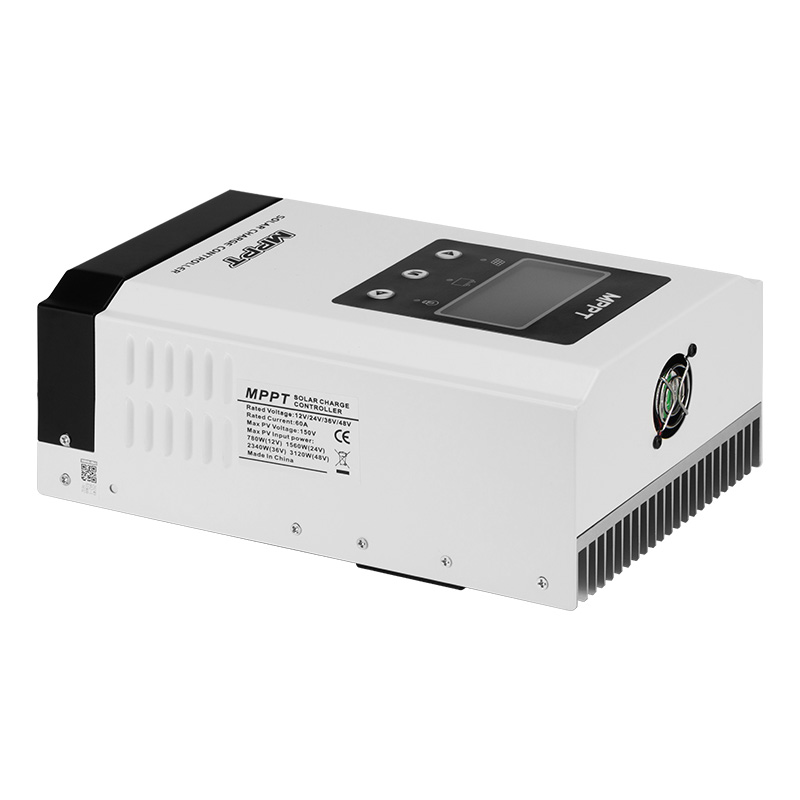

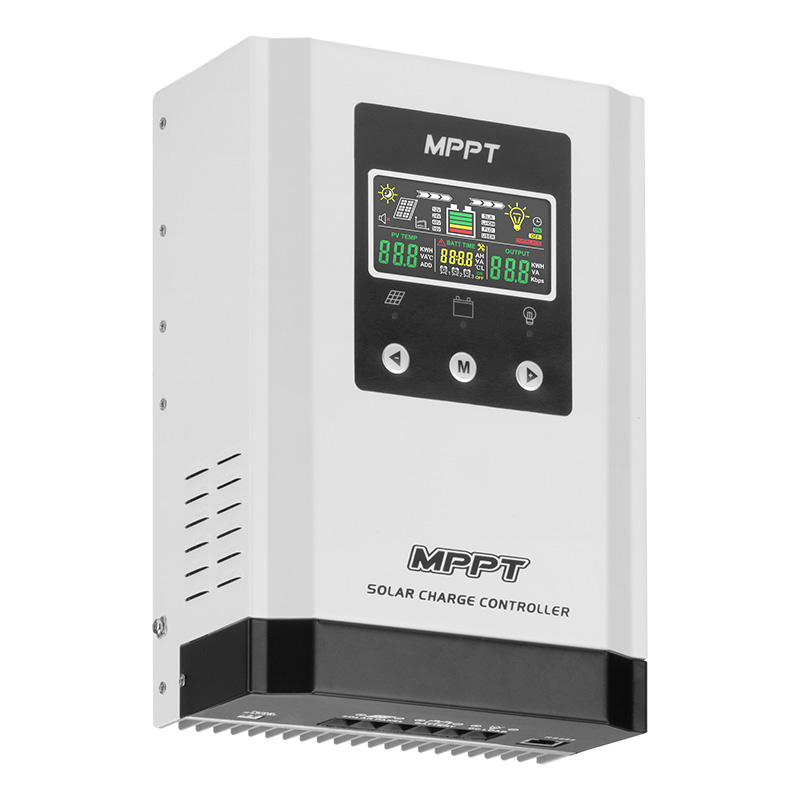

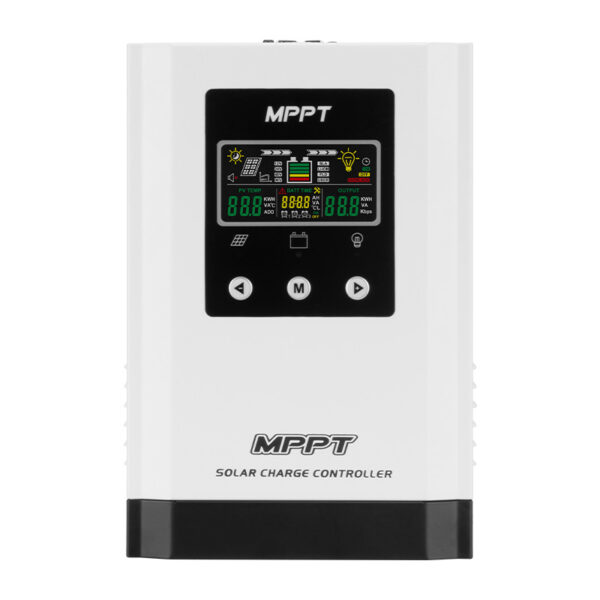

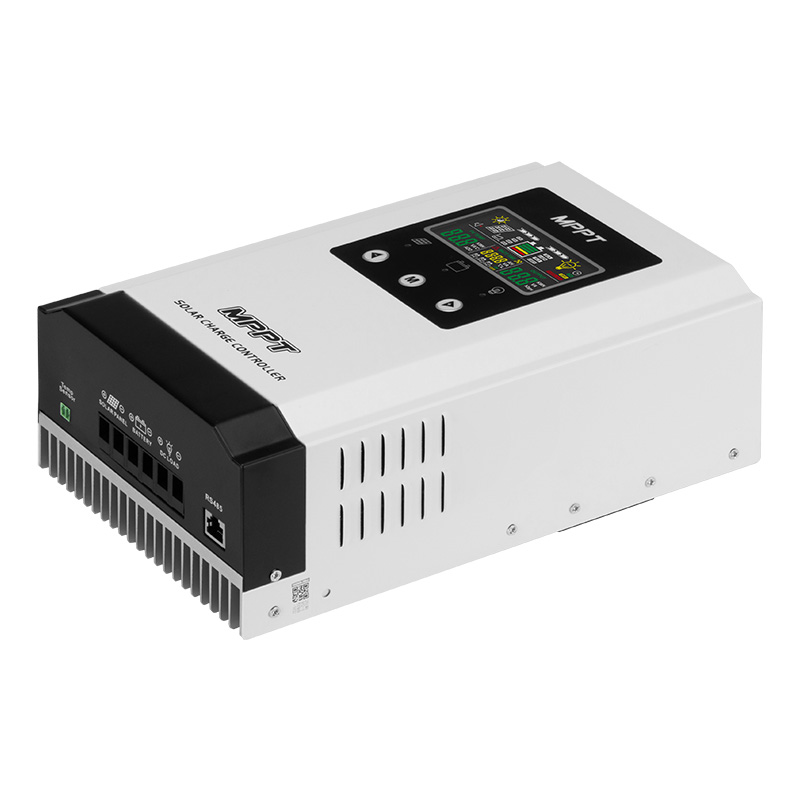

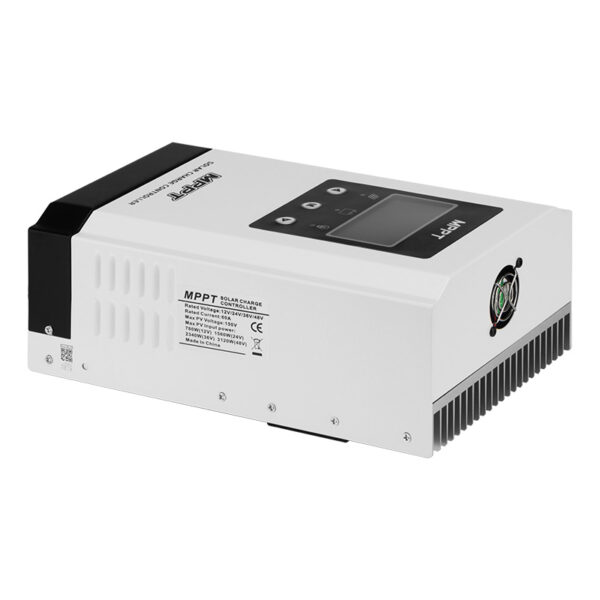

MPK6 MPPT Solar Charge Controller (30A–100A, 12V/24V/48V Auto) – High-Efficiency Industrial-Grade Power Management
The MPK6 MPPT Solar Charge Controller is engineered for professional solar energy applications, offering a robust and reliable power management solution for commercial, industrial, and large-scale off-grid systems. With intelligent auto voltage detection and high-efficiency MPPT tracking, this controller delivers superior performance across a wide range of solar installations.
Flexible Current Options: Available in 30A, 40A, 50A, 60A, 80A, and 100A models to meet diverse system requirements.
Auto Voltage Detection: Seamlessly supports 12V, 24V, and 48V battery systems without manual configuration.
Industrial-Grade MPPT Algorithm: Advanced tracking technology increases solar charging efficiency by up to 99%.
Smart System Integration: Optional RS485, Bluetooth, or WiFi modules for remote monitoring and intelligent system management.
Comprehensive Protection Suite: Includes overvoltage, short circuit, reverse polarity, and over-temperature safeguards.
Wide Battery Compatibility: Optimized for sealed, AGM, GEL, Flooded, and lithium battery types.
Solar project integrators
Renewable energy distributors
EPC contractors
Off-grid energy system providers
Commercial and agricultural solar solutions
Built with international standards in mind, the MPK6 MPPT Solar Charge Controller ensures stable, scalable performance in diverse environments—from remote telecom sites to hybrid solar power stations.
Partner with us to bring scalable, high-performance solar technology to your markets. OEM/ODM customization available on request.
| Model | MPK6-40 | MPK6-60 | MPK6-80 | ||||
| Max. PV Open Circuit Voltage | 150V (at the lowest temperature), 138V (at a standard temperature of 25°) |
||||||
| Min. PV Voltage | 20V/40V/60V/80V | ||||||
| Rated Charge Current | 30A | 40A | 50A | 60A | 80A | 100A | |
| PV Max. Input Power | 12V | 390W | 520W | 650W | 780W | 1040W | 1300W |
| 24V | 780W | 1040W | 1300W | 1560W | 2080W | 2600W | |
| 36V | 1170W | 1560W | 1950W | 2340W | 3120W | 3900W | |
| 48V | 1560W | 2080W | 2600W | 3120W | 4160W | 5200W | |
| System Voltage | 12V/24V/36V/48V Auto | ||||||
| Rated Discharge Current | 20A | 20A | 30A | 30A | 40A | 50A | |
| Own Consumption | ≤35A(48V) | ||||||
| MPPT Highest Accuracy | 99% | ||||||
| Max. Charging Efficiency | 97% | ||||||
| Charging Control Mode | Multi-stage(MPPT, Absorption, Float, Equalization, CV) | ||||||
| Float Charge | 13.8V/27.6V/41.4V/55.2V | ||||||
| Absorption Charge | 14.4V/28.8V/43.2V/57.6V | ||||||
| Equalization Charge | 14.6V/29.2V/43.8V/58.4V | ||||||
| Load Disconnection | 10.8V/21.6V/32.4V/43.2V | ||||||
| Load Reconnection | 12.6V/25.2V/37.8V/50.4V | ||||||
| Battery Type | GEL, SLD, FLD and USER(default), Lithium batteries customization 3series 3.7V, 4 series 3.7V, 4series 3.2V, 5series 3.2V |
||||||
