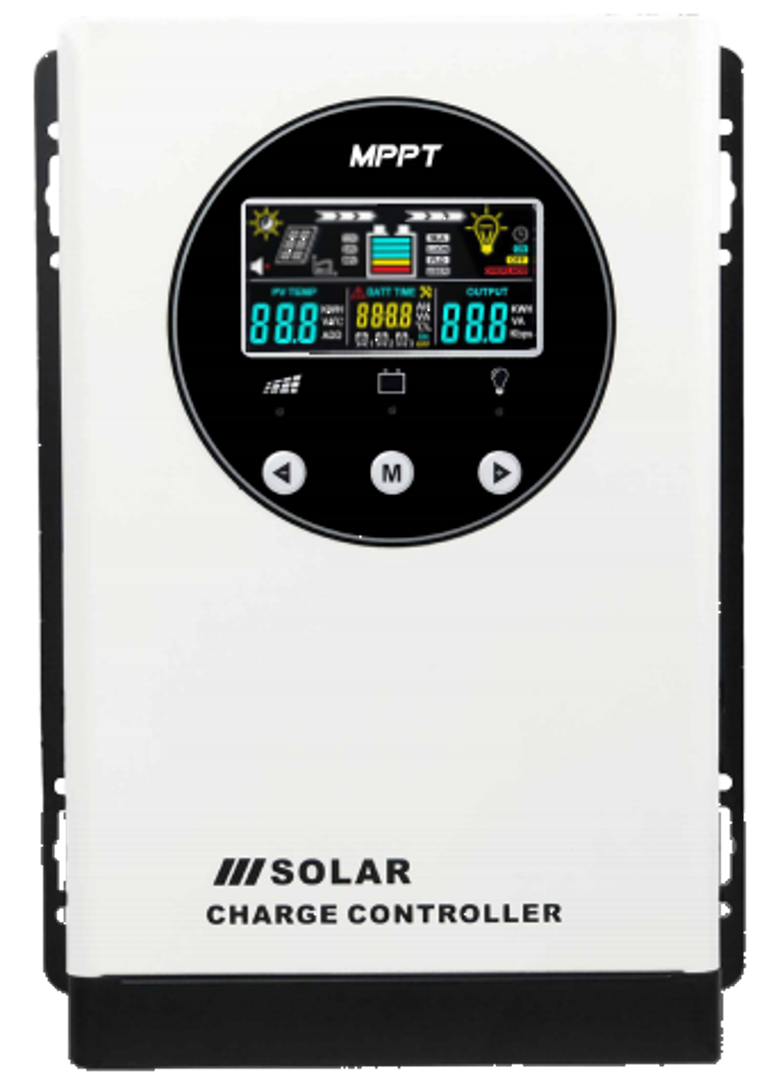

MPPT Solar Charge Controller – MPK7 Series

Model: MPK7

The MPK7 Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.

It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

MPK7 Series Industrial MPPT Solar Charge Controller 30A-120A | 12V/24V/48V Auto-Sensing | Cloud-Enabled Power Management

Discover the MPK7 industrial MPPT solar controller (30A-120A, 12V/24V/48V auto) with 99.2% efficiency, IoT monitoring & long life span. Perfect for solar farms, telecom towers & microgrids.

MPPT Solar Charge Controller - MPK7 Series

Enterprise-Grade Solar Charging Redefined

Engineered for mission-critical applications, the MPK7 series delivers 99.2% peak efficiency – the highest in its class. Featuring patented triple-stage MPPT algorithm and auto-sensing 12V/24V/48V compatibility, it outperforms conventional controllers by up to 40% energy harvest in low-light conditions.

Why Global Operators Choose MPK7?

✅ Predictive Maintenance – AI-driven failure prevention
✅ Cybersecurity – TLS 1.3 encrypted communications
✅ 5-Year Design Life – 50,000+ hour MTBF
✅ White-Label OEM – Custom firmware available

Model MPK7-4048 MPK7-6048 MPK7-8048
Max. PV Open Circuit Voltage 30A/40A: 150V, 50A/60A/80A/100A: 200V
Min. PV Voltage 20V/40V/60V/80V
Rated Charge Current 30A 40A 50A 60A 80A 100A
PV Max. Input Power 12V 390W 520W 650W 780W 1040W 1300W
24V 780W 1040W 1300W 1560W 2080W 2600W
36V 1170W 1560W 1950W 2340W 3120W 3900W
48V 1560W 2080W 2600W 3120W 4160W 5200W
System Voltage 12V/24V/36V/48V Auto
Rated Discharge Current 20A 20A 30A 30A 40A 50A
Own Consumption ≤35A(48V)
MPPT Highest Accuracy 99%
Max. Charging Efficiency 97%
Charging Control Mode Multi-stage(MPPT, Absorption, Float, Equalization, CV)
Float Charge 13.8V/27.6V/41.4V/55.2V
Absorption Charge 14.4V/28.8V/43.2V/57.6V
Equalization Charge 14.6V/29.2V/43.8V/58.4V
Load Disconnection 10.8V/21.6V/32.4V/43.2V
Load Reconnection 12.6V/25.2V/37.8V/50.4V
Battery Type GEL, SLD, FLD and USER(default), Lithium batteries customization
3series 3.7V, 4 series 3.7V, 4series 3.2V, 5series 3.2V
