The MPQ Series MPPT Solar Charge Controller is designed for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.
Ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

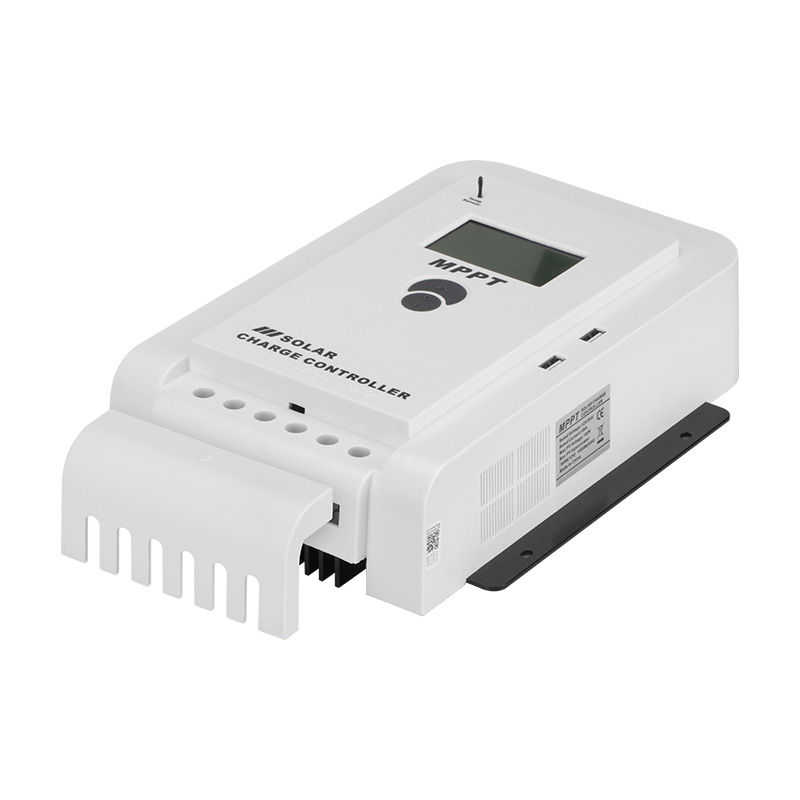

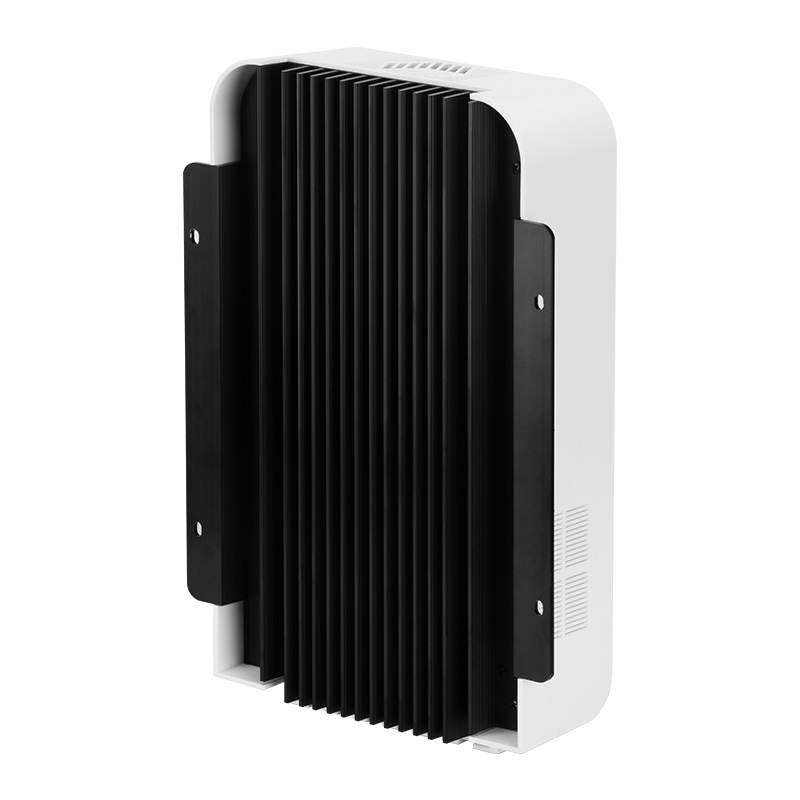

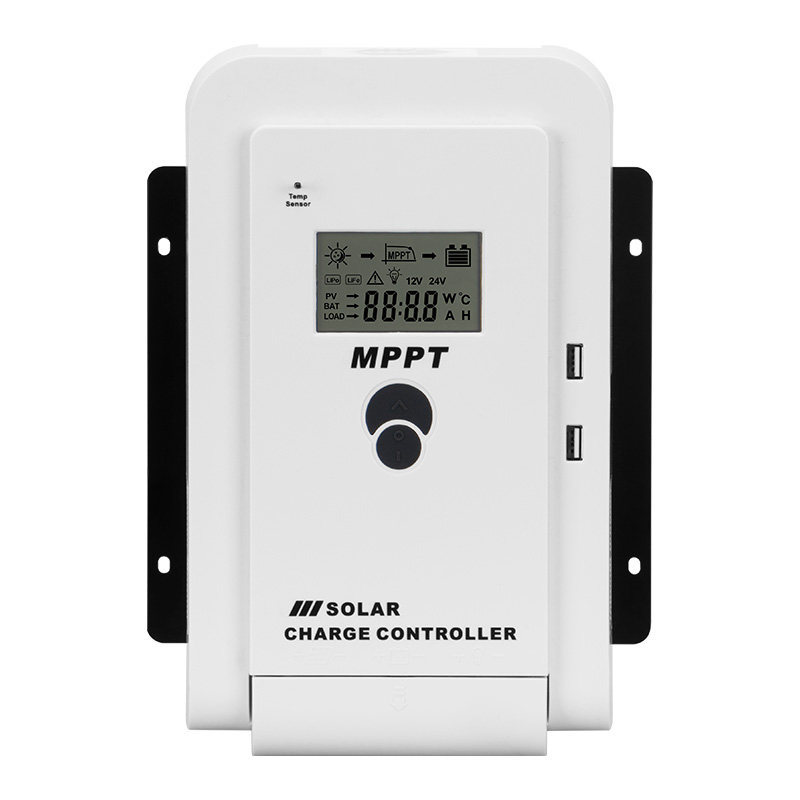

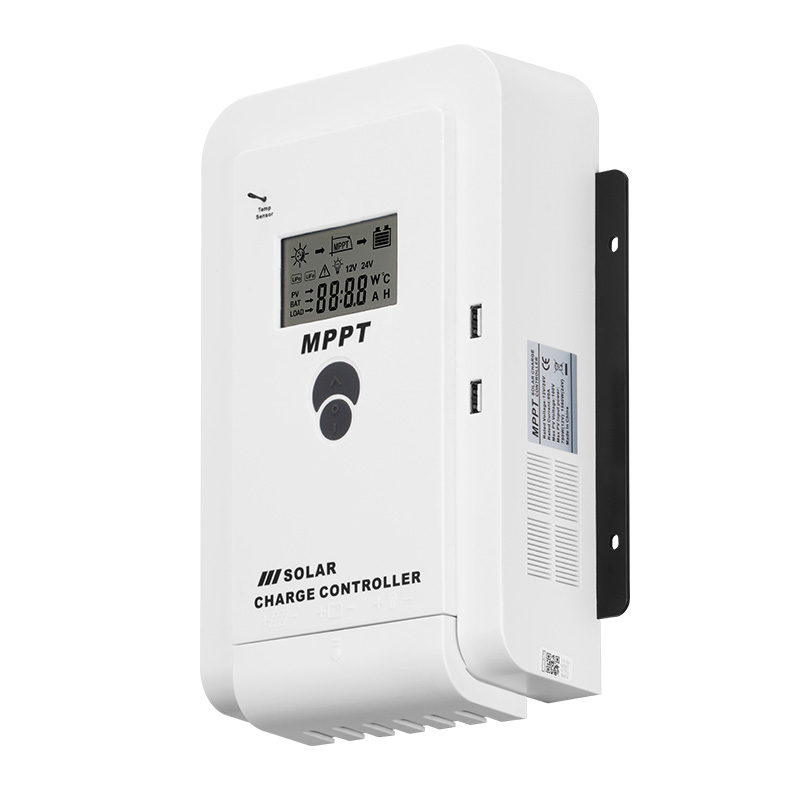

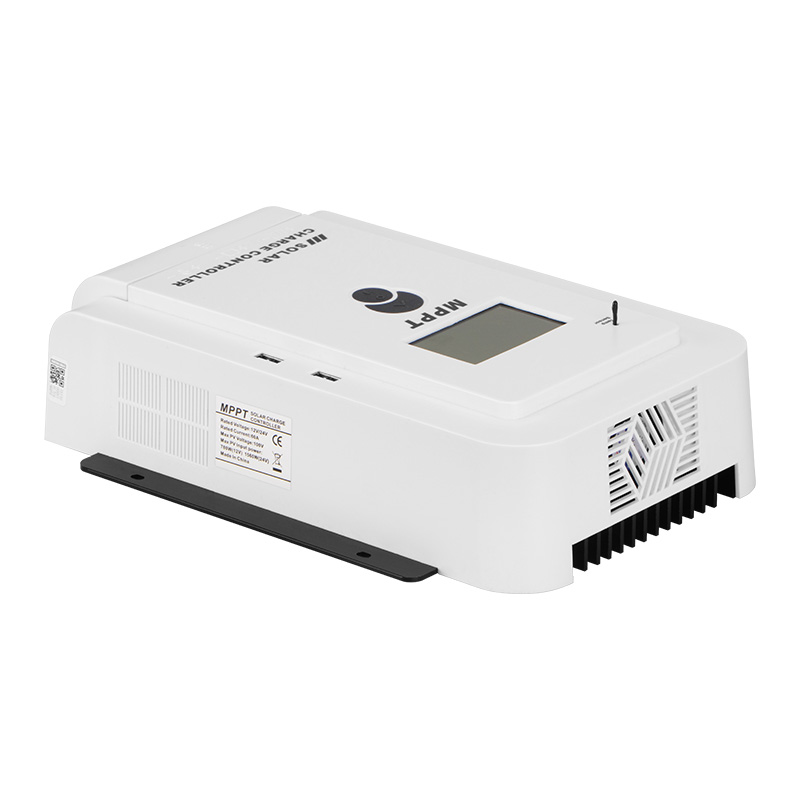

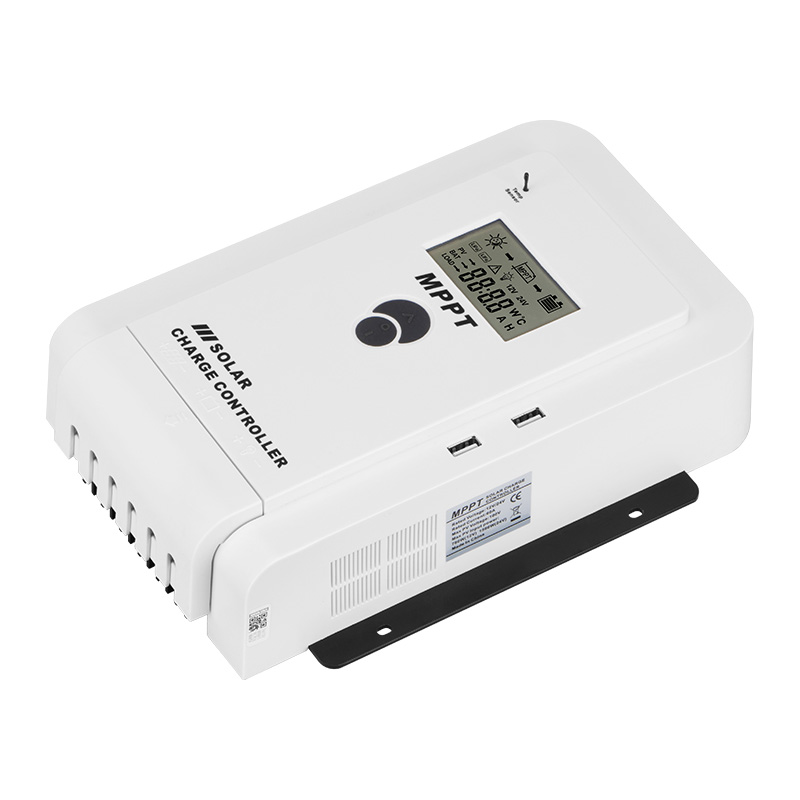

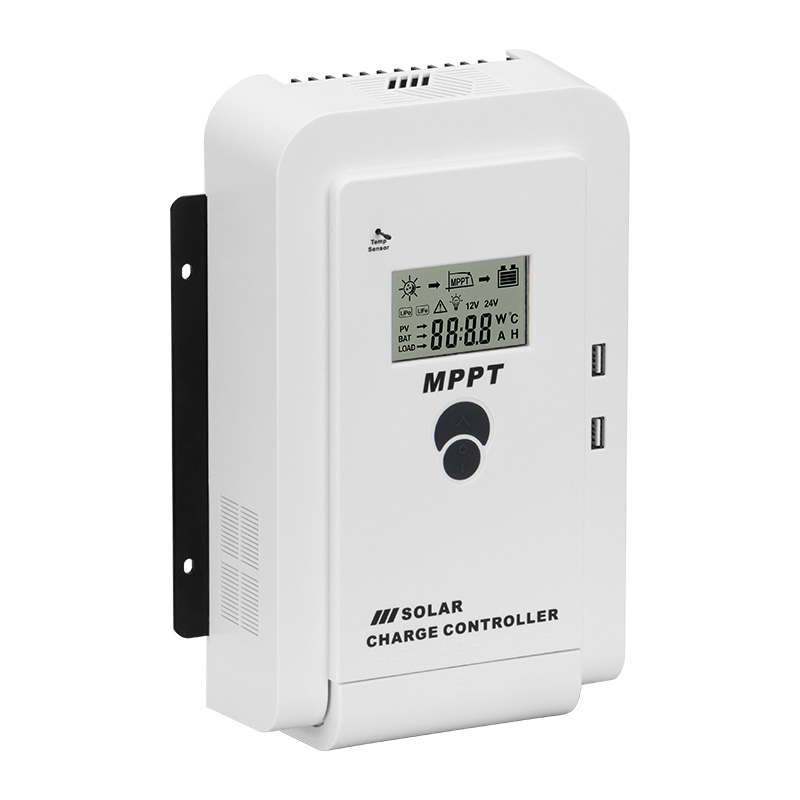

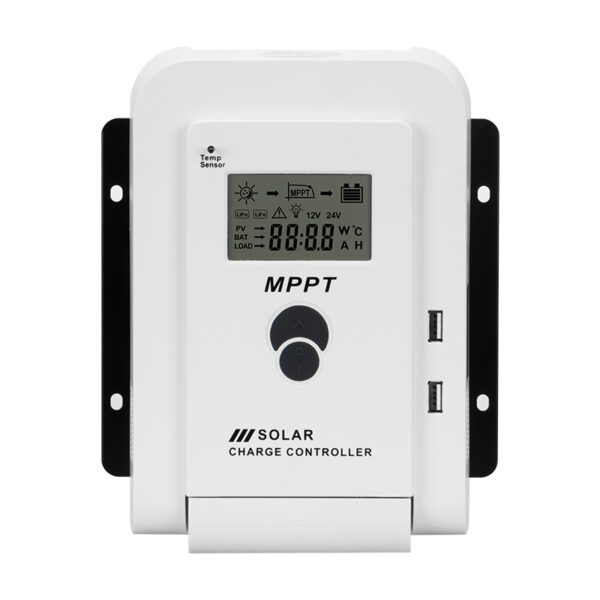

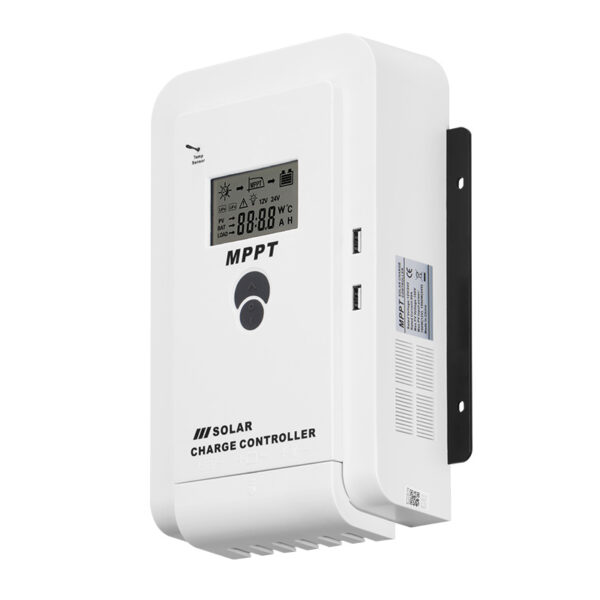

MPQ Series MPPT Solar Charge Controller 10A-60A | 12V/24V Auto-Sensing | High-Efficiency Solar Regulator
Discover the MPQ series MPPT solar charge controller (10A-60A, 12V/24V auto) – the smart solution for maximizing solar energy harvest in RVs, boats, and off-grid systems. 98% efficiency with advanced protections.
The MPQ series MPPT solar charge controller delivers professional-grade power management for 12V/24V solar systems. Using advanced Maximum Power Point Tracking technology, it extracts up to 30% more energy from your solar panels compared to conventional PWM controllers.
✔ Auto Voltage Detection – Intelligently switches between 12V/24V systems
✔ Wide Current Range – Available in 10A/20A/30A/40A/60A models
✔ Ultra-High 98% Efficiency – Minimizes energy loss
✔ Comprehensive Protections:
Overcharge/Over-discharge
Short-circuit & Reverse Polarity
Over-temperature & Lightning
✔ User-Friendly Interface:
Bright LCD display
Real-time monitoring (optional Bluetooth module)
🔹 RV & Marine Solar Systems
🔹 Off-Grid Cabins & Tiny Homes
🔹 Solar Street Lights
🔹 Agricultural Water Pumps
🔹 Telecom Power Systems
✅ Plug-and-Play Installation – No complex setup required
✅ Silent Operation – No annoying fan noise
✅ Durable Design
| Model | MPQ20 | MPQ40 | MPQ60 | ||||
| Max. PV Open Circuit Voltage | ＜60V | ＜100V | ＜100V | ||||
| Rated Charge Current | 10A | 20A | 30A | 40A | 50A | 60A | |
| PV Max. Input Power | 12V | 130W | 260W | 390W | 520W | 650W | 780W |
| 24V | 260W | 520W | 780W | 1040W | 13000W | 1560W | |
| System Voltage | 12V/24V Auto | ||||||
| Rated Discharge Current | 10A | 20A | 30A | ||||
| Charging Control Mode | MPPT | ||||||
| Float Charge | 13.8V/27.6V/41.4V/55.2V | ||||||
| Absorption Charge | 14.4V/28.8V/43.2V/57.6V | ||||||
| Equalization Charge | 14.6V/29.2V/43.8V/58.4V | ||||||
| Load Disconnection | 10.8V/21.6V/32.4V/43.2V | ||||||
| Load Reconnection | 12.6V/25.2V/37.8V/50.4V | ||||||
| Battery Type | GEL, SLD, FLD and Lithium batteries customization | ||||||
