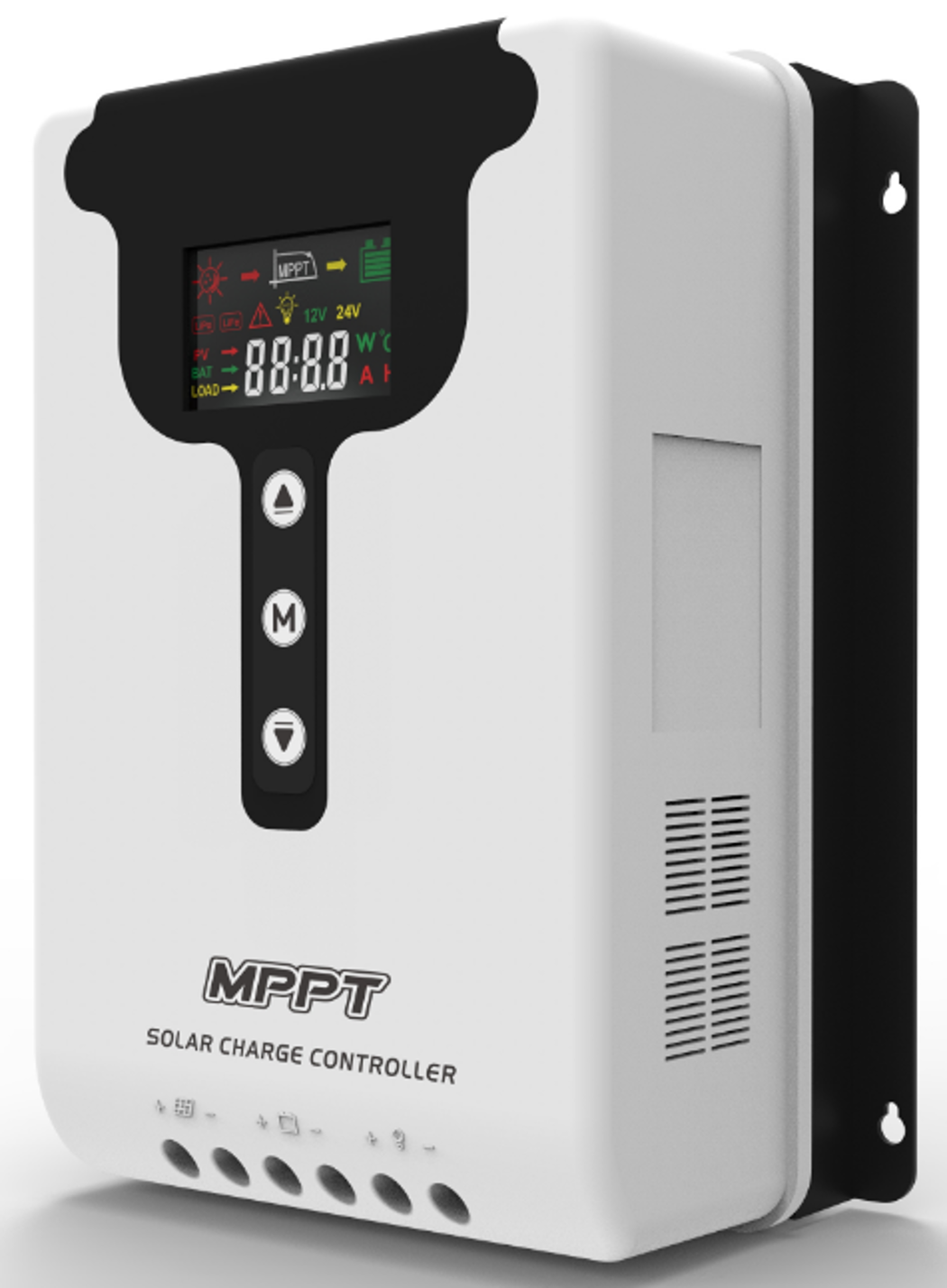

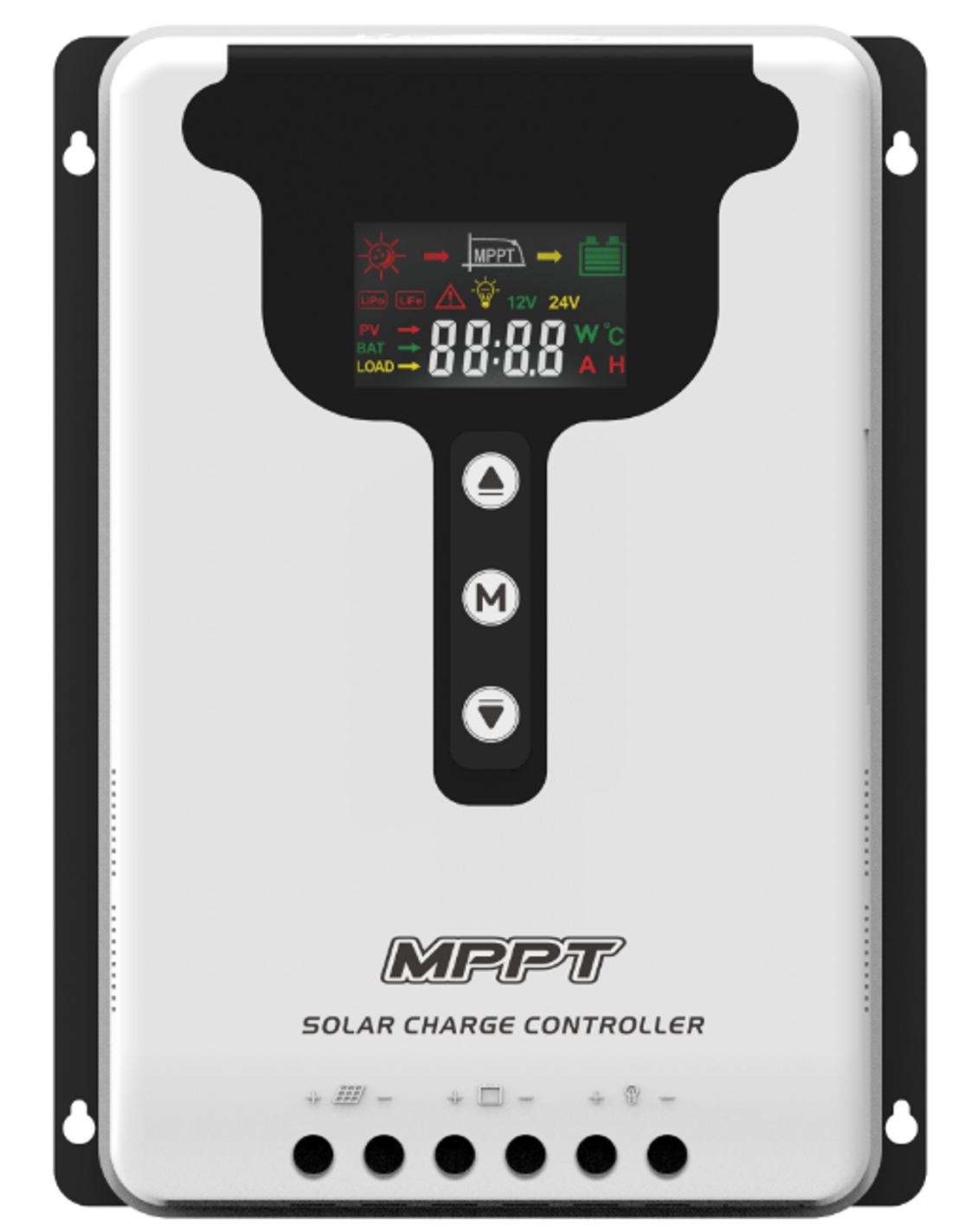

MPPT Solar Charge Controller – MRE Series

Model: MRE

MRE MPPT Solar Charge Controller – Smart, Reliable, and High-Efficiency Solar Power Management
Advanced MPPT Technology | Multi-System Compatibility | Built for Professional Solar Applications

The MRE MPPT Solar Charge Controller is a high-performance solution. Ideal for off-grid, hybrid, and energy storage solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, it delivers exceptional efficiency and faster solar charging—helping to maximize power harvest from PV panels in all weather conditions.

Engineered for global B2B markets, the MRE controller offers wide system voltage support, intelligent battery management, and comprehensive safety protections, making it a dependable choice for large-scale solar deployments and OEM integration.

MPPT Solar Charge Controller - MRE Series

Key Features:

  • High-Efficiency MPPT Tracking: Increases solar energy utilization with tracking efficiency up to 99.5%

  • Auto Voltage Detection: Supports 12V, 24V, and 48V</strong> battery systems with automatic recognition
  • Wide Battery Compatibility: Works with Lead-acid (Sealed, GEL, Flooded) and Lithium (LiFePO₄, Li-ion) battery types

  • User Interface: Intuitive LCD screen or LED status indicators for real-time monitoring

  • Remote Communication: RS485/RS232 standard; optional Bluetooth or WiFi module for remote access and system integration

  • Comprehensive Protection: Built-in protection for overcharging, short-circuit, over-temperature, reverse polarity, and overload

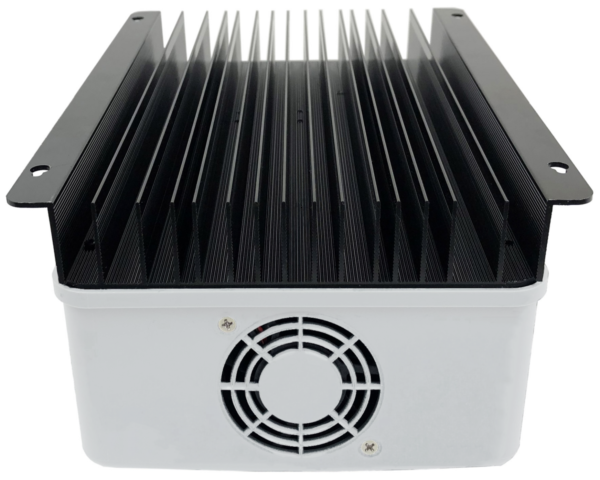

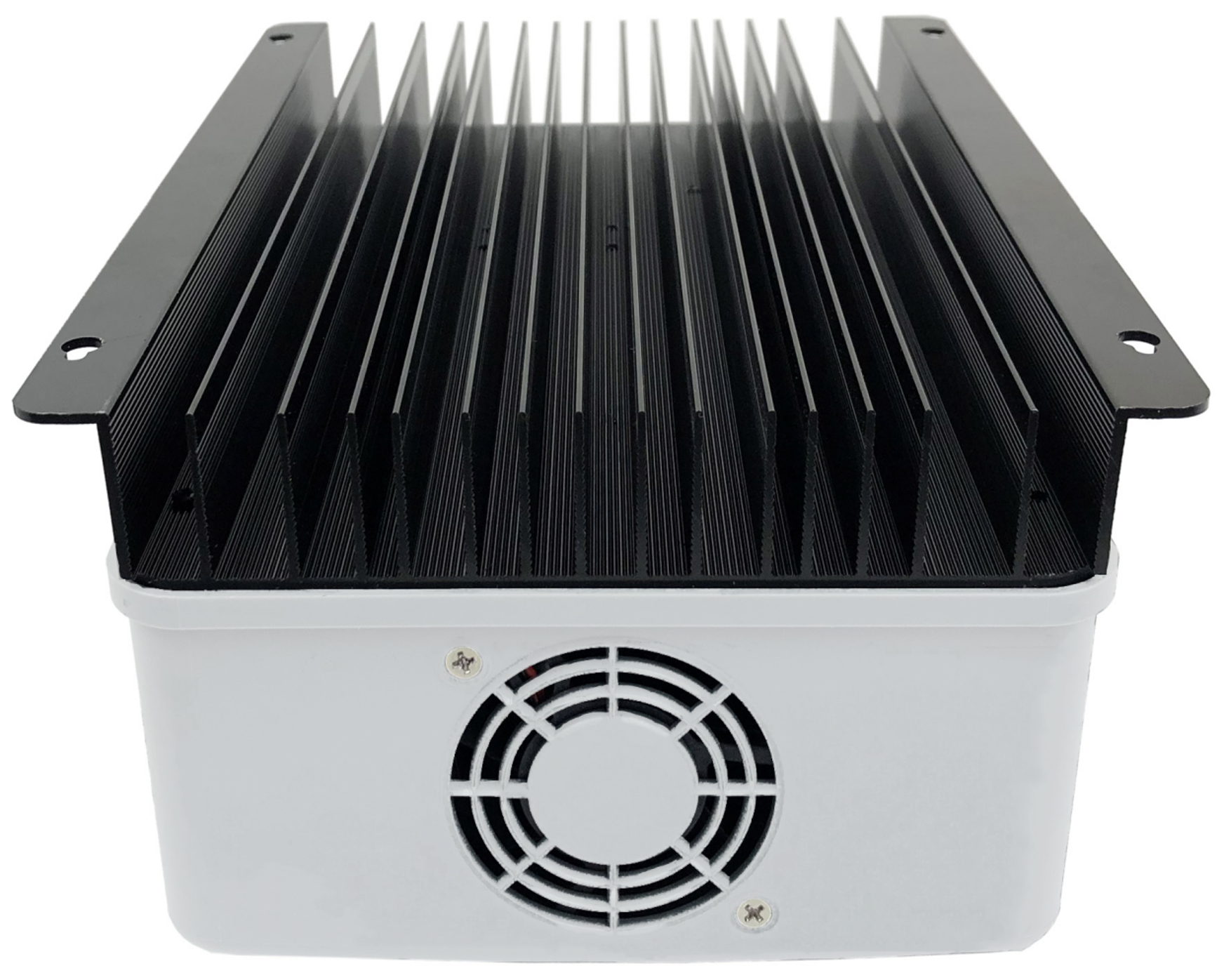

  • Durable Design: Designed to perform in harsh environments with strong heat dissipation and long service life

Ideal For:

  • Off-grid solar energy systems

  • Hybrid and battery-backed solar installations

  • Telecom base stations and rural electrification projects

  • Solar lighting and agricultural power setups

  • OEM & solar product distributors and integrators

Built for Global Solar Projects

The MRE MPPT Solar Charge Controller offers a powerful blend of performance, reliability, and system flexibility—making it an excellent choice for B2B partners focused on delivering scalable solar energy solutions.

OEM/ODM customization available for large-scale orders and private label projects. Contact us to add the MRE controller to your solar product lineup.



SERIE
系列
MODEL
型号
SPECIFICATION
参数
PACKING
包装
REMARKS
备注
MPPT
塑料外壳
MRE4048
240*181*80
width=”155″>30A  12V/24V/48V
AUTO
catron size:
550*410*390mm
qty/ctn:12pcs
CBM:0.088cm³                                                         NW:18kg                                                   GW:19kg
LCD display/ USB output/Support charging lithium battery
可充锂电池
40A  12V/24V/48V
AUTO
an=”2″ width=”142″>MRE6048
265*192*110
60A  12V/24V/48V
AUTO
MRE8048
295*212*120
80A  12V/24V/48V
AUTO
catron size:
505*480*350mm
qty/ctn:6pcs
CBM: 0.085cm³                                                         NW:14.5kg                                                   GW:15.3kg
100A  12V/24V/48V
AUTO
Bluetooth
Module
Built In
