The MRF Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.
It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.

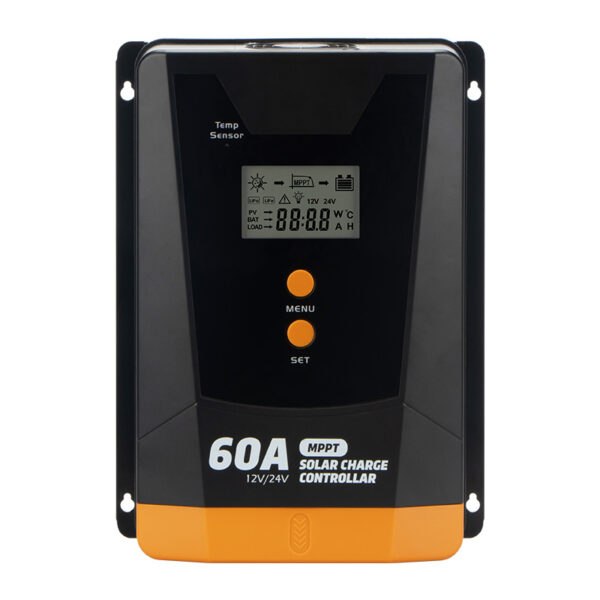

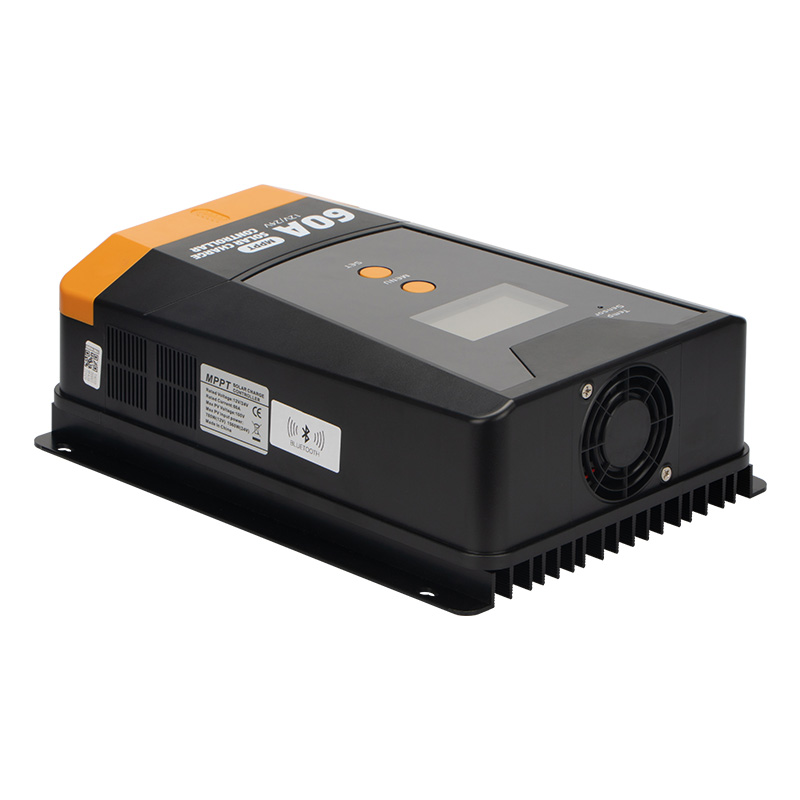

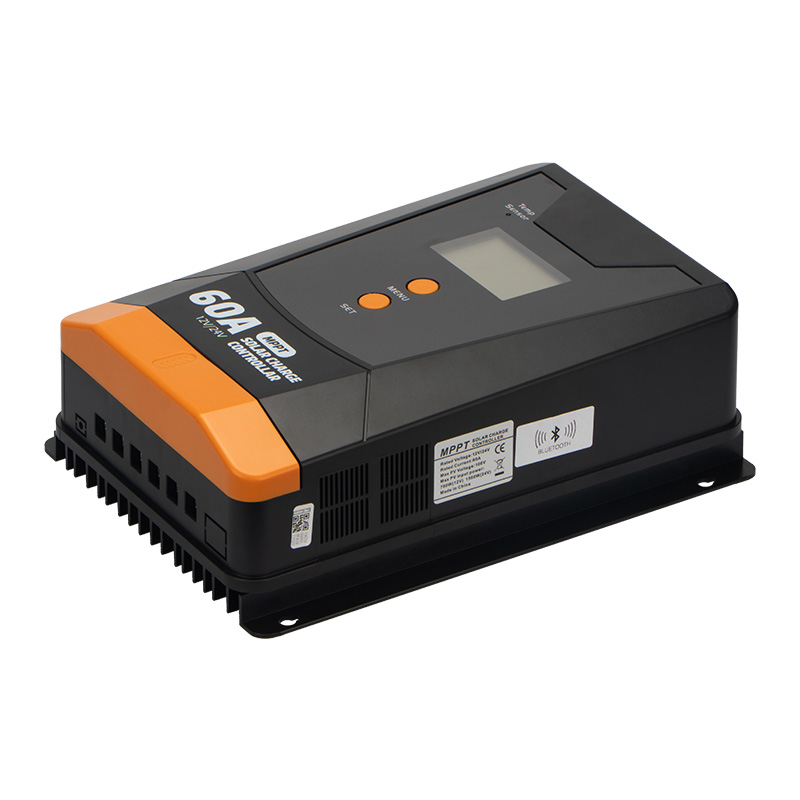

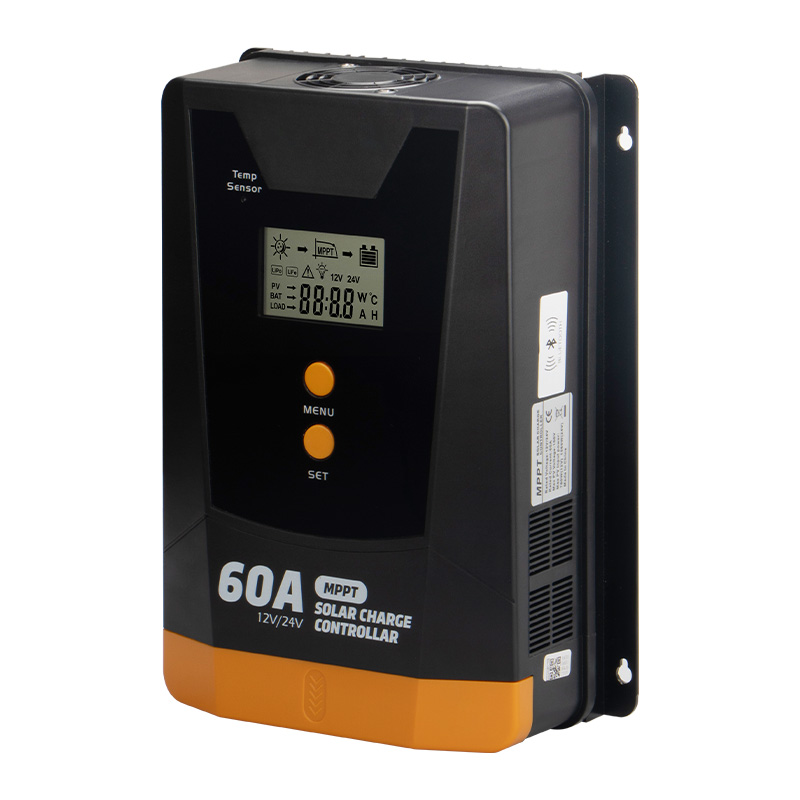

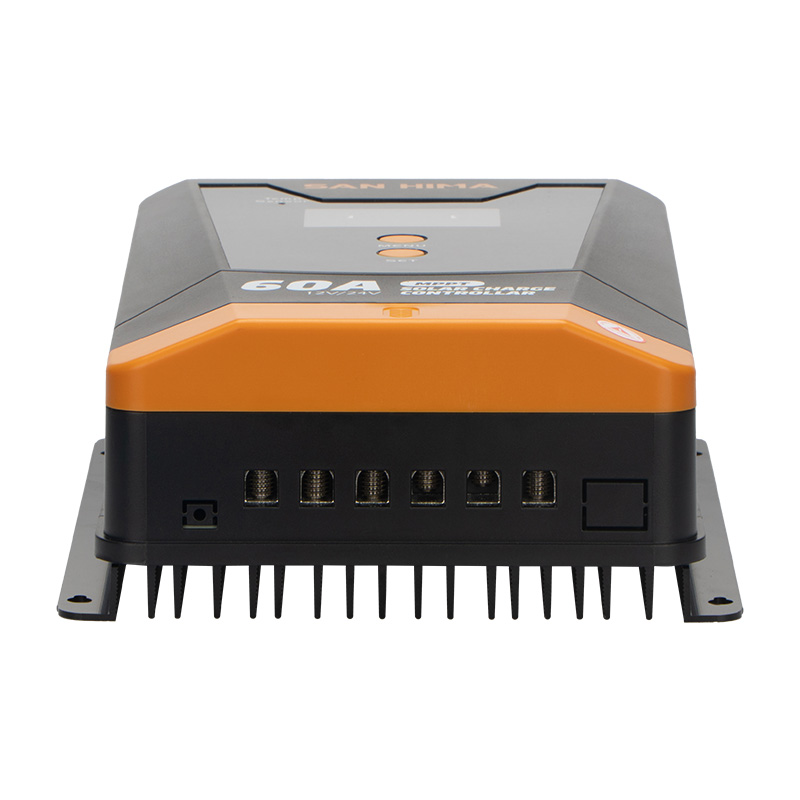

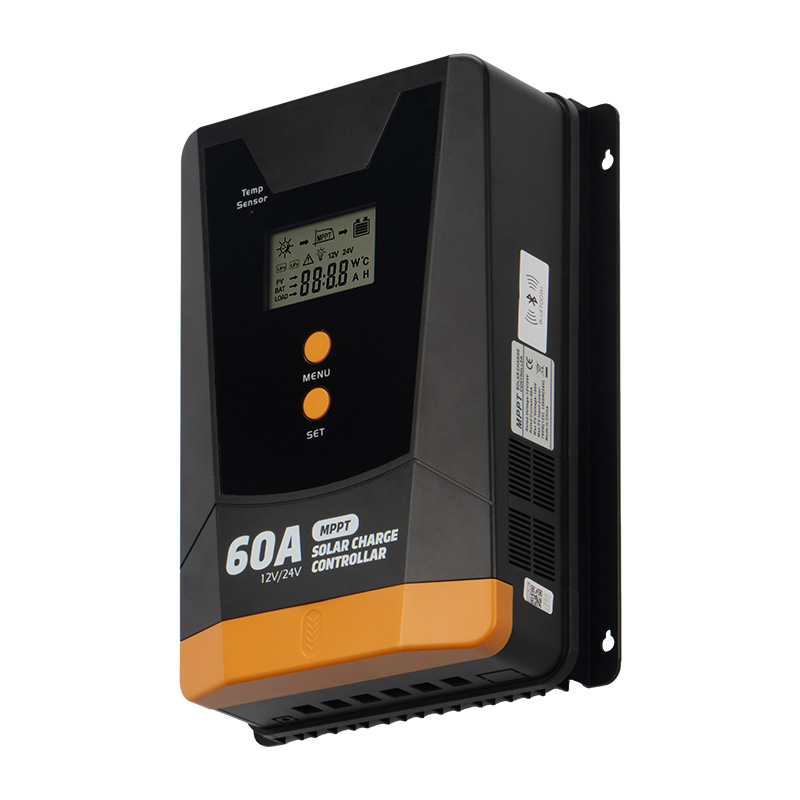

MRF Series MPPT Solar Charge Controller 10A-60A | 12V/24V Auto-Sensing | Smart Energy Management
Boost solar efficiency with MRF series MPPT charge controller (10A-60A, 12V/24V auto). Features 98% conversion rate, Bluetooth monitoring & IP65 protection. Ideal for off-grid/RV/marine systems.
The MRF series represents the latest advancement in solar charge controllers, utilizing intelligent Maximum Power Point Tracking to extract 30% more energy than PWM controllers. With auto 12V/24V detection and wide 10A-60A range, it’s the ultimate solution for diverse solar applications.
✔ 98% Peak Efficiency – Industry-leading energy conversion
✔ Real-Time Bluetooth Monitoring – Track performance via mobile app (iOS/Android)
✔ Military-Grade Durability – IP65 waterproof & dustproof enclosure
✔ 3-Stage Smart Charging – Optimized bulk/absorption/float for battery health
✔ Universal Compatibility – Works with lead-acid, gel, and lithium batteries
✅ Silent Fanless Design – No noise pollution
✅ Wide LCD Display – Clear real-time data visualization
✅ Easy Installation – Plug-and-play setup
☀ Off-Grid Solar Systems
☀ RV & Marine Power Solutions
☀ Solar Street Lighting
☀ Agricultural Irrigation
☀ Telecom Base Stations
🔹 Free mobile app with all controllers
🔹 Custom branding available for OEM orders
<table style=”height: 570px;” width=”775″>ModelMRF20MRF40<td colspan=”2″ width=”160″>MRF60Max. PV Open Circuit Voltage＜60Vth=”160″>＜100V＜100VRated Charge Current10A20A30A40A50A60APV Max. Input Power12V130W260W390W520W650W780W24V260W520W780W1040W13000W1560WSystem Voltage12V/24V AutoRated Discharge Current20A20A30AOwn Consumption≤50mAMPPT Highest Accuracy99%Max. Charging Efficiency97%Charging Control ModeMPPTFloat Charge13.8V/27.6V/41.4V/55.2VAbsorption Charge14.4V/28.8V/43.2V/57.6VEqualization Charge14.6V/29.2V/43.8V/58.4VLoad Disconnection10.8V/21.6V/32.4V/43.2VLoad Reconnection12.6V/25.2V/37.8V/50.4VBattery TypeGEL, SLD, FLD and User(default), Lithium batteries customization
