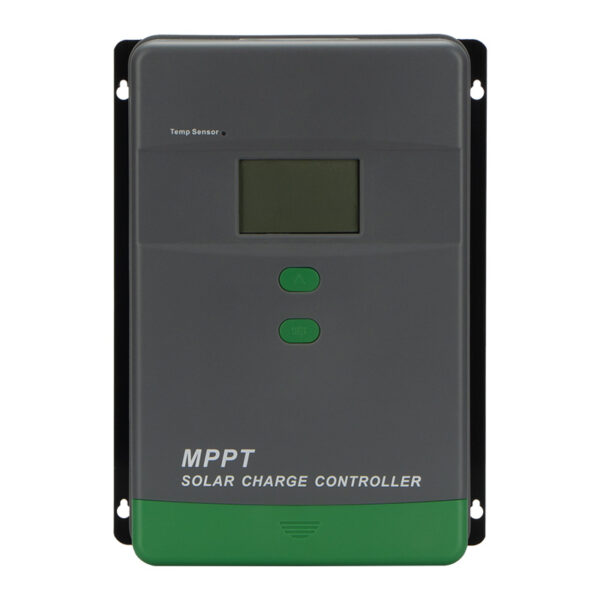

The MRL Series MPPT Solar Charge Controller is for high-efficiency solar power management, maximizing energy conversion with advanced MPPT technology.
It’s ideal for commercial and industrial solar systems, it supports multiple battery types, ensuring stable and reliable off-grid or hybrid operation. Perfect for wholesalers, distributors, and solar solution providers.
class=”yoast-text-mark”>class=”ds-markdown-paragraph”>MRL Series MPPT Solar Charge Controller 10A-60A | 12V/24V Auto-Sensing | Advanced Solar Power Management
lass=”ds-markdown-paragraph”>Maximize solar efficiency with MRL series MPPT charge controller (10A-60A, 12V/24V auto)</strong>. Featuring 98% conversion rate, WiFi/Bluetooth monitoring & industrial-grade protection for off-grid/RV/marine systems.
The MRL series MPPT solar charge controller delivers next-generation power management with industry-leading 98% peak efficiency. Our advanced algorithm continuously tracks the maximum power point, extracting 30-35% more energy than conventional PWM controllers while protecting your battery investment.
✔ Dual Communication Interface – WiFi & Bluetooth 5.2 for remote monitoring
✔ Auto Voltage Detection – Seamless 12V/24V system switching
✔ Military-Grade Protection – IP68 rated waterproof/dustproof enclosure
✔ 4-Stage Smart Charging – Bulk/Absorption/Float/Equalization modes
✔ Expanded Compatibility – Supports LiFePO4, AGM, Gel & flooded batteries
🔹 Off-Grid Solar Power Stations
🔹 Marine & RV Power Systems
🔹 Telecom Tower Power Backup
🔹 Solar Water Pumping Systems
🔹 Remote Monitoring Stations
✅ Cloud Monitoring Platform – Real-time global access to system data
✅ Customizable Parameters – 32 programmable settings
✅ Modular Expansion – Parallel capability for high-current systems
<table style=”height: 569px;” width=”782″>ModelMRL20MRL40<td colspan=”2″ width=”160″>MRL60Max. PV Open Circuit Voltage<60Vth=”160″><100V<100VRated Charge Current10A20A30A40A50A60APV Max. Input Power12V130W260W390W520W650W780W24V260W520W780W1040W13000W1560WSystem Voltage12V/24V AutoRated Discharge Current20A20A30AOwn Consumption≤50mAMPPT Highest Accuracy99%Max. Charging Efficiency97%Charging Control ModeMPPTFloat Charge13.8V/27.6V/41.4V/55.2VAbsorption Charge14.4V/28.8V/43.2V/57.6VEqualization Charge14.6V/29.2V/43.8V/58.4VLoad Disconnection10.8V/21.6V/32.4V/43.2VLoad Reconnection12.6V/25.2V/37.8V/50.4VBattery TypeGEL, SLD, FLD and User(default), Lithium batteries customization
