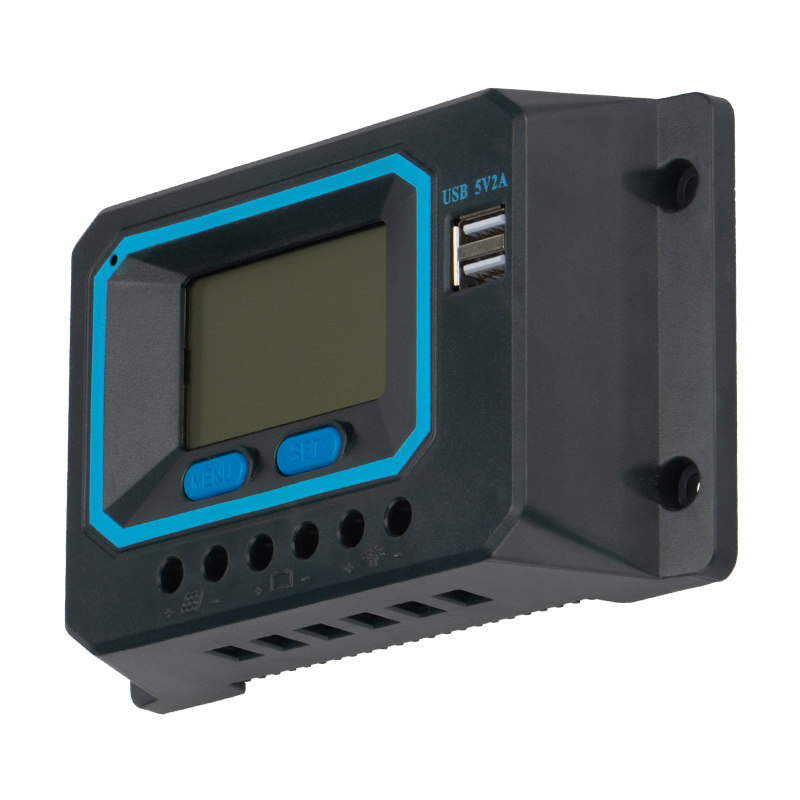

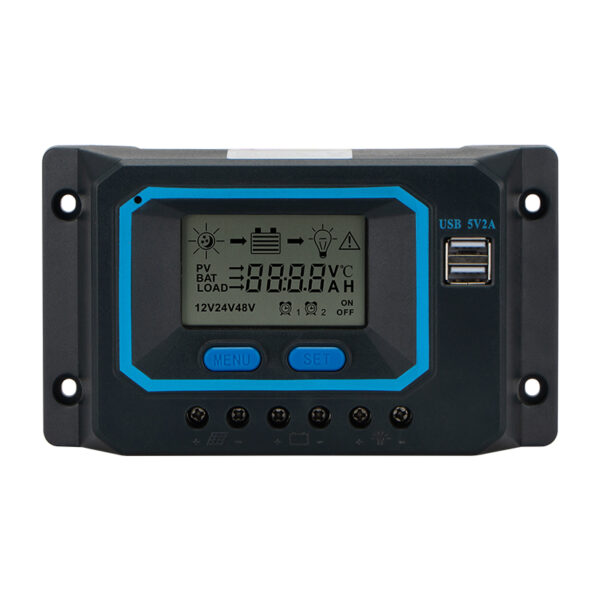

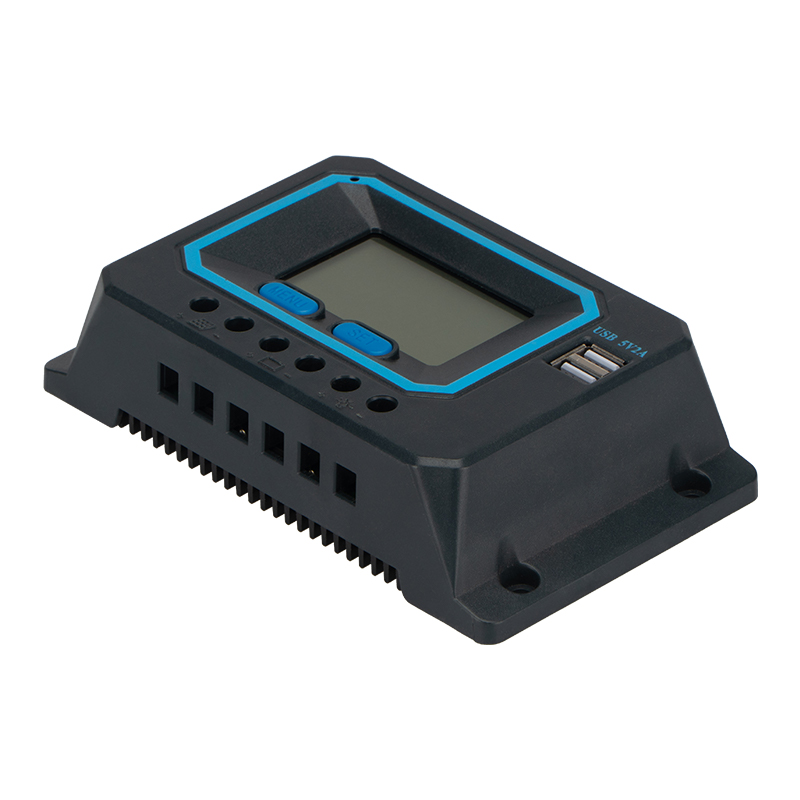

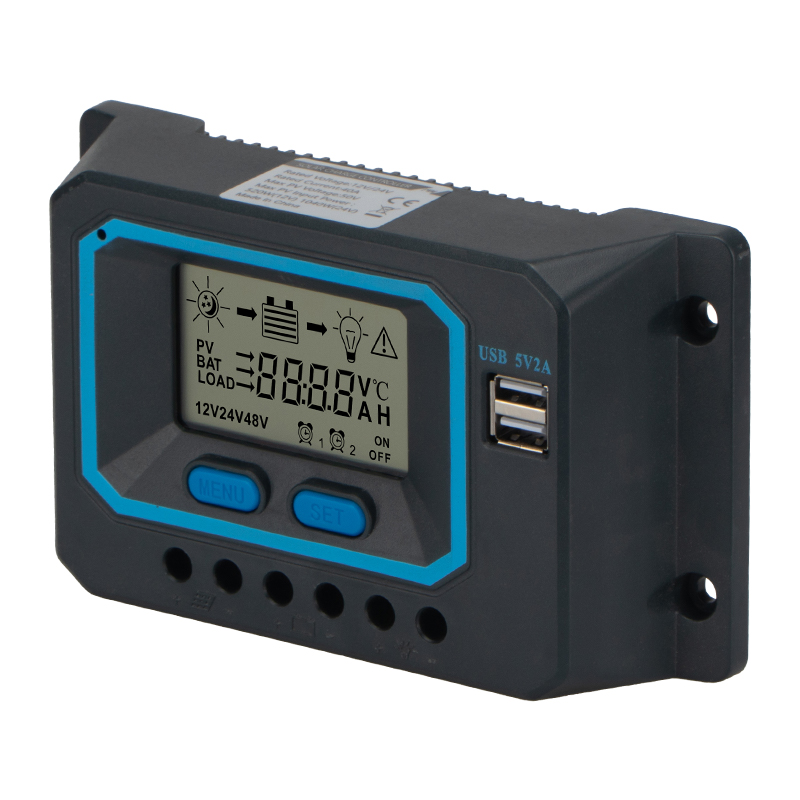

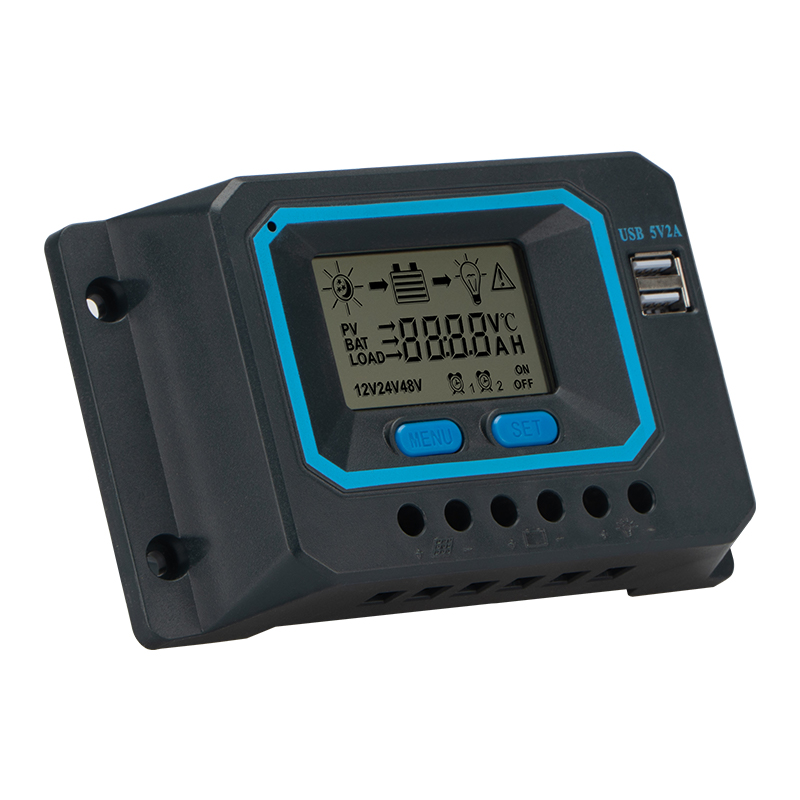

PWM Solar Charge Controller – KT Series

Model: KT

KT Series PWM Solar Charge Controller – Reliable & Efficient

Designed for wholesalers, distributors, and retailers, the KT series ensures stable solar battery charging with PWM technology.

Ideal for off-grid solar systems, it features overcharge protection, temperature compensation, and durable performance. Perfect for bulk orders & OEM customization!

KT Series PWM Solar Charge Controller (10A–60A, 12V/24V Auto)
Cost-Effective and Durable Charging Solution for Off-Grid Solar Applications

The KT Series PWM Solar Charge Controller is designed to provide reliable power regulation for small to medium-sized off-grid solar systems. With automatic 12V/24V system voltage detection and current options ranging from 10A to 60A, the KT Series offers a scalable and economical charging solution for distributors and system integrators worldwide.

PWM Solar Charge Controller - KT Series

Key Features:

  • Multiple Current Models: Available in 10A, 20A, 30A, 40A, 50A, and 60A configurations to meet diverse system demands.

  • Auto System Voltage Recognition: Automatically detects and adjusts for 12V or 24V battery systems.

  • Reliable PWM Charging: Uses Pulse Width Modulation to ensure steady, efficient charging and extended battery lifespan.

  • Battery Compatibility: Works with Sealed, Gel, and Flooded lead-acid batteries.

  • Optional LCD Display or LED Indicators: Easy-to-read interface options for system status monitoring and configuration.

  • Comprehensive Safety Protections: Guards against overcharging, over-discharging, overload, reverse polarity, and short circuits.

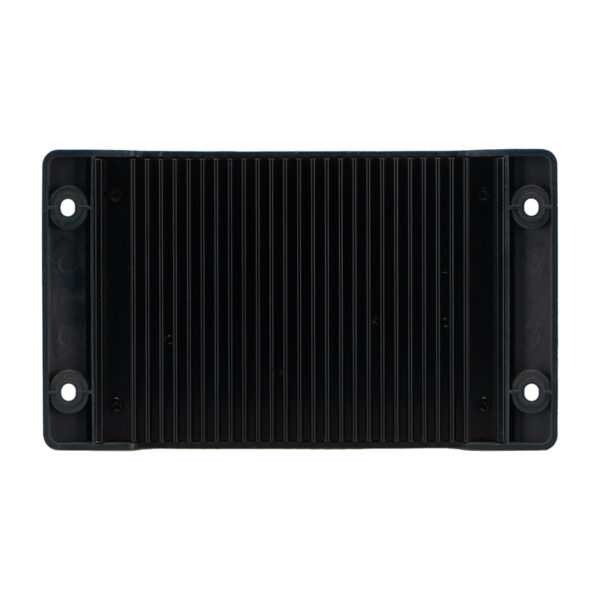

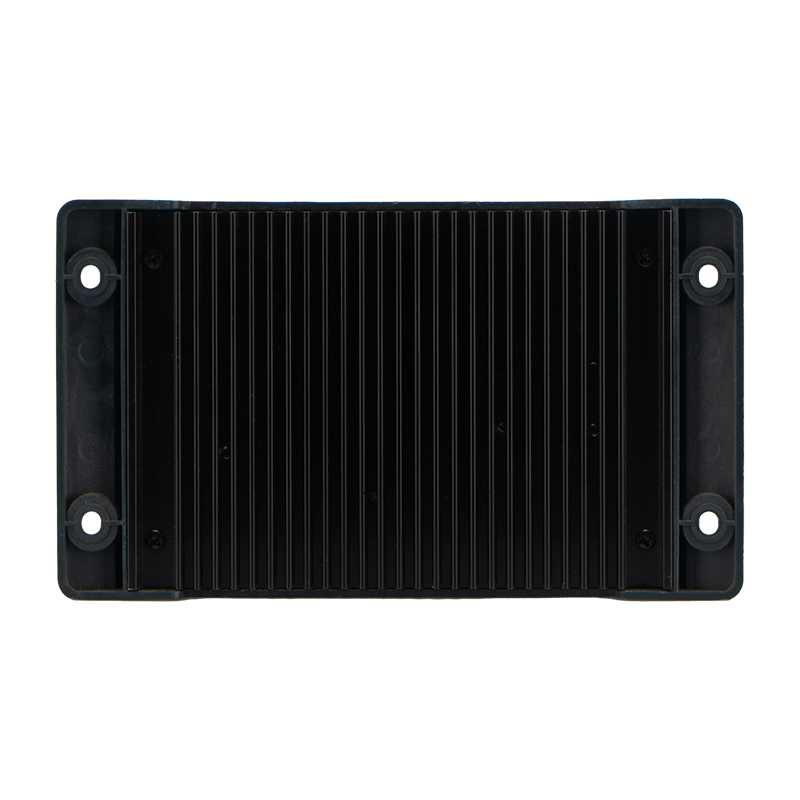

  • Rugged and Compact Design: Built to perform in challenging environments with efficient heat dissipation.

Ideal For:

  • Rural electrification projects

  • Residential off-grid power systems

  • Solar-powered lighting and water pumping systems

  • Mobile, RV, and marine solar kits

  • Global OEM/ODM solar product partners

Reliable Power Control for Scalable Solar Projects

The KT Series is your dependable PWM controller for professional-grade solar installations that require simplicity, durability, and value.

OEM & ODM customization available for large-volume B2B clients. Get in touch with us to grow your solar product line with reliable, field-tested charge controllers.

Model KT20 KT40 KT60
Max. PV Open Circuit Voltage <50A
System Voltage 12V/24V Auto
Rated Charge Current 10A 20A 30A 40A 50A 60A
PV Max. Input Power 12V 130W 260W 390W 520W 650W 780W
24V 260W 520W 780W 1040W 13000W 1560W
Rated Discharge Current 10A 20A 30A 30A
Charging Control Mode PWM
Float Charge 13.8V/27.6V
Absorption Charge 14.4V/28.8V
Equalization Charge 14.6V/29.2V
Load Disconnection 10.8V/21.6V
Load Reconnection 12.6V/25.2V
Battery Type GEL, SLD, FLD, Lithium Battery Customization GEL, SLD, FLD
