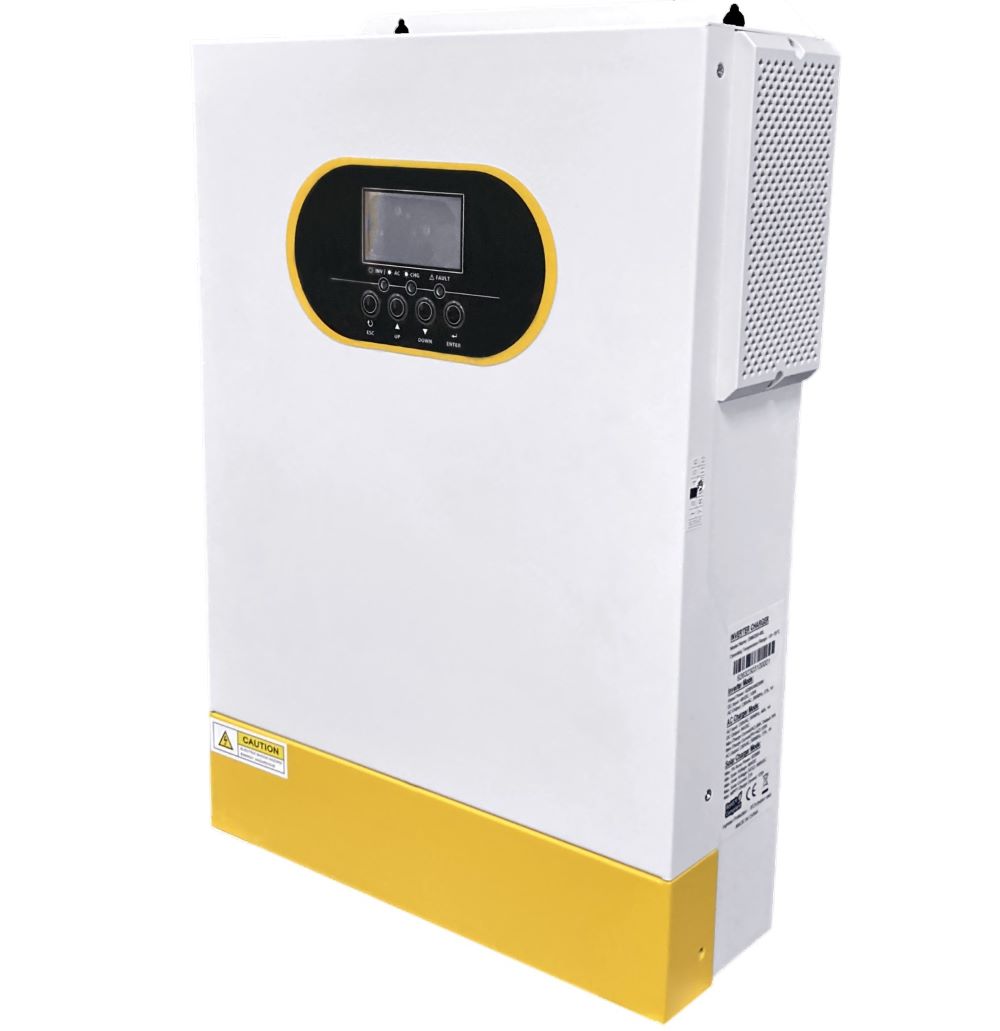

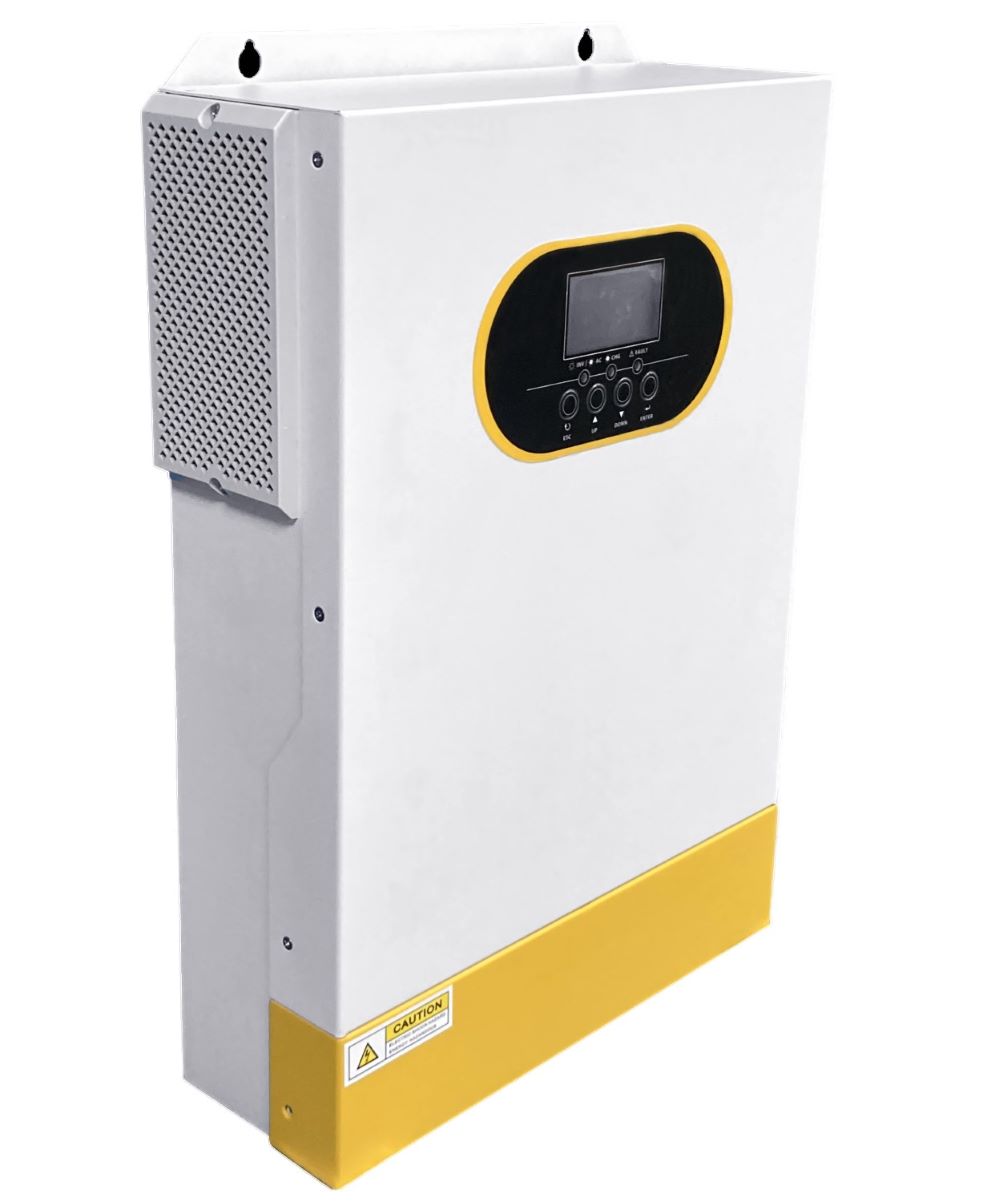

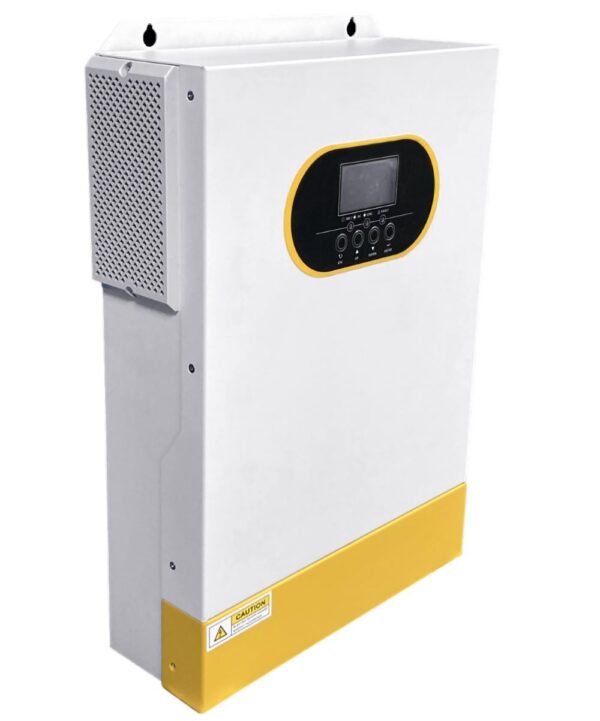

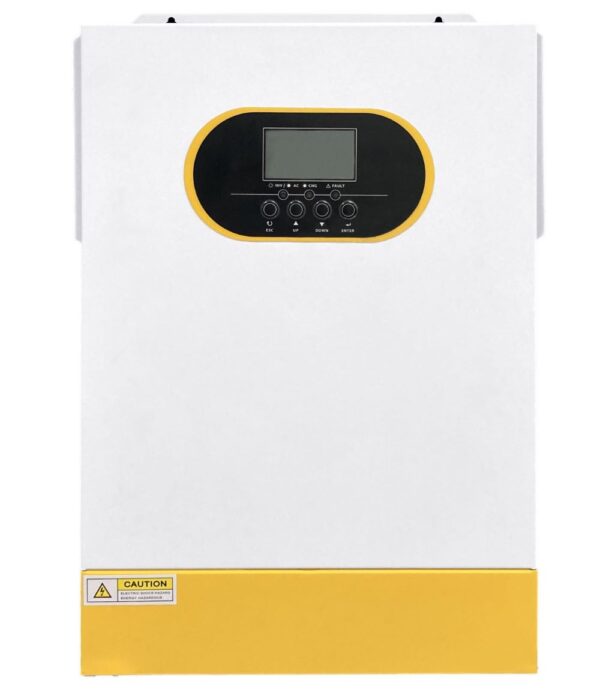

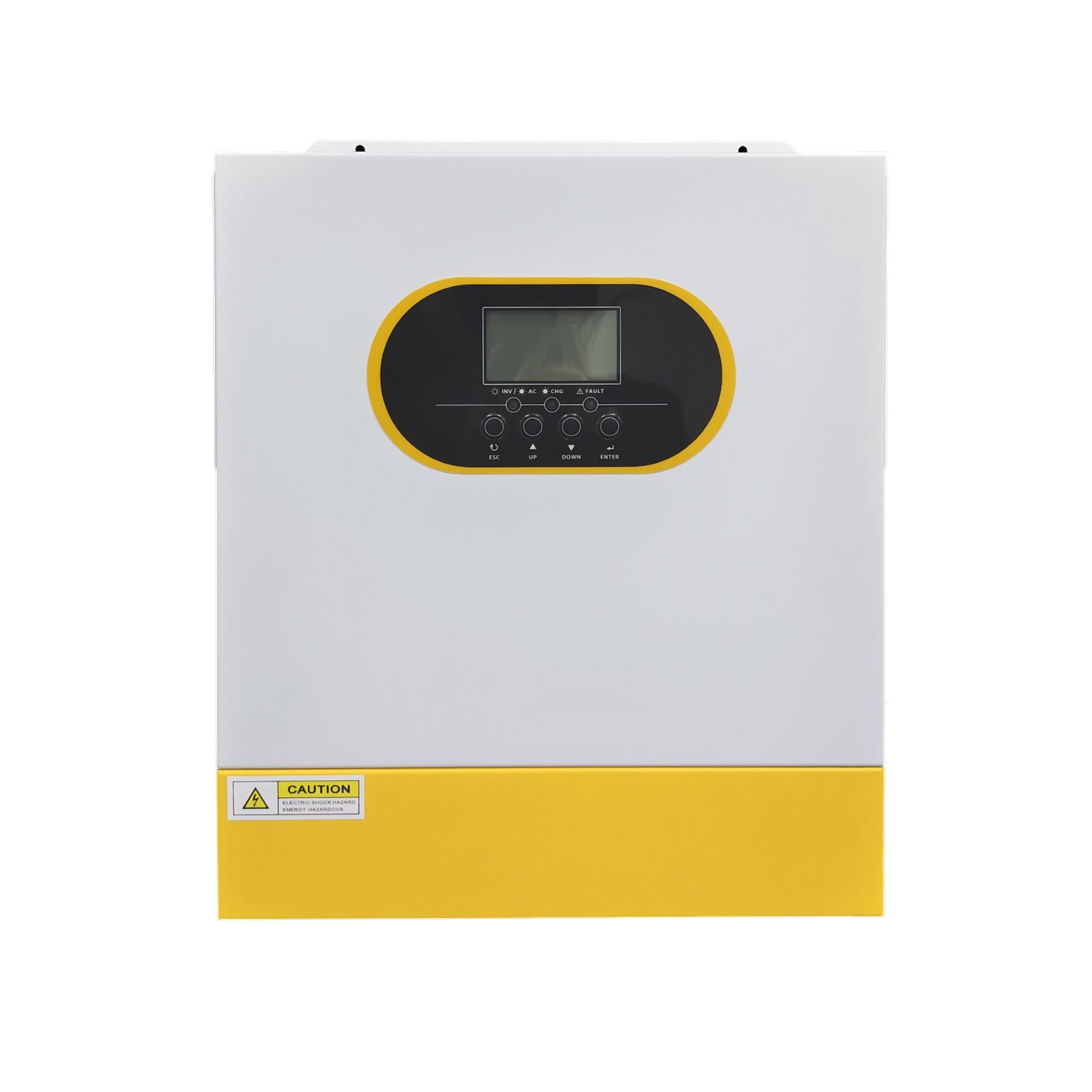

Solar Hybrid Inverter – EM Series

Model: EM

Solar Hybrid Inverter – EM Series is designed for superior performance with guaranteed price, quality, and service.

As a leading manufacturer, we export globally, earning the trust of distributors and dealers worldwide. Our inverters ensure high efficiency and reliability for various energy solutions.

6.2kW 48V MPPT Solar Hybrid Inverter – Pure Sine Wave, 120A MPPT, Battery Optional
High-Efficiency Hybrid Inverter for Residential & Light Commercial Solar Systems

This 6.2kW Solar Hybrid Inverter is engineered to deliver seamless power management for solar, battery, and grid-connected systems. With support for 48V battery systems, a high-performance MPPT solar charge controller (120A, 500V VOC), and pure sine wave output, it’s the ideal solution for reliable, scalable, and smart energy storage applications.

Designed to work with or without batteries and support LiFePO₄ BMS communication, this inverter meets the evolving needs of solar installers, system integrators, and distributors worldwide.

-Lithium battery activation function by PV or Utility

-Compatible work with lifepo4 battery via Rs485

-Pure sine wave

-Powerfactor1.0

-PV input Voltage 60Vdc-500Vdc

-Built-in MPPT60A/100A/120A

-Capable to work without battery

-Detachable dust cover for harsh environment

-WiFi remote monitoring optional

-Support multiple output priority: UTL, SOL, SBU, SUB

-EQ function to optimize battery performance and extend lifecycle

Solar Hybrid Inverter - EM Series Solar Hybrid Inverter - EM Series

Key Specifications:

  • Rated Inverter Output: 6.2kW pure sine wave, 230VAC

  • Battery Voltage: 48V DC, compatible with Lithium and Lead-acid batteries

  • AC Charger: 80A built-in AC charger for grid-assisted charging

  • MPPT Solar Charger: 120A controller, PV voltage range 60V–500V

  • Maximum PV Input Power: 6500W

  • Max. Solar Input Current: 27A

  • Smart Communication: RS232 + RS485, supports BMS connection with LiFePO₄ batteries

  • Battery-Free Operation: Supports operation without battery for flexibility in system design

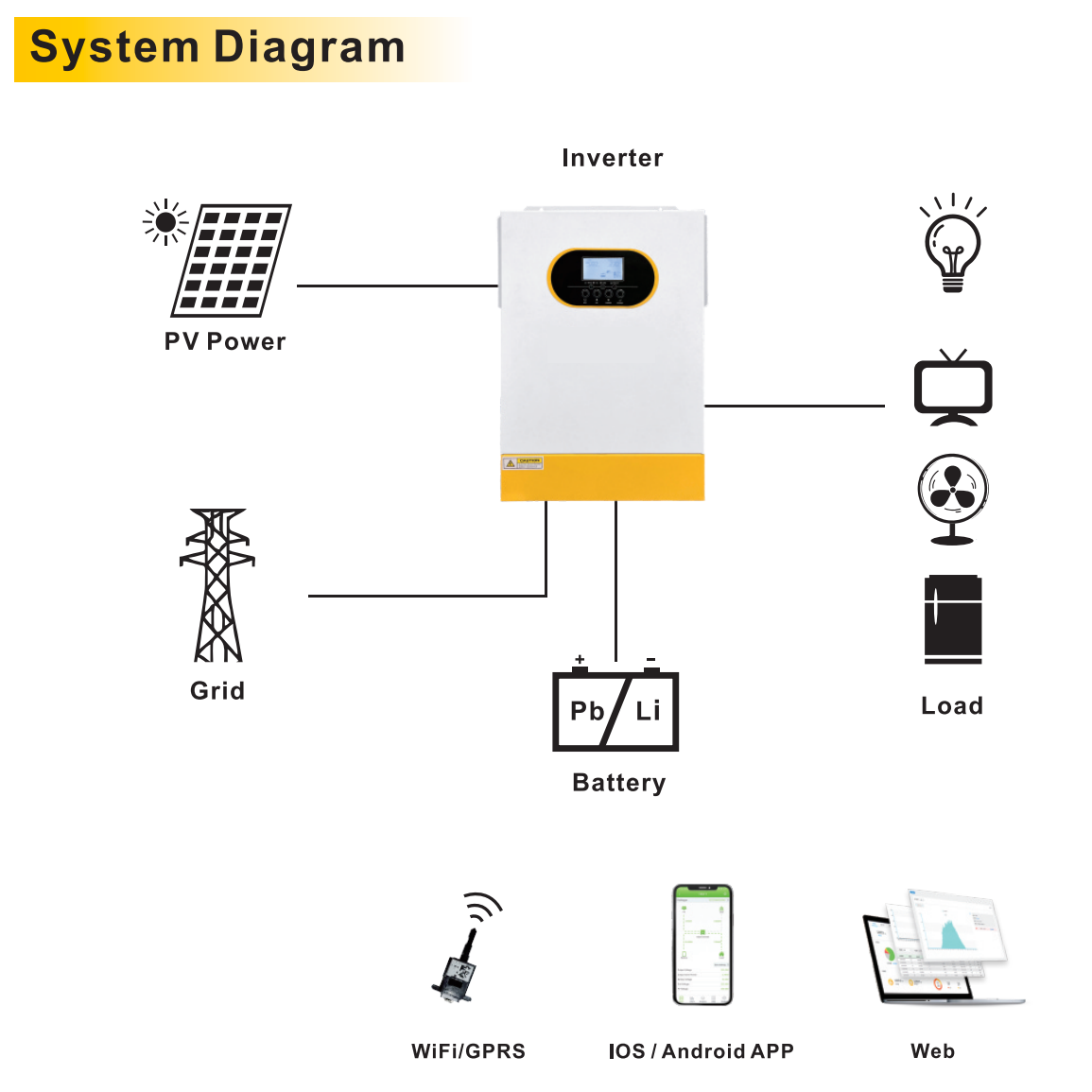

  • Applications: Off-grid systems, grid-tied backup, hybrid setups

Ideal For:

  • Residential solar + storage systems

  • Off-grid and hybrid energy setups

  • Backup power systems in remote or unstable-grid areas

  • Solar energy solutions where battery use is optional

  • Distributors and OEM/ODM solution providers

Built for the Global Solar Market

This 6.2kW 48V Hybrid Inverter combines cutting-edge MPPT technology, battery flexibility, and intelligent load management—making it a smart, future-ready choice for international solar projects.

OEM/ODM available for wholesale partners and system developers. Contact us to power your market with advanced solar hybrid technology.

Model EM3500-24L EM5500-48L EM6200-48L
Capacity 3.5KVA / 3.5KW 5.5KVA / 5.5KW 6.2KVA / 6.2KW
Parallel Capability NO
Lithium Battery Activation Yes (By PV only)
Lithium Battery Communication YES (RS485)
Input
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency 50/60 Hz (Auto Sensing)
Output
Nominal Voltage 220/230VAC ±5%
Surge Power 7000VA 11000VA 12400VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV) 96%
   Peak Efficiency (Battery to INV) 93%
Overload Protection 5s@>=140% Load; 10s@110%~140% Load
Crest Factor 3:01
Admissible Power Factor 0.6~1 (Inductive or Capactive)
Battery
Battery Voltage 24VDC 48VDC 48VDC
Floating Charge Voltage 27VDC 54VDC 54VDC
OverCharge Protection 33VDC 63VDC 63VDC
Charge Method CC / CV
Solar Charger & AC Charger
Solar Charger Type MPPT
Max. PV Array Power 4000W 5500W 6500W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC ~ 500VDC
Max. Solar Input Current 15A 18A 27A
Max. Solar Charge Current 100A 100A 120A
Max. AC Charge Current 80A 80A 80A
Max. Charge Current 100A 100A 120A
Physical
Dimensions 358*295*100 mm 438*295*105 mm 438*295*105 mm
Package Dimensions 465*380*175 mm 560*375*185 mm 560*375*185 mm
Net Weight 7 KGS 9 KGS 9 KGS

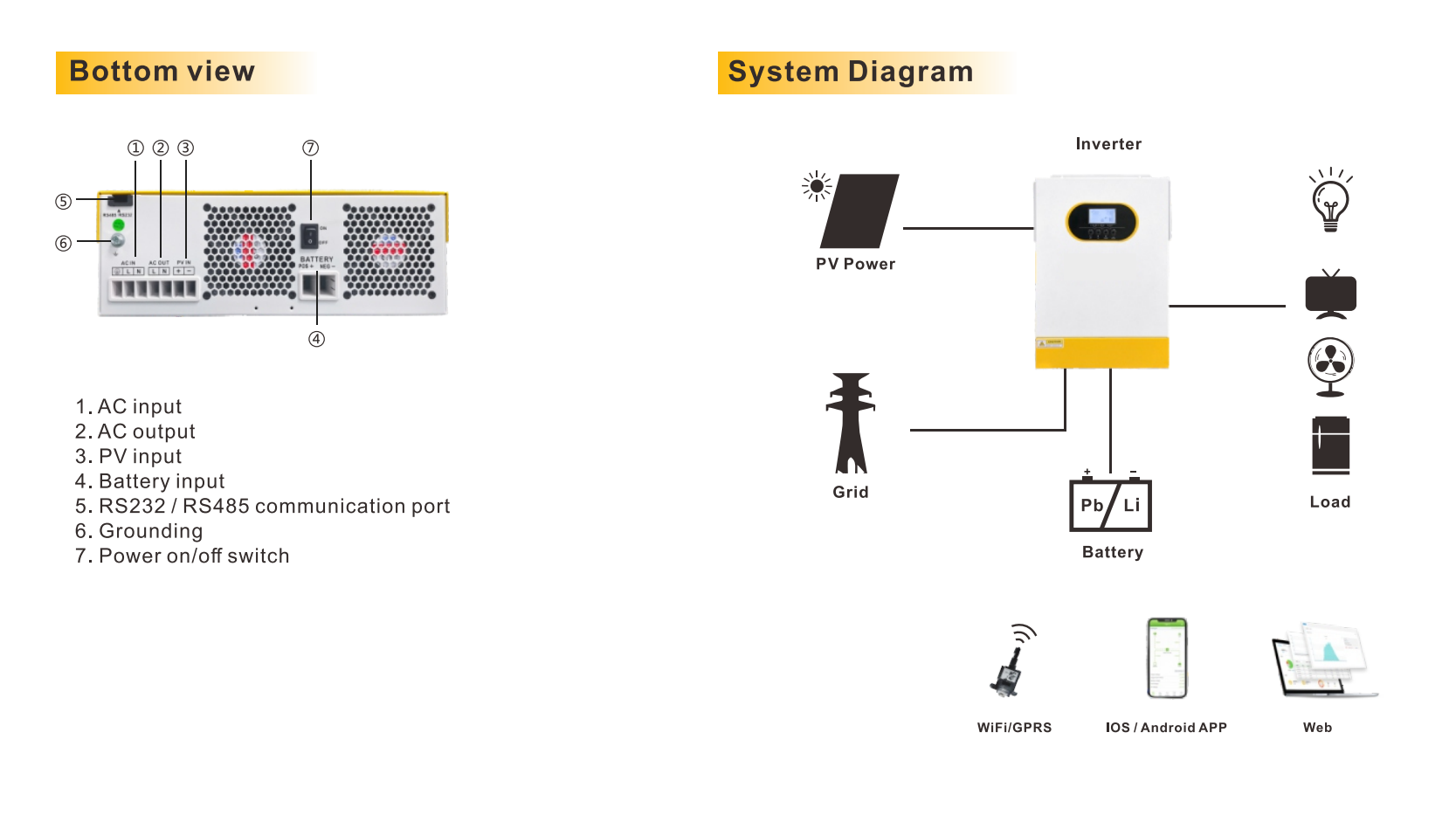

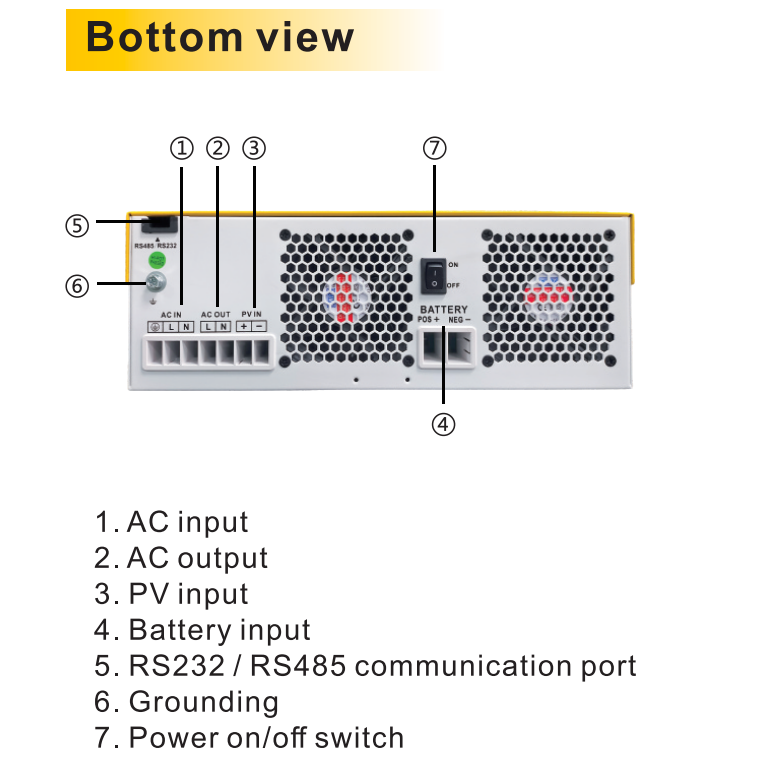

Communication Interface RS232 + RS485
Environment
Operating Temperature Range -10 ~ 50ºC
Storage Temperature -15 ~ 50ºC
Humidity 5% to 95% Relative Humidity (Non-Condensing)
