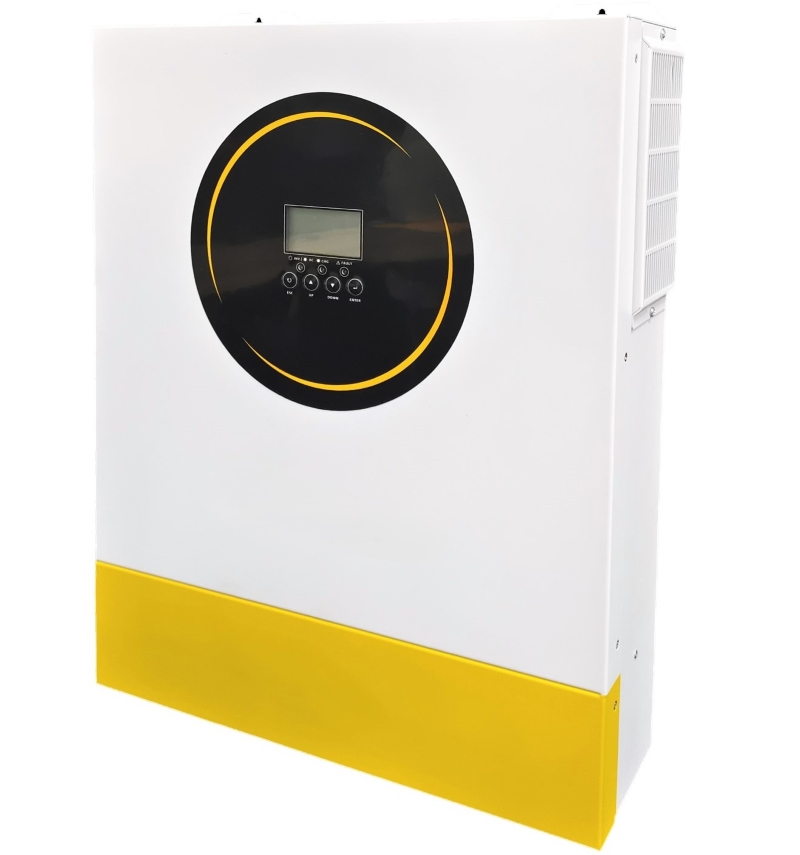

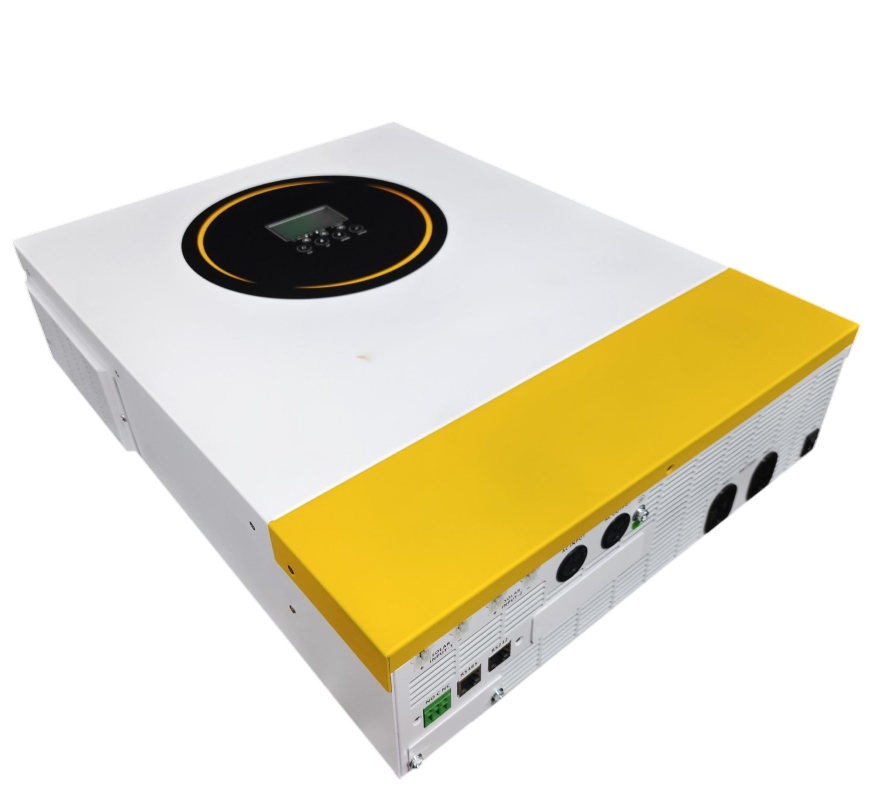

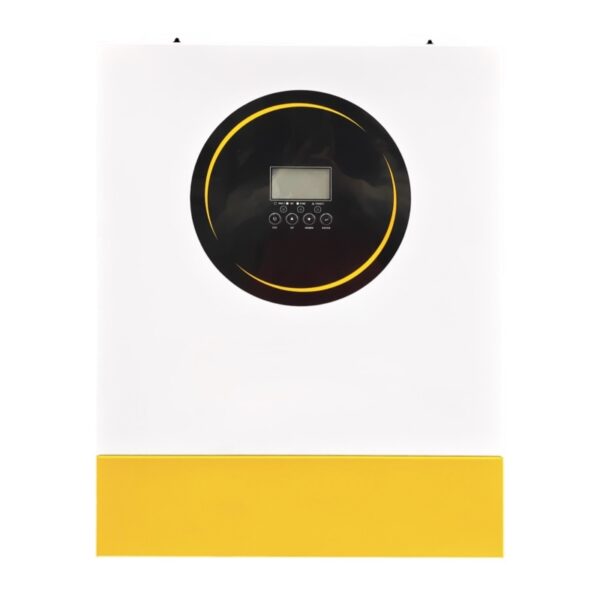

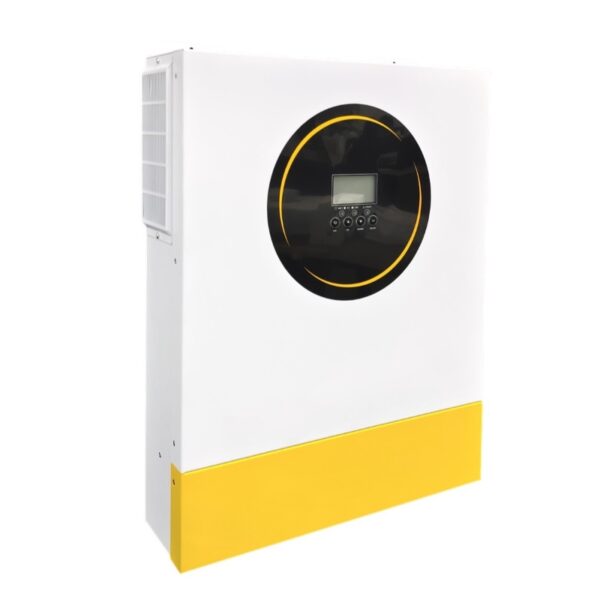

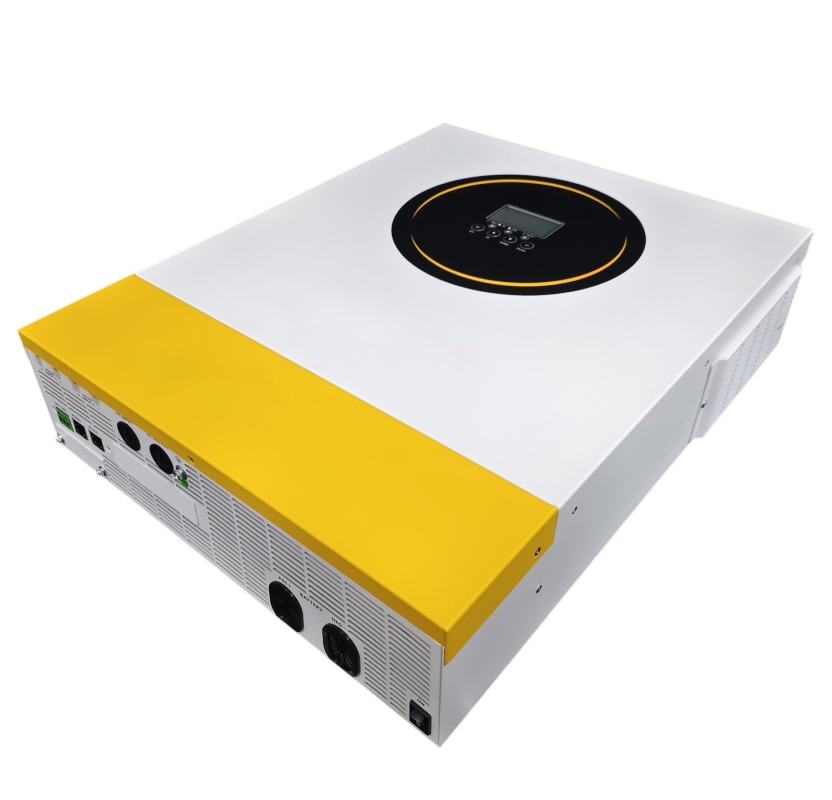

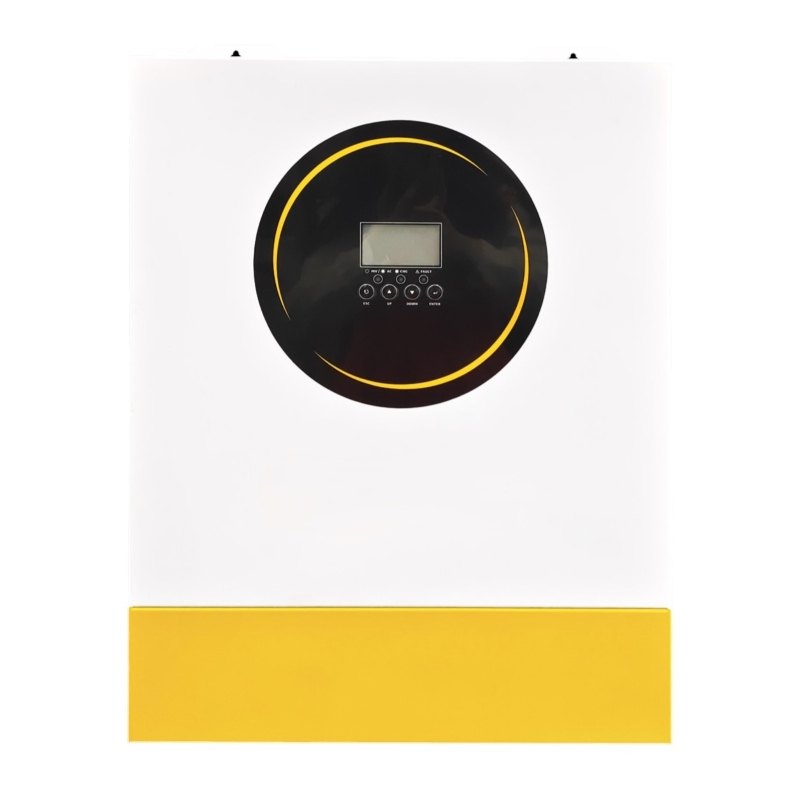

Solar Hybrid Inverter – EM Series

Model: EM

Solar Hybrid Inverter – EM Series is designed for superior performance with guaranteed price, quality, and service.

As a leading manufacturer, we export globally, earning the trust of distributors and dealers worldwide. Our inverters ensure high efficiency and reliability for various energy solutions.

EM11000-48PL Solar Hybrid Inverter – 11kW, 48V, MPPT 160A, Pure Sine Wave
High-Capacity Hybrid Inverter for Off-Grid, Backup & Solar Energy Storage Systems

The EM11000-48PL 11kW Solar Hybrid Inverter is a professional-grade power management solution designed for high-demand solar energy applications. Combining robust 11kW pure sine wave output, a 160A MPPT solar controller, and full battery or battery-free operation, this inverter is ideal for residential estates, commercial facilities, and remote off-grid systems requiring uninterrupted, intelligent power control.

Built for global compatibility and designed to integrate smoothly with LiFePO₄ batteries via RS232/RS485/BMS, the EM11000-48PL supports flexible configurations that meet the needs of modern solar professionals.

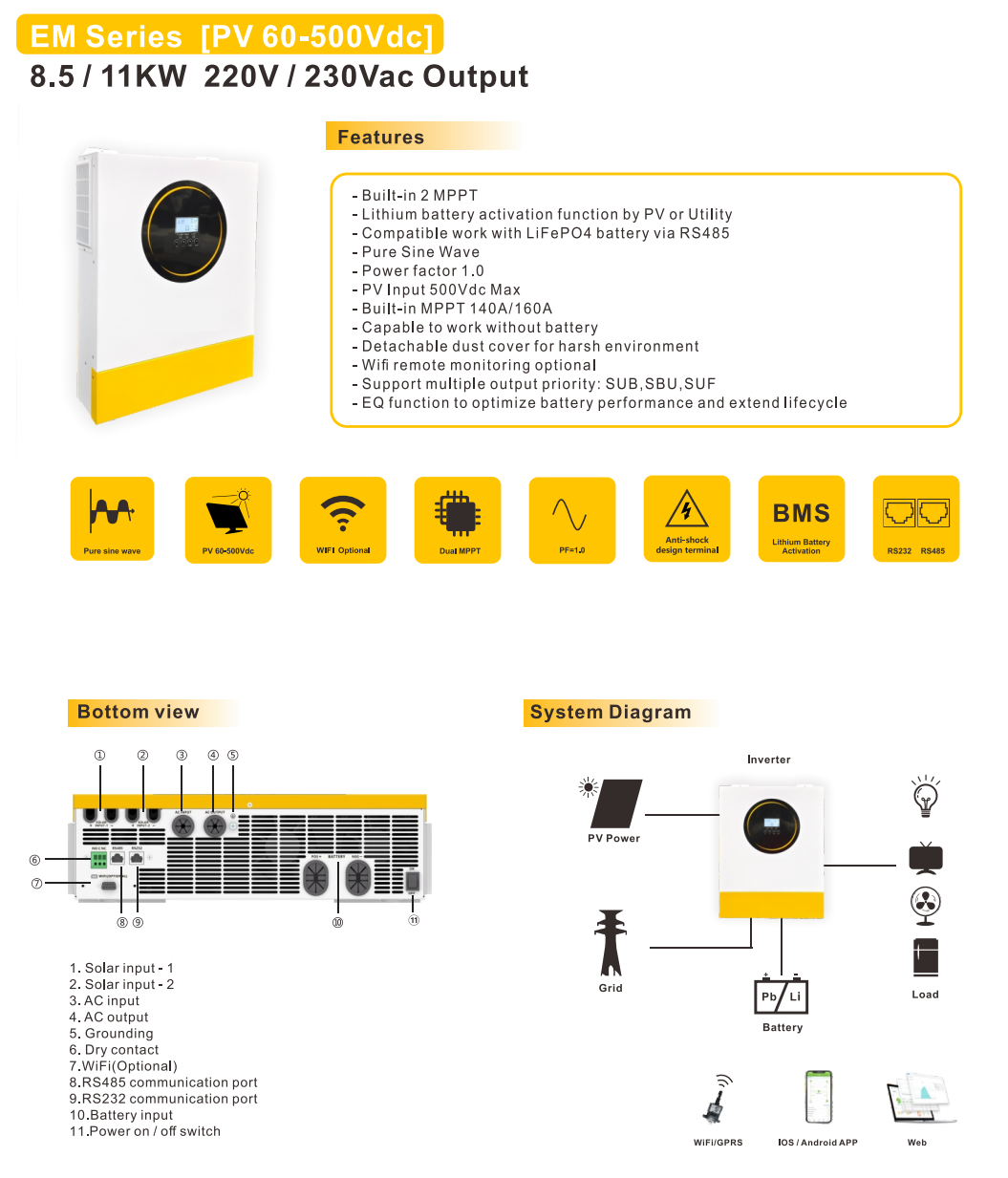

-Built-in 2 MPPT

-Lithium battery activation function by PV or Utility

-Compatible work with LiFePO4 battery via RS485

-Pure Sine Wave

-Power factor 1.0

-PV Input 500Vdc Max

-Built-in MPPT140A/160A

-Capable to work without battery

-Detachable dust cover for harsh environment-Wifi remote monitoring optional

-Support multiple output priority: SUB, SBU, SUF

-EQ function to optimize battery performance and extend lifecycle

Solar Hybrid Inverter - EM Series

Key Technical Features:

  • Rated Output Power: 11kW, 230VAC, pure sine wave

  • Battery System: 48VDC; compatible with lithium (LiFePO₄) and lead-acid batteries

  • MPPT Solar Charger: 160A, wide PV input voltage range (60V–500V)

  • Maximum PV Power: 11,000W

  • Maximum Solar Input Current: 18A × 2 (Dual MPPT)

  • Built-in AC Charger: 120A for efficient grid or generator charging

  • Communication Interfaces: RS232, RS485, and Dry Contact – supports BMS communication with LiFePO₄ batteries

  • Battery-Free Capability: Supports operation without battery for grid-tied or emergency backup use

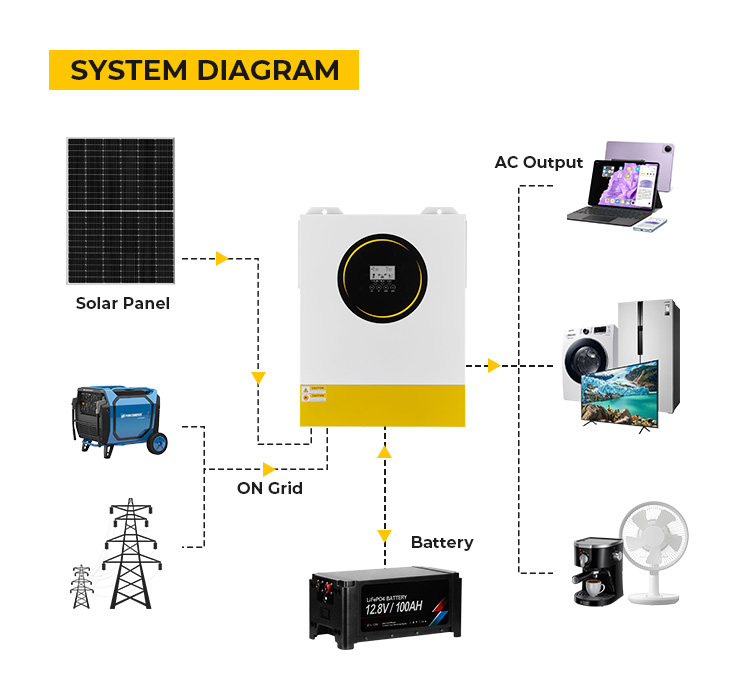

Ideal Applications:

  • High-capacity off-grid and hybrid solar systems

  • Solar-powered backup systems for homes or businesses

  • Solar-plus-storage systems in areas with unstable grids

  • Microgrids, remote stations, and energy access projects

  • Solar equipment distributors, EPC firms, and system integrators

Engineered for Global Solar Demands

The EM11000-48PL Hybrid Inverter is a scalable and versatile energy conversion platform designed to meet the highest standards of performance, flexibility, and reliability across international solar projects.

OEM/ODM services available for international B2B partners. Reach out today to add the EM11000-48PL to your solar product portfolio and power your market with next-generation hybrid energy technology.

Model EM8500-48L EM11000-48L
Capacity 8.5KVA / 8.5KW 11KVA / 11KW
Parallel Capability NO
Lithium Battery Activation Yes (By PV only)
Lithium Battery Communication YES (RS485)
Input
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency 50/60 Hz (Auto Sensing)
Output
Nominal Voltage 220/230VAC ±5%
Surge Power 17000VA 22000VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV) 96%
   Peak Efficiency (Battery to INV) 93%
Overload Protection 5s@>=140% Load; 10s@110%~140% Load
Crest Factor 3:01
Admissible Power Factor 0.6~1 (Inductive or Capactive)
Battery
Battery Voltage 48VDC 48VDC
Floating Charge Voltage 54VDC 54VDC
OverCharge Protection 63VDC 63VDC
Charge Method CC / CV
Solar Charger & AC Charger
Solar Charger Type MPPT
Max. PV Array Power 5000W*2 5500W*2
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC ~ 500VDC
Max. Solar Input Current 18A*2 18A*2
Max. Solar Charge Current 140A 160A
Max. AC Charge Current 120A 120A
Max. Charge Current 100A 160A
Physical
Dimensions 540*415*122 mm 540*415*122 mm
Package Dimensions 637*495*214 mm 637*495*214 mm
Net Weight 17 KGS 17 KGS
Communication Interface RS232 + RS485
Environment
Operating Temperature Range -10 ~ 50ºC
Storage Temperature -15 ~ 50ºC
Humidity 5% to 95% Relative Humidity (Non-Condensing)
