Solar Hybrid Inverter – M Series.
Supports up to 12 units in parallel, enabling both single-phase and three-phase output for versatile applications.
As a trusted manufacturer, our products are exported worldwide and highly favored by distributors and dealers for their stability, efficiency, and superior performance.
class=”yoast-text-mark”>class=”yoast-text-mark”>class=”yoast-text-mark”>class=”” data-start=”350″ data-end=”483″>data-end=”415″>M6200-48PL Solar Hybrid Inverter – 6.2kW, 48V, Parallel Ready</strong><br data-start=”415″ data-end=”418″ />Smart Energy Management for Off-Grid and Hybrid Solar Systems

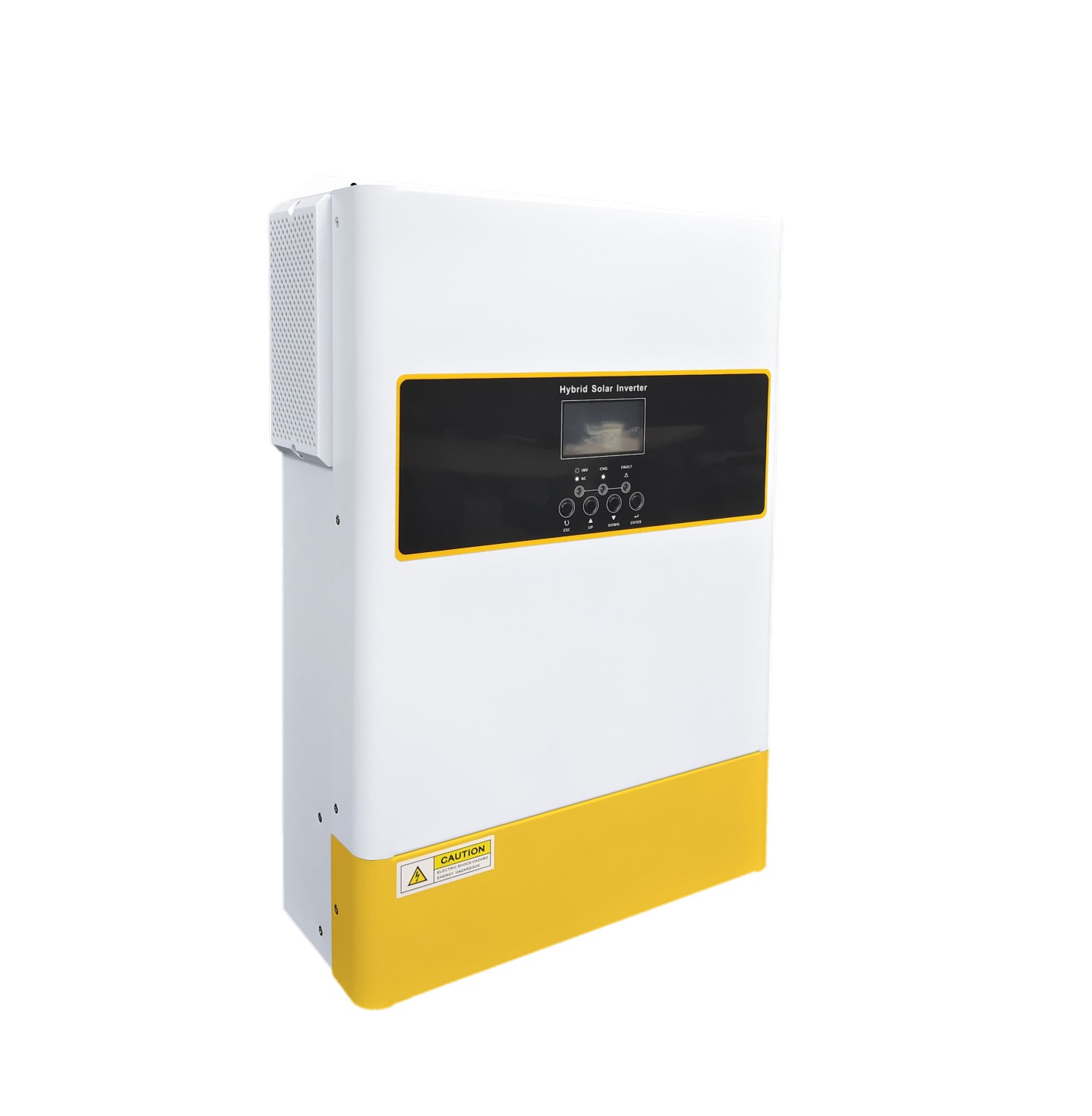

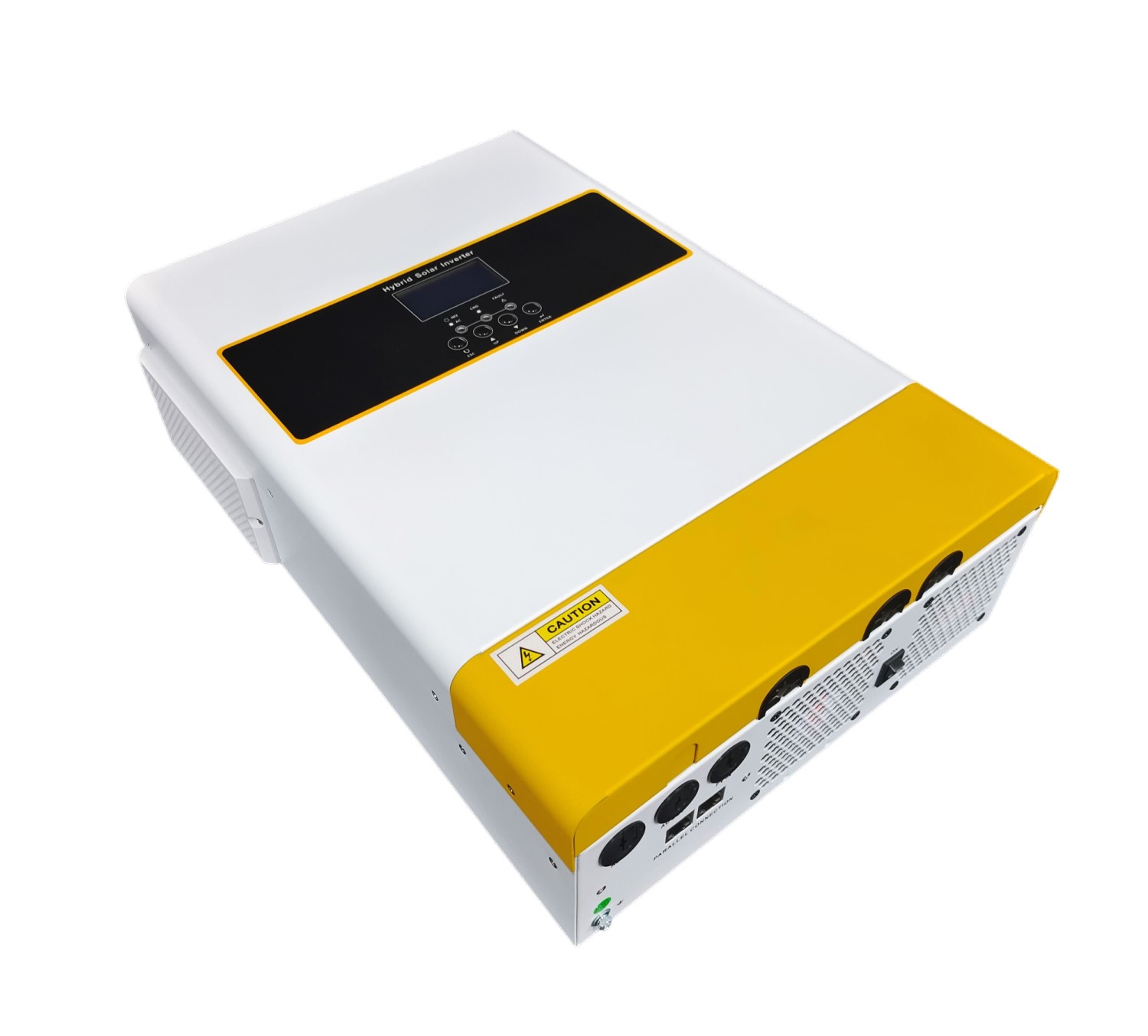

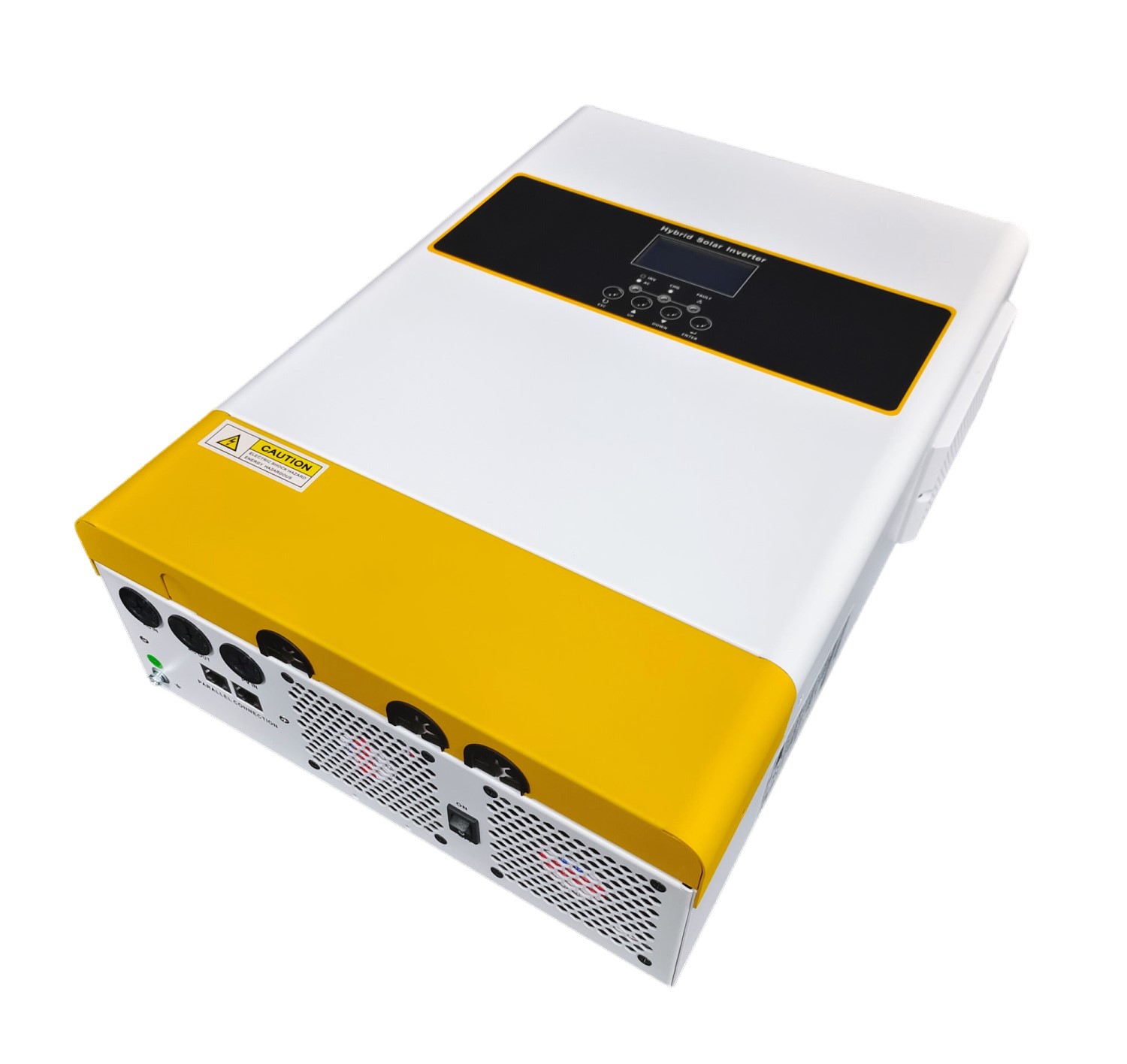

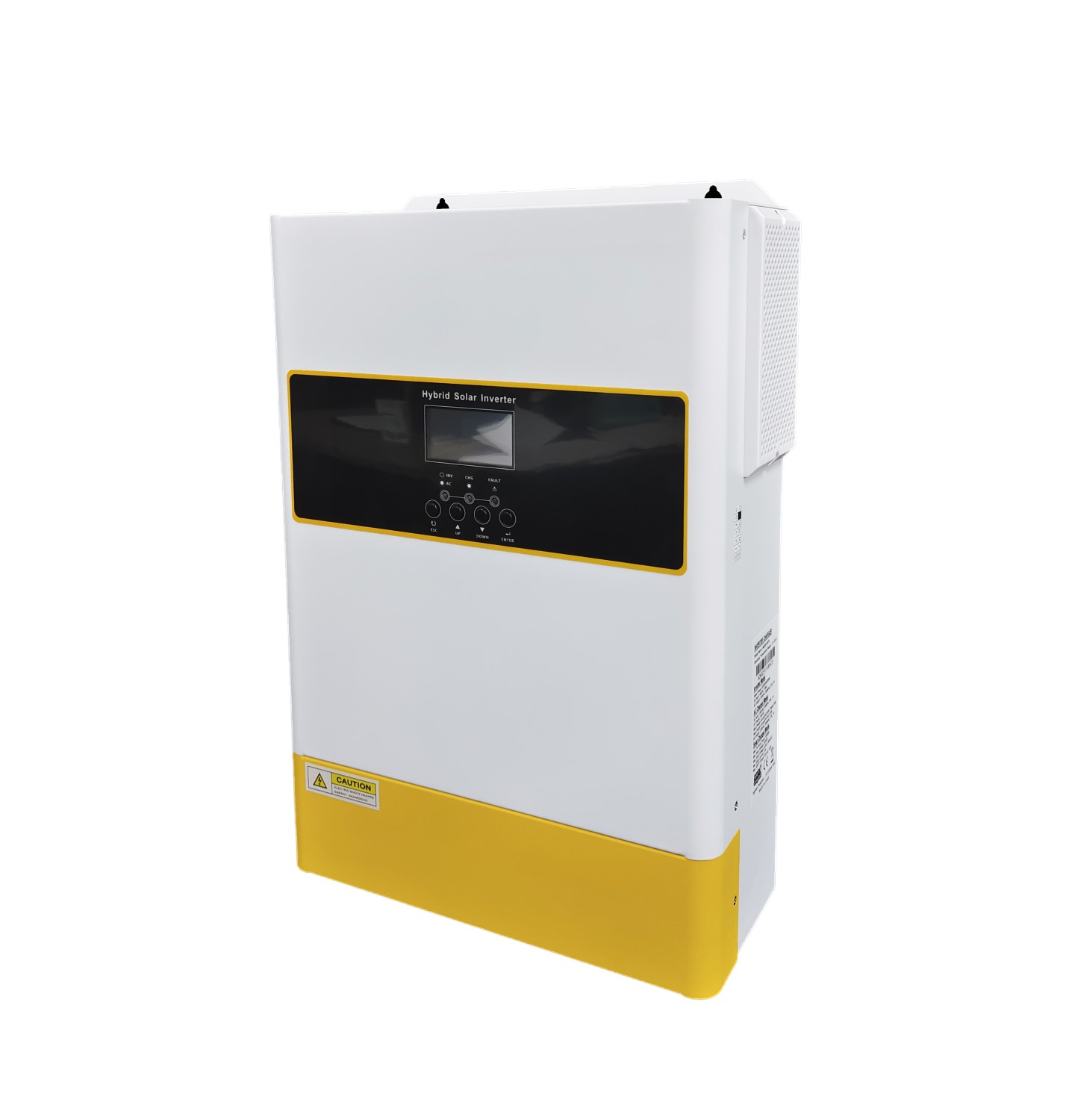

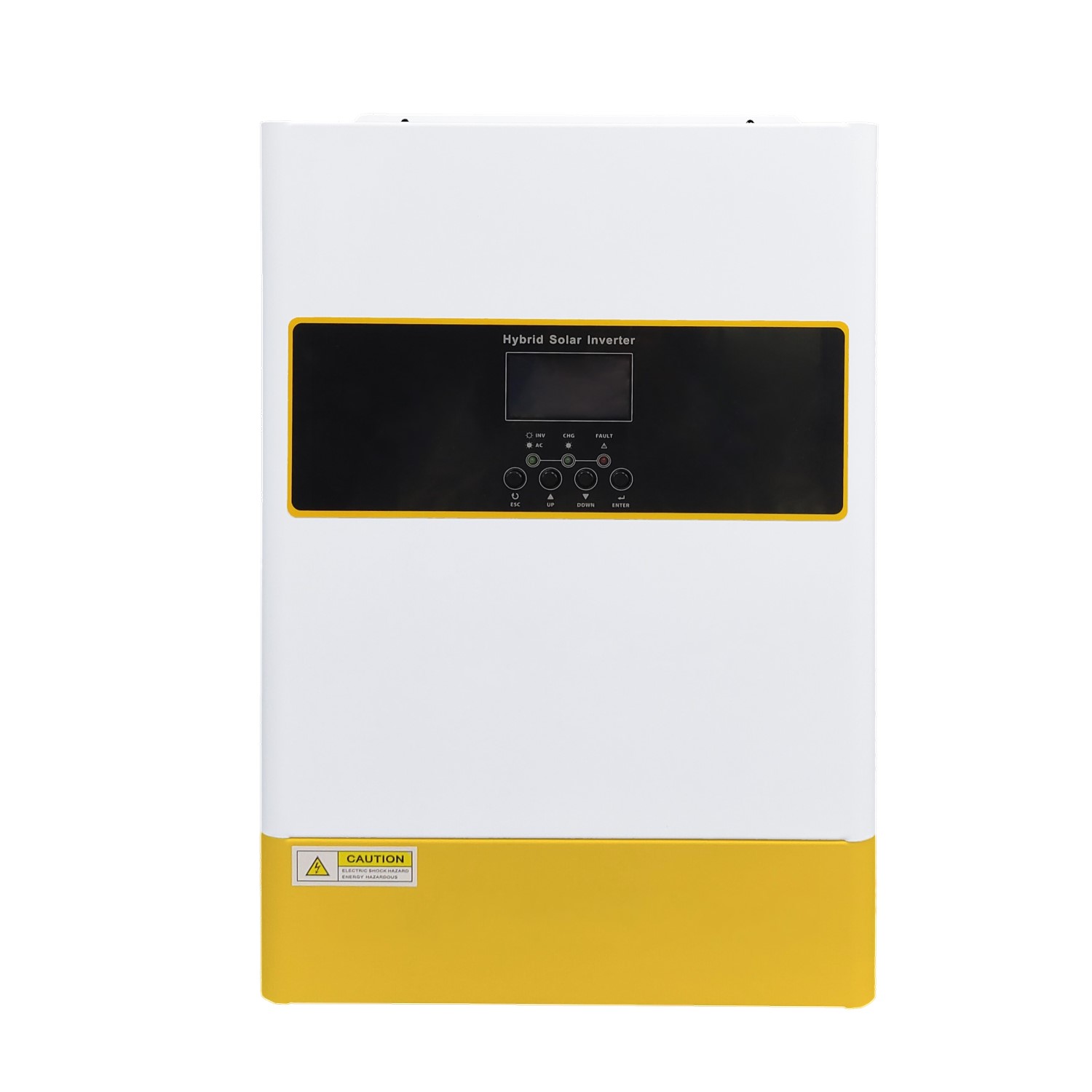

art=”485″ data-end=”823″>The M6200-48PL 6.2kW Solar Hybrid Inverter is a high-performance, multi-functional inverter designed for demanding residential and light commercial solar power applications. This hybrid inverter seamlessly integrates solar, grid, and battery power, offering reliable and flexible energy management for off-grid and hybrid systems.
With support for parallel operation (up to 6 units) and intelligent load prioritization, the M6200-48PL delivers enhanced scalability and system reliability—ideal for global B2B clients looking for robust solar power solutions.
-Compatible work with lifepo4 battery

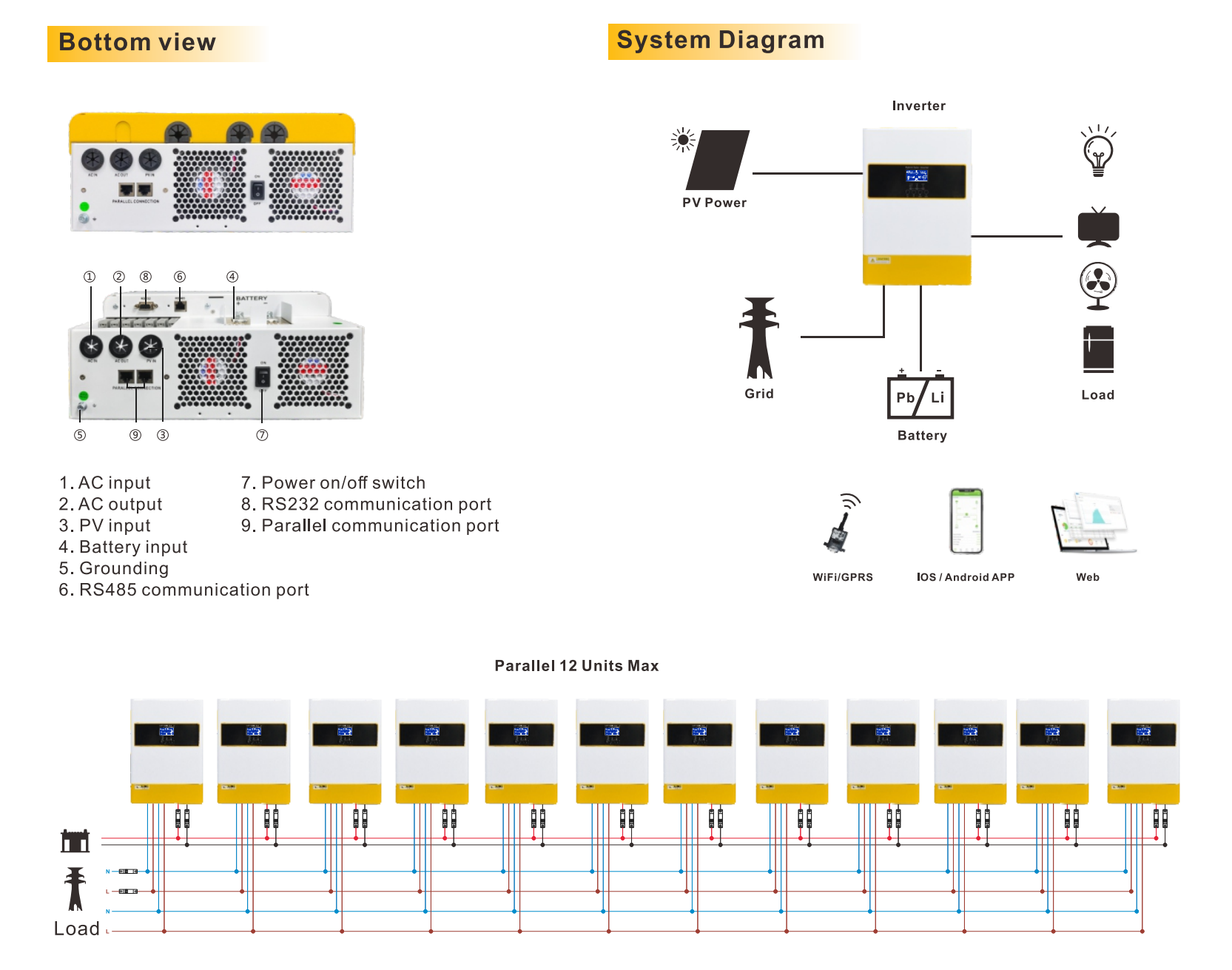

-Parallel operation upto12 units in 1phase or 3phase
-Direct Plug WiFi Dongle Supported
-Pure sine wave
-Power factor 1.0
-PV input 500Vdc Max
-Built-in MPPT 120A
-Capable to work without battery
-Detachable dust cover for harsh environment
-WiFi remote monitoring optional
-Support multiple output priority: SUB, SBU, SUF
-EQ function to optimize battery performance and extend lifecycle
Power Output: 6.2kW pure sine wave inverter with high conversion efficiency
Battery Compatibility: 48VDC system, compatible with lithium and lead-acid batteries
Solar Input Capacity: Supports up to 6000W PV with dual MPPT for optimized solar tracking
Parallel Function: Scalable design allows connection of up to 6 units in parallel
Dual Output Design: AC output for essential and non-essential loads
Smart Monitoring: LCD display, optional WiFi/APP remote monitoring, RS485/BMS communication
Safety Protection: Overload, short circuit, reverse polarity, and over-temperature protection
Flexible Operation Modes: Off-grid, grid-assist, and hybrid modes supported
Residential and light commercial solar+storage systems
Off-grid homes and farms
Backup power systems for critical loads
Solar power projects in remote or unstable-grid regions
Solar equipment distributors and professional installers
The M6200-48PL is built to meet international standards with durable components and smart features—making it an ideal hybrid inverter for distributors, integrators, and energy solution providers worldwide.
OEM/ODM services available for volume buyers. Contact us today to scale your solar business with powerful, smart hybrid inverters.
<table width=”891″ data-cke-widget-data=”%7B%22classes%22%3Anull%7D” data-cke-widget-upcasted=”1″ data-cke-widget-keep-attr=”0″ data-widget=”micTable” data-cke-table-faked-selection-table=””>ModelM6200-48PLCapacity6.2KVA/6.2KW
Parallel CapabilityYES, 12 UnitsLithium Battery ActivationYes (By PV or Utility)Lithium Battery CommunicationYES (RS485)InputNominal Voltage230VACAcceptable Voltage Range170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)Frequency50/60 Hz (Auto Sensing)OutputNominal Voltage220/230VAC ±5%Surge Power12400VAFrequency50/60HzWaveformPure Sine WaveTransfer Time10ms (For Personal Computer); 20ms (For Home Appliances)Peak Efficiency94%Overload Protection5s@>=140% Load; 10s@110%~140% LoadCrest Factor3:01Admissible Power Factor0.6~1 (Inductive or Capactive)BatteryBattery Voltage48VDCFloating Charge Voltage54VDCOverCharge Protection63VDCCharge MethodCC / CVSolar Charger & AC ChargerSolar Charger TypeMPPTMax. PV Array Power6500WMax. PV Array Open Circuit Voltage500VDCPV Array MPPT Voltage Range60VDC ~ 500VDCMax. Solar Input Current27AMax. Solar Charge Current120AMax. AC Charge Current80AMax. Charge Current120APhysicalDimensions450*300*130 mmPackage Dimensions540*390*210 mmNet Weight12 KGSCommunication InterfaceRS232 / RS485EnvironmentOperating Temperature Range-10 ~ 50ºCStorage Temperature-15 ~ 50ºCHumidity5% to 95% Relative Humidity (Non-Condensing)
