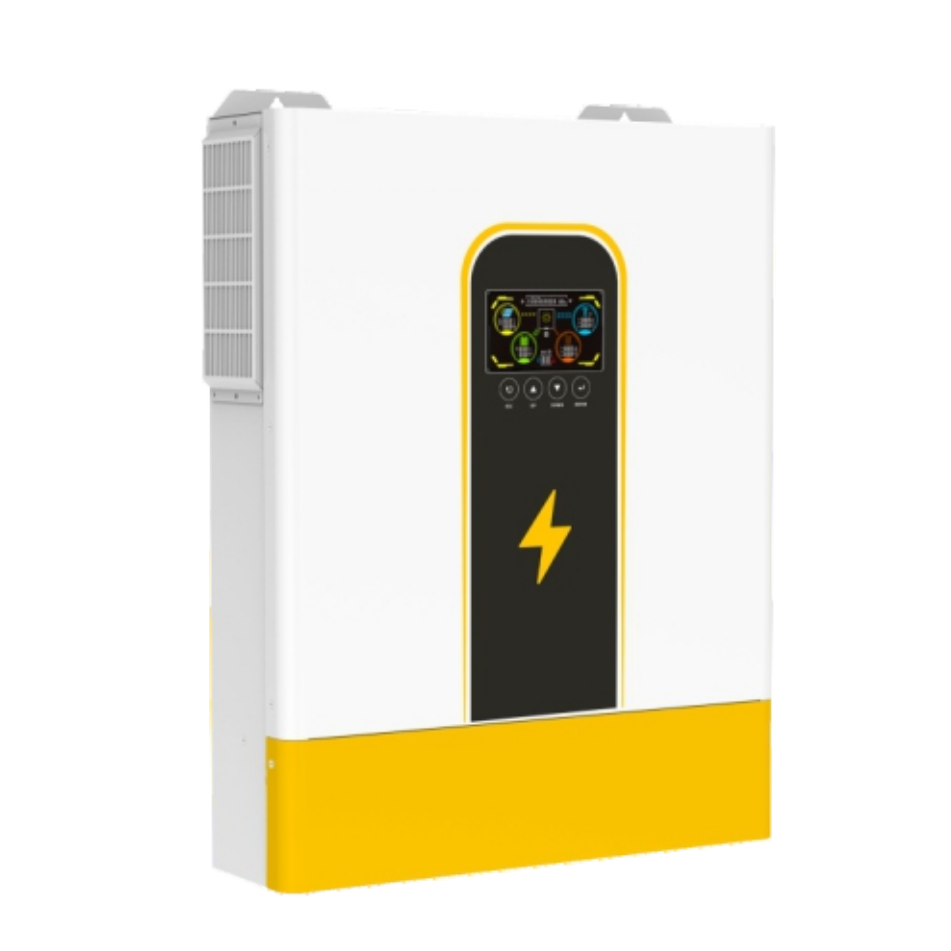

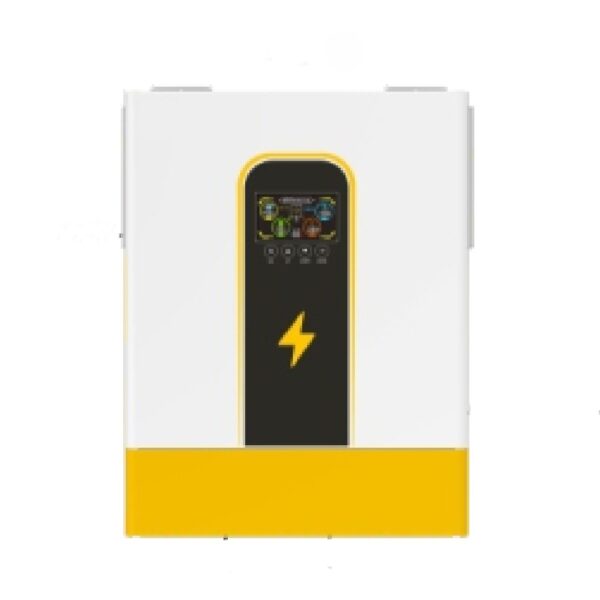

Solar Hybrid Inverter M Series (Parallel)

Model: M11000

Solar Hybrid Inverter – M Series.

Supports up to 6 units in parallel, enabling both single-phase and three-phase output for versatile applications.

As a trusted manufacturer, our products are exported worldwide and highly favored by distributors and dealers.

It’s stability, efficiency, and superior performance.

M11000-48PL Solar Hybrid Inverter – 11kW, 48V, MPPT 160A, Parallel Ready
High-Capacity, Smart Energy Inverter for Off-Grid and Hybrid Solar Power Systems

The M11000-48PL 11kW Solar Hybrid Inverter is a powerful and intelligent energy management system designed for large residential, commercial, and industrial solar applications. It integrates solar, battery, and grid power sources, offering reliable and scalable hybrid energy solutions. With support for up to 6 units in parallel, advanced 160A MPPT technology, and battery-optional operation, this inverter is built for performance, flexibility, and long-term energy independence.

Ideal for demanding solar environments, the M11000-48PL delivers high output with seamless BMS communication, smart load control, and pure sine wave performance.

Key Features:

  • Rated Output: 11kW pure sine wave inverter, 230VAC

  • Battery System: 48VDC compatible with lithium (LiFePO₄) and lead-acid batteries

  • AC Charger: Built-in 120A AC charger for grid-assisted or generator charging

  • MPPT Solar Charger: 160A controller with wide PV input voltage (60–500V)

  • Max PV Power: 10,000W total solar input

  • Max Solar Current: 18A × 2 MPPT inputs for efficient solar harvesting

  • Battery-Free Operation: Fully supports operation without batteries

  • Communication & Control: RS232 + RS485 + DRY CONTACT; BMS-compatible for smart lithium battery integration

  • Parallel Function: Supports parallel operation of up to 6 units for higher capacity needs

Ideal For:

  • Large off-grid or hybrid solar energy systems

  • Small commercial and industrial solar+storage setups

  • Backup systems for critical infrastructure

  • Microgrids and remote-area power supply

  • B2B distributors, EPCs, and OEM system integrators

Built for Scalable Global Solar Projects

The M11000-48PL Hybrid Inverter offers a powerful combination of flexibility, scalability, and smart control—perfect for growing energy demands and professional solar deployments around the world.

OEM/ODM customization available for global partners and bulk orders. Contact us today to deliver reliable, high-capacity hybrid power solutions to your market.

<td width=”538″>8.5kVA/8.5kW11kVA/11kW<tr>Twin AAC Output FunctionYesYes

Model M8500T-48PL M11000T-48PL
Capacity
Max. PV Input Power 10kW 11kW
Max. Main Output Power 8,5kVA/8.5kW 11kVA/11kW
Max. Second Output Power 5kVA/5kW 5kVA/5kW
Max. Total Output Power 8,5kVA/8.5kW 11kVA/11kW
Parallel Function Yes, 6 Units Yes, 6 Units
Lithium Battery Communication YES (RS485) YES (RS485)
Lithium Battery Activation YES( By PV or Utility) YES( By PV or Utility)
Input
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency 50/60 Hz (Auto Sensing)
Output
Nominal Voltage 220/230VAC ±5%
Surge Power 17000VA 22000VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency 94%
Overload Protection 5s@>=140% Load; 10s@110%~140% Load
Crest Factor 3:01
Admissible Power Factor 0.6~1 (Inductive or Capactive)
Battery
Battery Voltage 48VDC 48VDC
Floating Charge Voltage 54VDC 54VDC
OverCharge Protection 63VDC 63VDC
Charge Method CC / CV CC / CV
Solar Charger & AC Charger
Solar Charger Type MPPT
Max. PV Array Power 5000W*2
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60VDC ~ 500VDC
Max. Solar Input Current 18A*2
Max. Solar Charge Current 140A 160A
Max. AC Charge Current 120A 120A
Max. Charge Current 140A 160A
Physical
Dimensions 540*415*122 mm
Package Dimensions
Net Weight 14.5 KGS
Communication Interface RS232 / RS485 /Dry-contact
Environment
Operating Temperature Range  -10 ~ 55ºC
Storage Temperature  -15 ~ 60ºC
Humidity 5% to 95% Relative Humidity (Non-Condensing)
