Solar Hybrid Inverter – SY Series – 1kW / 1.5kW

Model: SY

Solar Hybrid Inverter – SY Series is designed for superior performance with guaranteed price, quality, and service.

As a leading manufacturer, we export globally, earning the trust of distributors and dealers worldwide. Our inverters ensure high efficiency and reliability for various energy solutions.

1.0KW 12V Solar Hybrid Inverter | Pure Sine Wave | 40A MPPT | WiFi/GPRS Monitoring

The SY-1.0K-12V is a high-efficiency 1.0KW 12V solar hybrid inverter designed for reliable off-grid and backup power solutions. Combining a pure sine wave inverter (230VAC), a 40A MPPT solar charge controller, and a 40A AC charger, this all-in-one system ensures seamless power conversion for home, cabin, RV, and small business applications. With WiFi & GPRS remote monitoring (iOS/Android compatible), you can manage your solar power system anytime, anywhere.

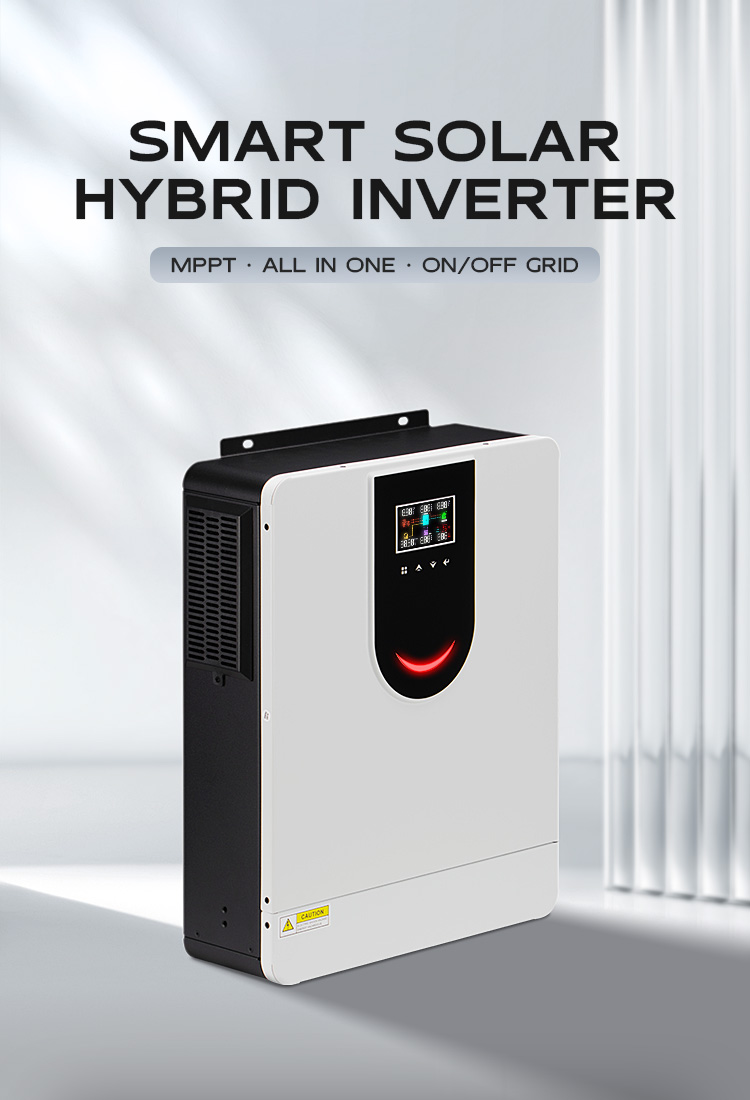

Solar Hybrid Inverter - SY Series

Key Features

✅ 1.0KW Pure Sine Wave Output – Delivers clean, stable 230V AC power for sensitive electronics.
✅ 40A MPPT Solar Charge Controller – Maximizes solar energy harvest with 98% efficiency (Voc 20-150V).
✅ 600W PV Input Capacity – Supports high solar panel compatibility for optimal energy generation.
✅ 40A AC Charger – Fast battery charging from grid/generator when solar is insufficient.
✅ 12V Battery Voltage – Compatible with lead-acid and lithium batteries (user-configurable).
✅ Smart Remote Monitoring – Real-time tracking via WiFi & GPRS (iOS & Android apps).
✅ All-in-One Design – Combines inverter, solar charger, and AC charger in a compact unit.

Ideal for Commercial & Off-Grid Applications

✔ Remote Cabins & Homes – Reliable backup power during outages.
✔ RVs & Boats – Efficient energy management for mobile living.
✔ Telecom Stations & Small Businesses – Uninterrupted power for critical loads.
✔ Solar Street Lighting & Off-Grid Systems – Sustainable energy solutions.

Why Choose Our 1.0KW Hybrid Inverter?

🔹 High Efficiency MPPT – Extracts maximum solar power even in low-light conditions.
🔹 Seamless Switching – Automatic transfer between solar, battery, and grid power.
🔹 User-Friendly App – Monitor energy production, battery status, and consumption remotely.
🔹 Durable & Reliable – Built with industrial-grade components for long-term performance.

Order Now for Your Business Needs!

Upgrade to a smarter, greener power solution with the SY-1.0K-12V hybrid inverter. Perfect for B2B buyers, solar distributors, and off-grid installers looking for a cost-effective, high-performance system.

Contact us today for bulk pricing and OEM/ODM options!



Model SY-1.0K-12V SY-1.5K-24V
Capacity 1000W / 1000VA 1500W / 1500VA
AC Input
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency 50/60 Hz (Auto Sensing)
AC Output
Nominal Voltage 230VAC ±5%
Surge Power 2000VA 3000VA
Waveform Pure Sine Wave
Transfer Time 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV) 98%
   Peak Efficiency (Battery to INV) 94%
Battery
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
OverCharge Protection 16VDC 32VDC
Solar Charger & AC Charger
Solar Charger Type MPPT
Max. PV Array Power 600W 1200W
Max. PV Array Open Circuit Voltage 150VDC
PV Array MPPT Voltage Range 20VDC ~ 150VDC 30VDC ~ 150VDC
Max. Solar Input Current 40A
Max. Solar Charge Current 40A
Max. AC Charge Current 80A
Physical
Dimensions 290*240*90mm
Package Dimensions 340*295*145 mm
Net Weight 3.5 KGS 3.6 KGS
Gross Weight 4 KGS 4.2 KGS
Environment
Operating Temperature Range -10 ~ 50ºC
Storage Temperature -15 ~ 50ºC
Humidity 5% to 95% Relative Humidity (Non-Condensing)
