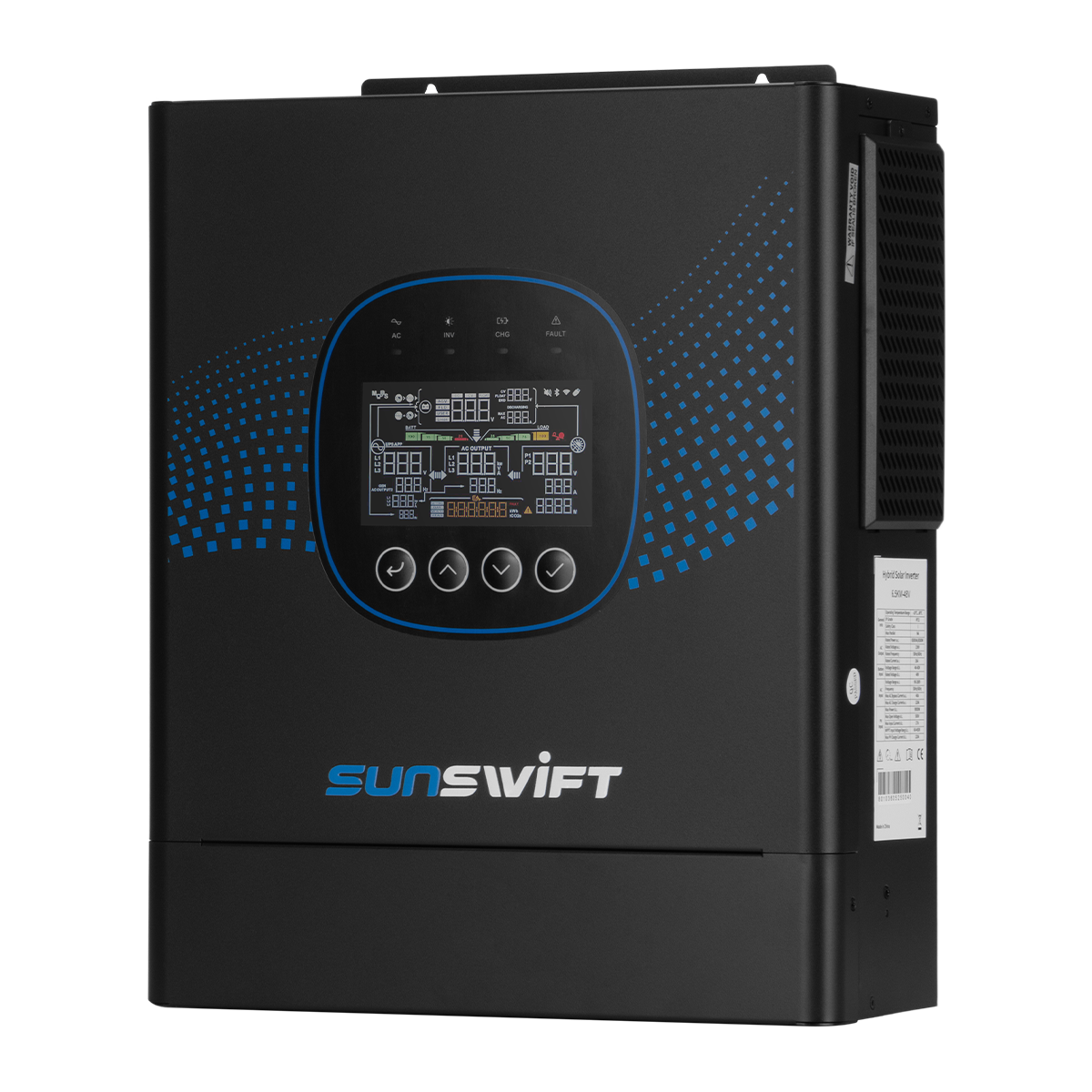

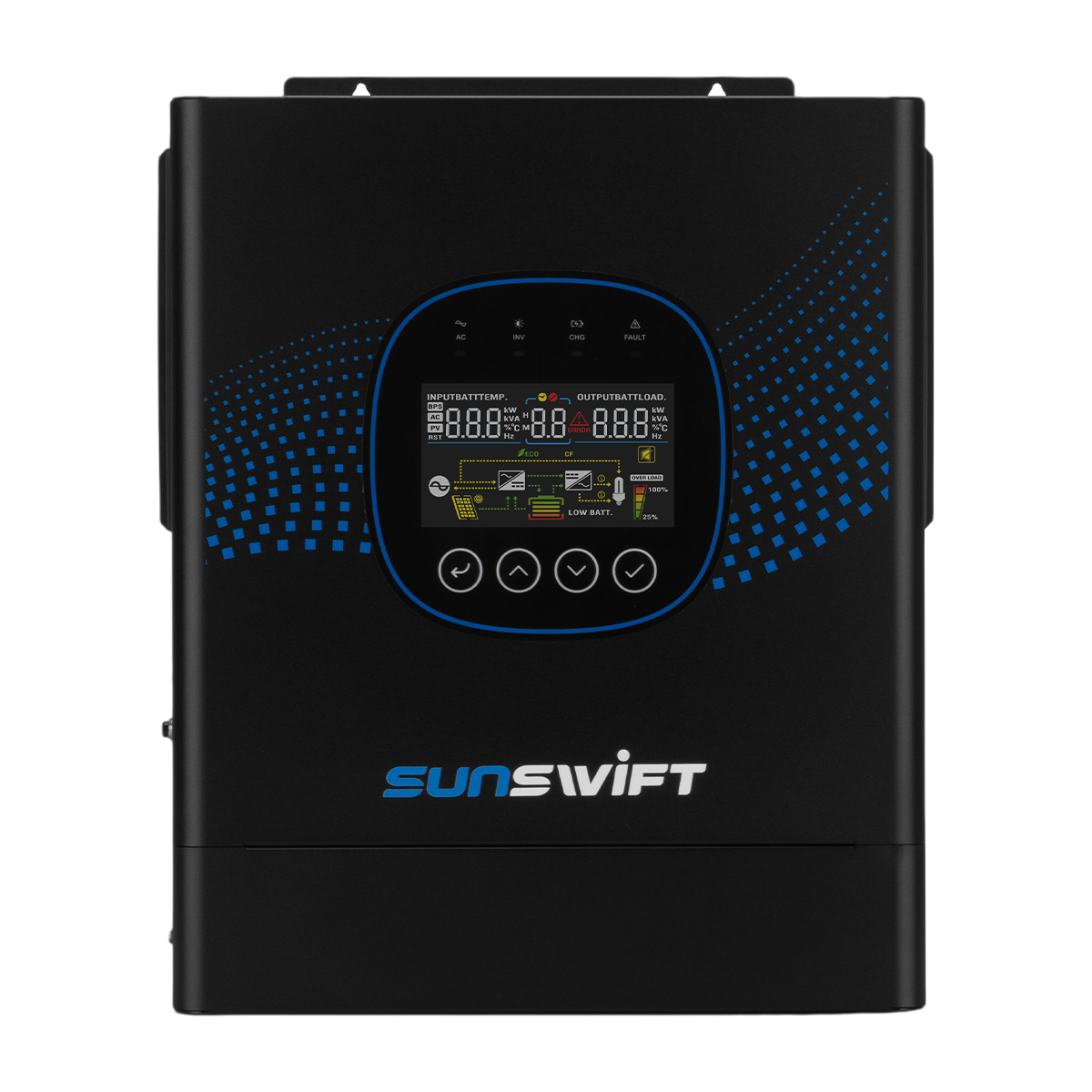

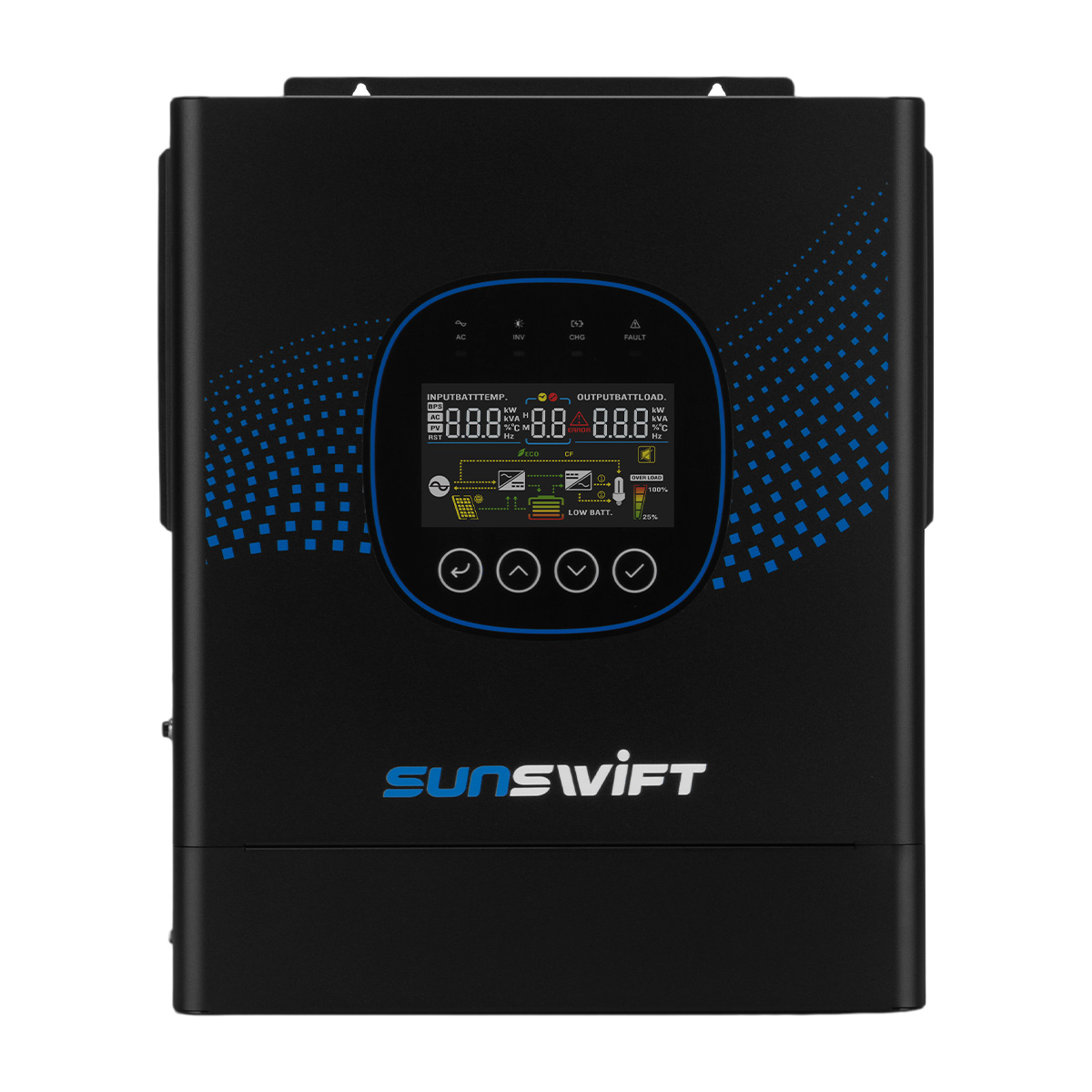

Solar Hybrid Inverter – SMP Series is designed for superior performance with guaranteed price, quality, and service.
As a leading manufacturer, we export globally, earning the trust of distributors and dealers worldwide. Our inverters ensure high efficiency and reliability for various energy solutions. The product’s appearance is an original design exclusive to our brand, featuring a novel and unique style.
| Model | SMP-6.5KW/48V |
| AC Input | |
| Nominal Voltage | 208 / 220 / 230 / 240 VAC; L+N+E |
| Acceptable Voltage Range | 90-280VAC（normal mode）；170-280VAC（UPS mode） |
| Frequency | 50/60 Hz（Auto Sensing） |
| AC Output | |
| Rated Capacity | 6.5kW |
| Surge Power | 12000VA |
| Voltage | 208 / 220 / 230 / 240 VAC; |
| Power Fact | 1 |
| Frequency | 50/60Hz |
| Swith Time | 10ms (normal mode); 10ms (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s@102%~110%load；10s@110%~130%load；3s@130%~150%load；0.2s@>150%load |
| Max. Efficiency (Battery Mode) | 94%@48VDC |
| Parallel Capacity | NA |
| Charger ( PV / AC ) | |
| Solar Charge Type | MPPT |
| Max PV Input Current / Power | 27A / 9000W |
| MPPT Range@Operating Voltage | 60~450VDC |
| Max PV Open Circuit Voltage | 500VDC |
| Max PV Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Charge Current (PV+AC) | 120A |
| Battery | |
| Rated Voltage | 48VDC |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | RS485/RS232/USB |
| Monitoring | WIFI （Optional） |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10～60℃ |
| Relative Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Net Weight | 8.4kg |
| Dimensions | 410*336*115mm |
